P02E0



DTC P02E0

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC P02E0
- Diesel Intake Air (IA) Flow Control Circuit

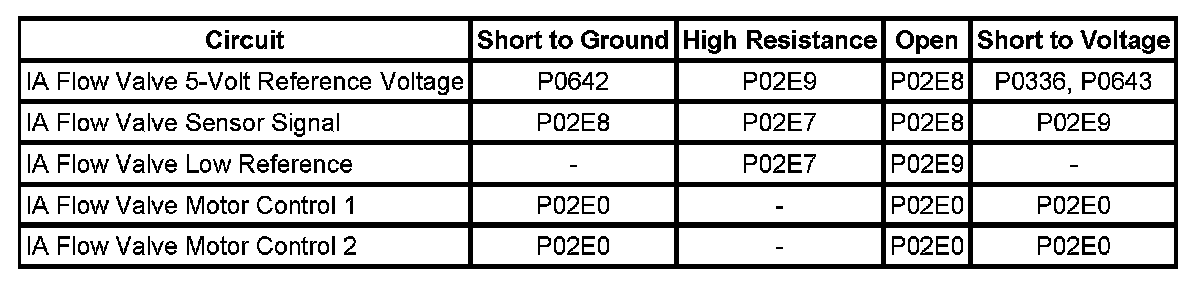

Diagnostic Fault Information






Circuit/System Description

The intake air (IA) valve is a normally open valve and is only operated during a DPF regeneration. The position of the IA valve is controlled by the engine control module (ECM). The IA valve system uses a position sensor located within the valve assembly to monitor the position of the valve. The position sensor has the following circuits:

* 5-volt reference circuit
* Low reference circuit
* Signal circuit

The IA valve uses a motor to move the valve to a closed position and spring tension returns it to the open position. The motor has the following circuits:

* Motor control 1 circuit
* Motor control 2 circuit

Conditions for Running the DTC

* The ECM is powered up for more than 0.5 second.
* The IA valve duty cycle is greater than 10 percent.
* DTC P02E0 runs continuously.

Conditions for Setting the DTC

* The IA valve duty cycle is greater than 10 percent.
* The IA valve control circuit is less than 25 mA.

Action Taken When the DTC Sets

DTC P02E0 is a Type A DTC.

Conditions for Clearing the DTC

DTC P02E0 is a Type A DTC.

Circuit/System Verification

* Command the IA valve from 100 percent to 0 percent. The IAF Valve Commanded Position and the IAF Valve Position parameter should match.
* After the engine has been running, turn OFF the ignition. Observe the IA Valve Position parameter fluctuates between 0 percent and 100 percent several times.
* Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame Records data.

Circuit/System Testing

1. With the ignition OFF, disconnect the ECM and the IAF valve. Test the following circuits for a short to voltage, short to ground, or open/high resistance.

* AI Motor Control 1
* AI Motor Control 2

If a condition is found repair the affected circuit.

2. Connect the ECM. Ignition ON, and the IAF disconnected, measure for 12 volts between the following circuits and ground:

* AI Motor Control 1 terminal A
* AI Motor Control 2 terminal B

If voltage is less than 12 volts on either circuit, replace the ECM.
If the voltage is 12 volts on both circuits, replace the IAF valve.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

* Control Module References for ECM replacement, setup and programming. Programming and Relearning
* Intake Air Valve Replacement Verification Tests
