C0550

DTC C0550

Circuit Description

The electronic brake control module (EBCM) performs several self-tests for any internal problems which may affect proper operation.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC C0550 Electronic Control Unit (ECU) Performance

Conditions for Running the DTC

The ignition is ON.

Conditions for Setting the DTC

The EBCM detects an internal malfunction.

Action Taken When the DTC Sets

The following actions may occur:

^ The EBCM disables the ABS/dynamic rear proportion (DRP).
^ The ABS indicator turns ON.
^ The brake warning indicator turns ON.

Conditions for Clearing the DTC

Certain failures that may cause this DTC to set cannot be cleared. Other failures that may cause this DTC to set may be cleared, at least temporarily, by using the scan tool Clear DTCs function.

Diagnostic Aids

Replace the EBCM if this DTC continues to set intermittently.

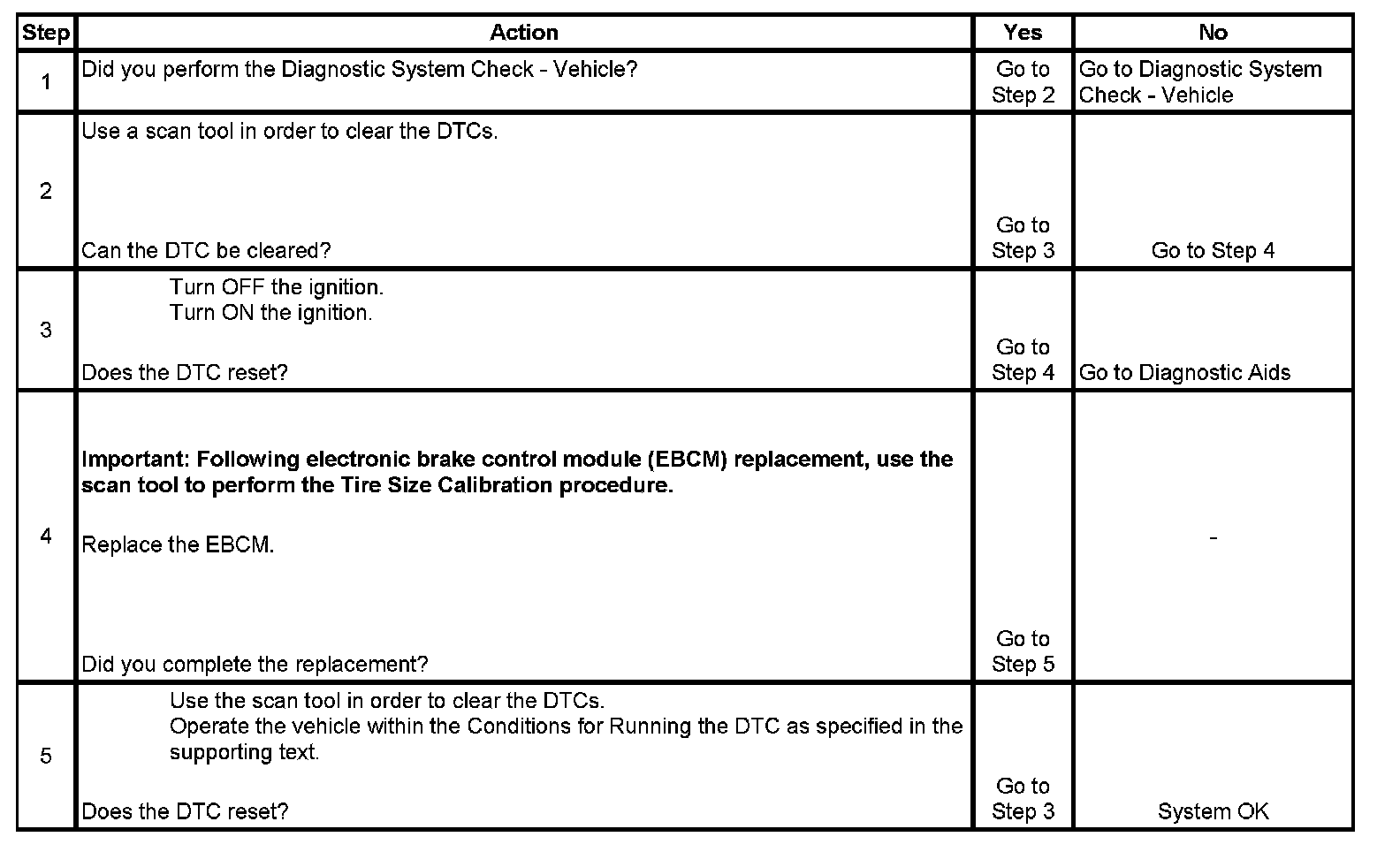

Step 1 - Step 5:
