DTC B3809

CIRCUIT DESCRIPTION
The body control module (BCM) internally grounds the door unlock relay control circuit for the door unlock relay when it receives a switched ground signal from any door lock switch or a keyless entry unlock transmission. When the BCM grounds the door unlock relay control circuit, the door unlock relay is energized and unlocks the doors.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC B3809 Passenger Door Unlock relay Circuit

CONDITIONS FOR RUNNING THE DTC
Battery voltage is between 916 volts.
The DTC will set if the door unlock function is active or inactive.

CONDITIONS FOR SETTING THE DTC
The DTC will set if the passenger door unlock relay control circuit is shorted to ground or open for more than one second.

ACTION TAKEN WHEN THE DTC SETS
If a short to ground is present on the door unlock relay control circuit, the door unlock relay will be energized and the door lock actuators will be held in the unlock position and will not lock.
If an open condition is present on the door unlock relay control circuit, the doors will lock but not unlock.

CONDITIONS FOR CLEARING THE DTC
When the fault is no longer present, the BCM changes the current DTC to a history DTC. The BCM will clear the history DTC after 50 faultfree ignition cycles.

DIAGNOSTIC AIDS
DTC B3809 could also set if the PASS UNLK relay winding is open.
If both DTC B3808 and B3809 are set as current, the battery positive voltage circuit or the Door LKS fuse could be open. If the Door LKS fuse is open, the cause is most likely one of the following:
- A short to ground in the relay battery positive voltage circuit
- A short to ground in the door lock/latch actuator lock or unlock control circuits

TEST DESCRIPTION

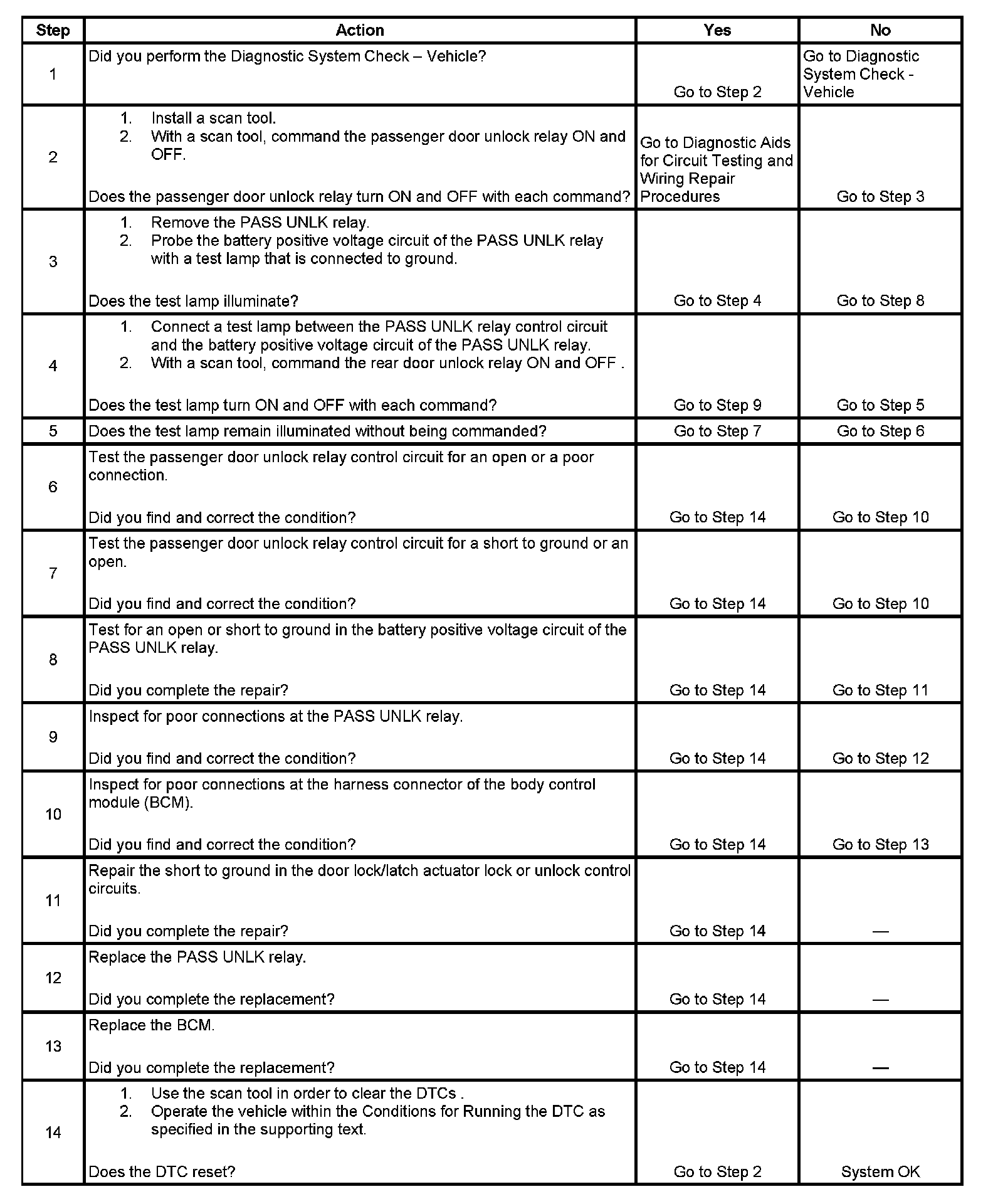

Step 1 - Step 14:




The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the rear door unlock relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. This step tests for voltage at the coil side of the PASS UNLK relay. The Door LKS fuse supplies power to the coil side of the PASS UNLK relay.
4. This step verifies that the BCM is providing ground to the PASS UNLK relay.
5. This step tests if ground is constantly being applied to the PASS UNLK relay.
