Control Module HVAC: Diagrams

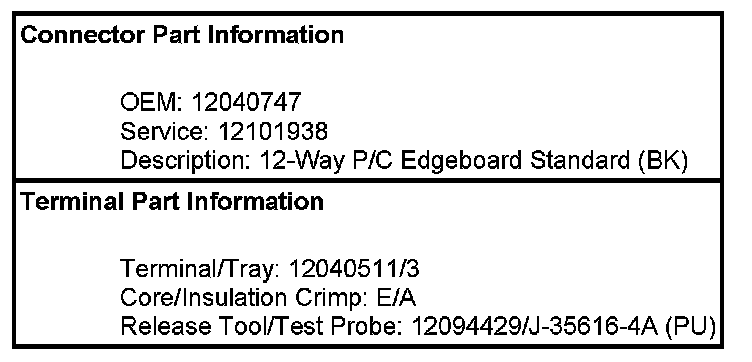

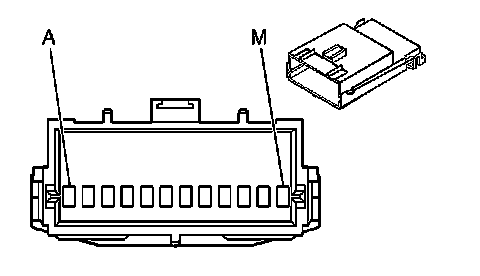

HVAC Connector End Views

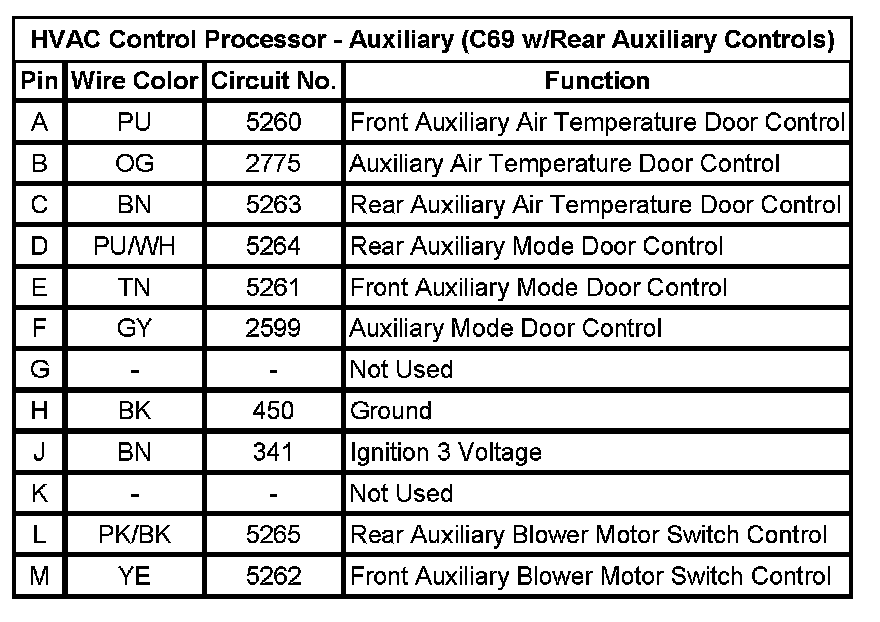

HVAC Control Processor - Auxiliary (C69 w/Rear Auxiliary Controls)
