Home >> Chevy Truck >> 2006 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Driver Seat Module (DSM)

Driver Seat Module (DSM)

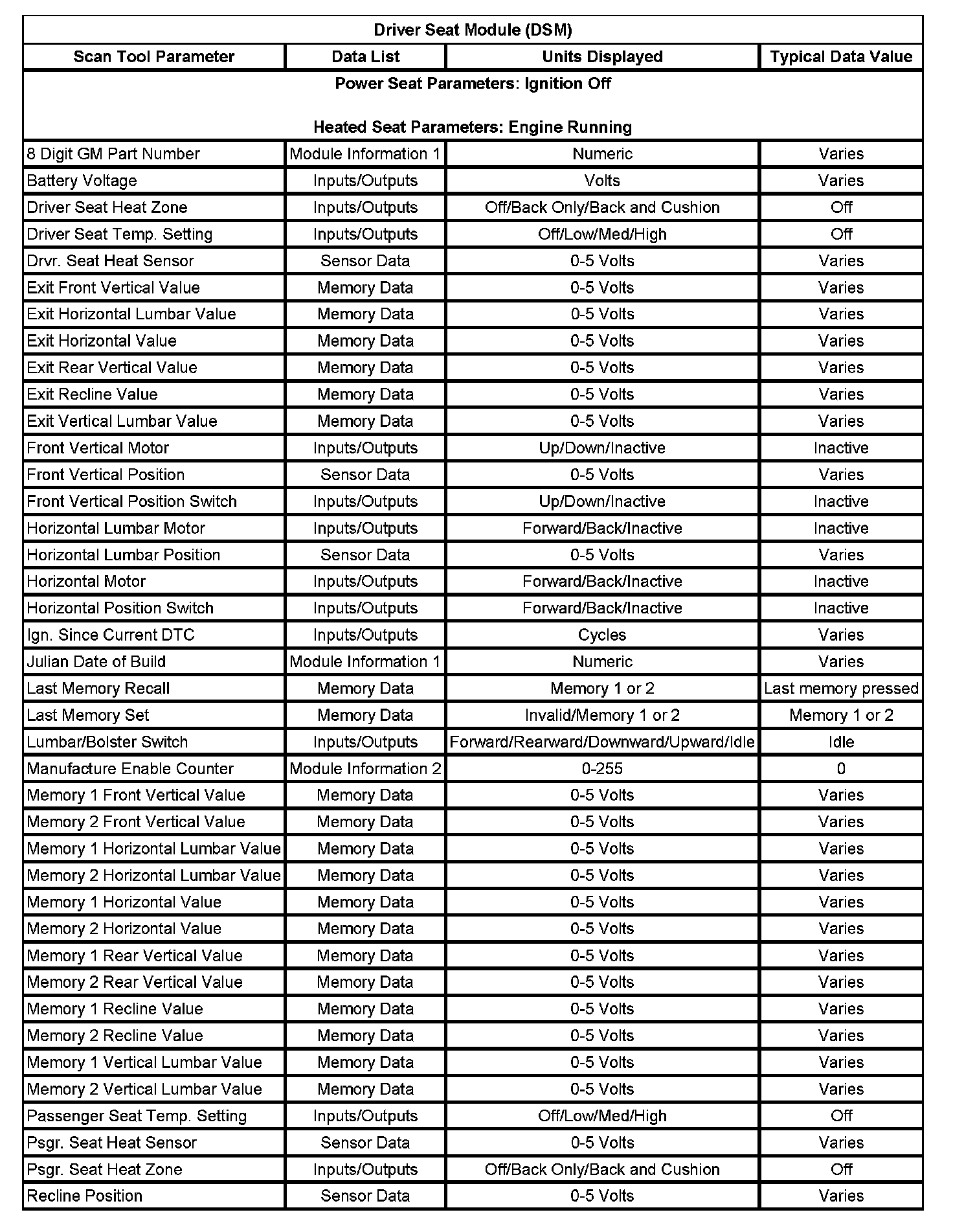

Driver Seat Module (DSM) (Part 1):

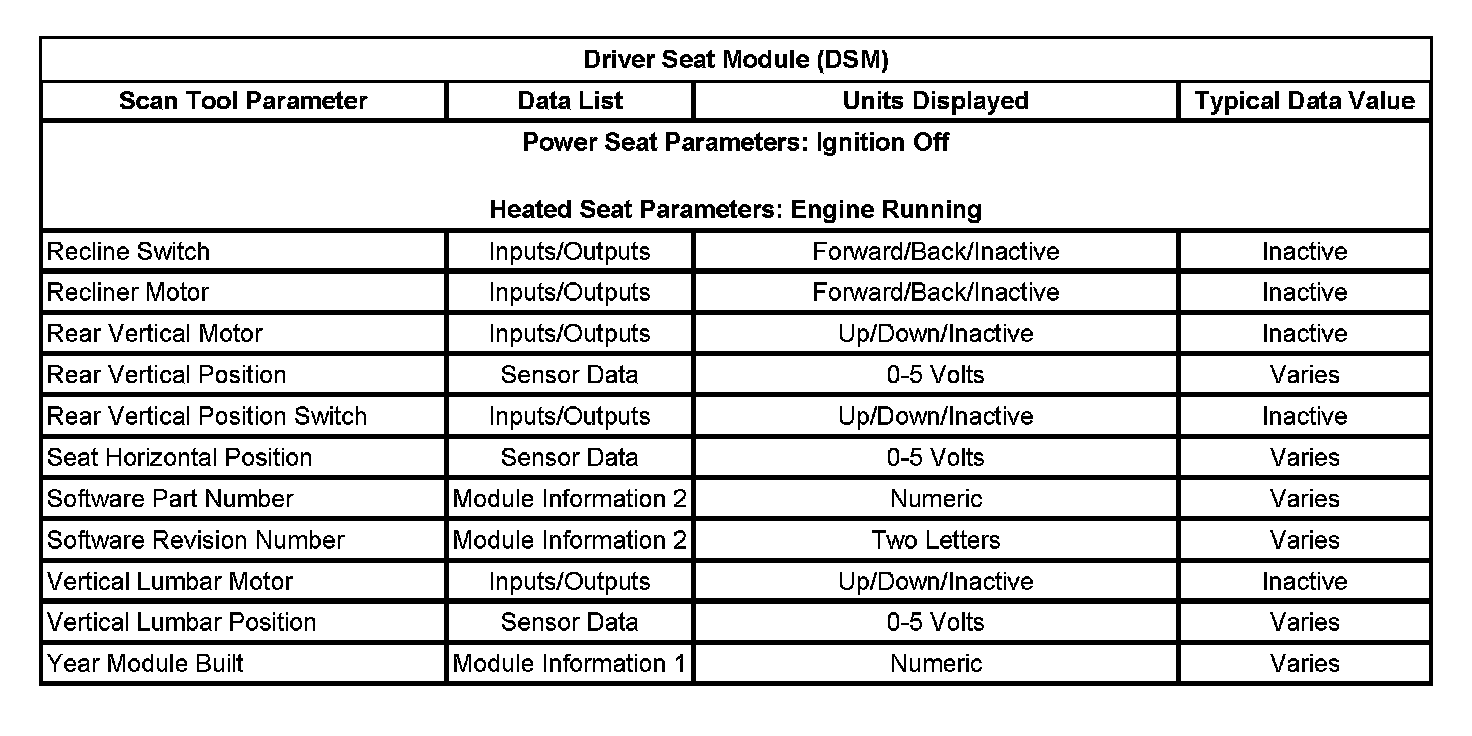

Driver Seat Module (DSM) (Part 2):
