Wiper Motor Replacement

WIPER MOTOR REPLACEMENT

TOOLS REQUIRED
- J 39232 Wiper Transmission Separator
- J 39529 Wiper Transmission Installer

REMOVAL PROCEDURE




1. Remove the wiper arms.
2. Remove the air inlet grille panel.

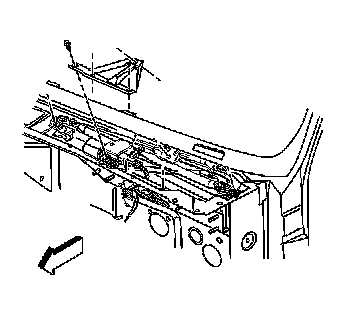

3. Remove the 4 bolts and the reinforcement panel.

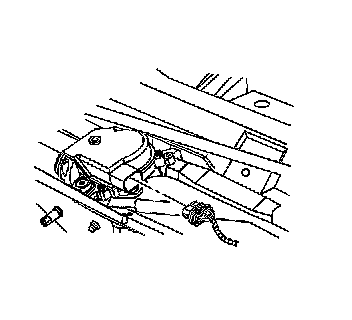

4. Disconnect the electrical connector from the wiper motor.

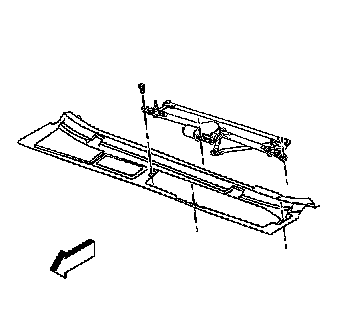

5. Remove the 2 bolts from the wiper transmission assembly.
6. Remove the wiper transmission assembly from the vehicle.

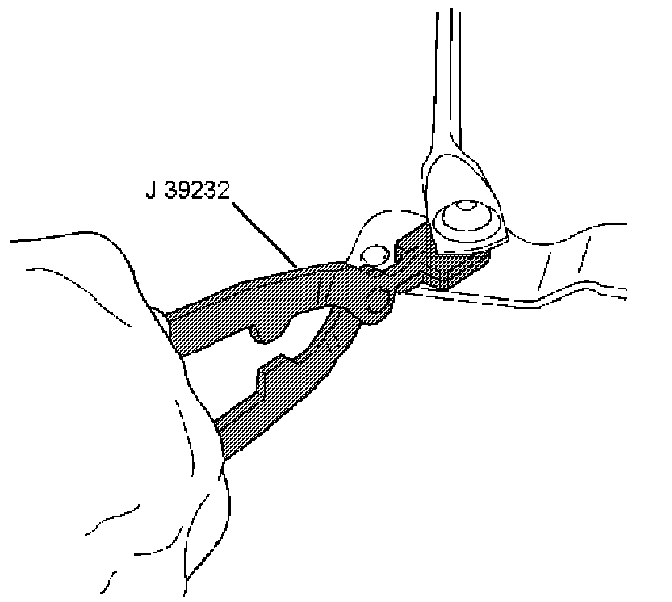

7. Remove the drive link from the wiper motor crank arm with the J 39232 .

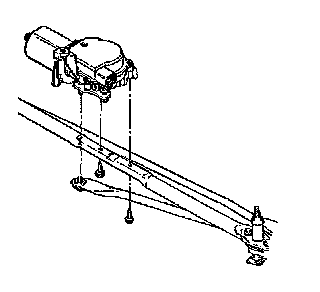

8. Remove the 2 bolts retaining the wiper motor.
9. Remove the wiper motor from the wiper transmission assembly.

INSTALLATION PROCEDURE




1. Install the wiper motor onto the wiper transmission assembly with the 2 bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the 2 bolts to 8 N.m (71 lb in).




2. Install the drive link onto the wiper motor crank arm with the J 39529 .




3. Install the wiper transmission assembly on the vehicle with the 2 bolts.

Tighten the 2 bolts to 9 N.m (80 lb in).




4. Connect the electrical connector to the wiper motor .




5. Install the reinforcement panel with the 4 bolts.

Tighten the 4 bolts to 9 N.m (80 lb in).

6. Install the air inlet grille panel.
7. Install the wiper arms.
8. Operate the wipers and check for proper operation.
