Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Defogger Inoperative - Rear Window (w/o Cargo Doors)

Defogger Inoperative - Rear Window (w/o Cargo Doors)

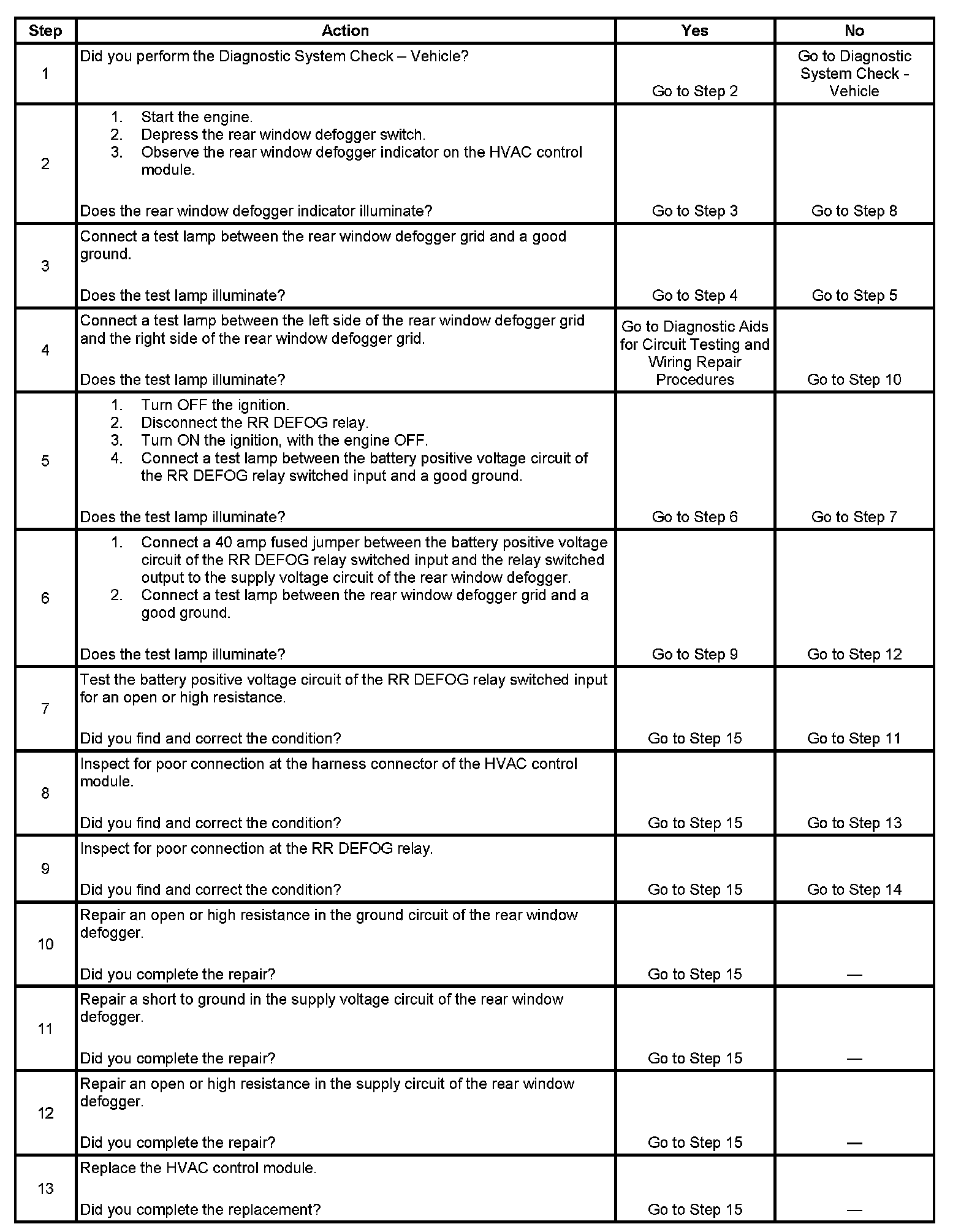

Step 1 - Step 13:

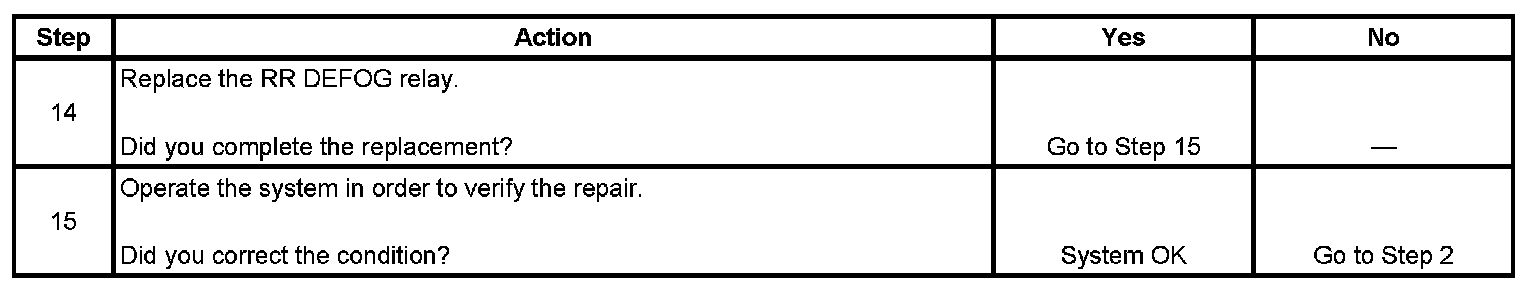

Step 14 - Step 15:
