Transfer Case Clunk During Acceleration and Deceleration
>>
BW 4481-NR3 Transfer Case
BW 4481-NR3 Transfer Case
Transfer Case

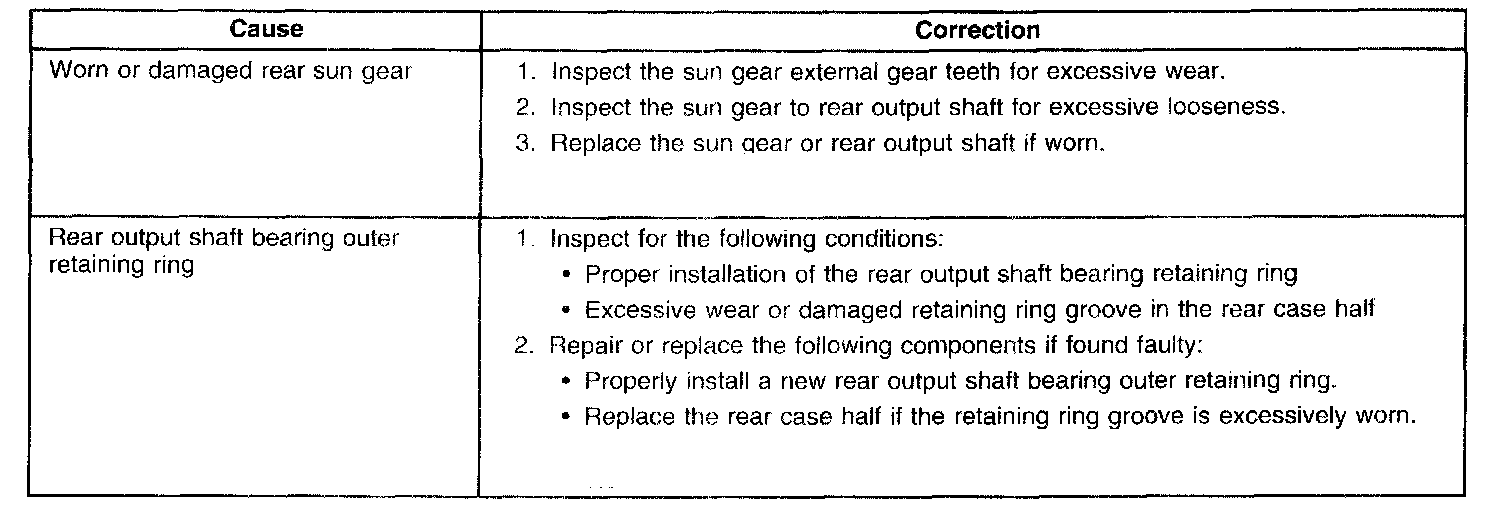

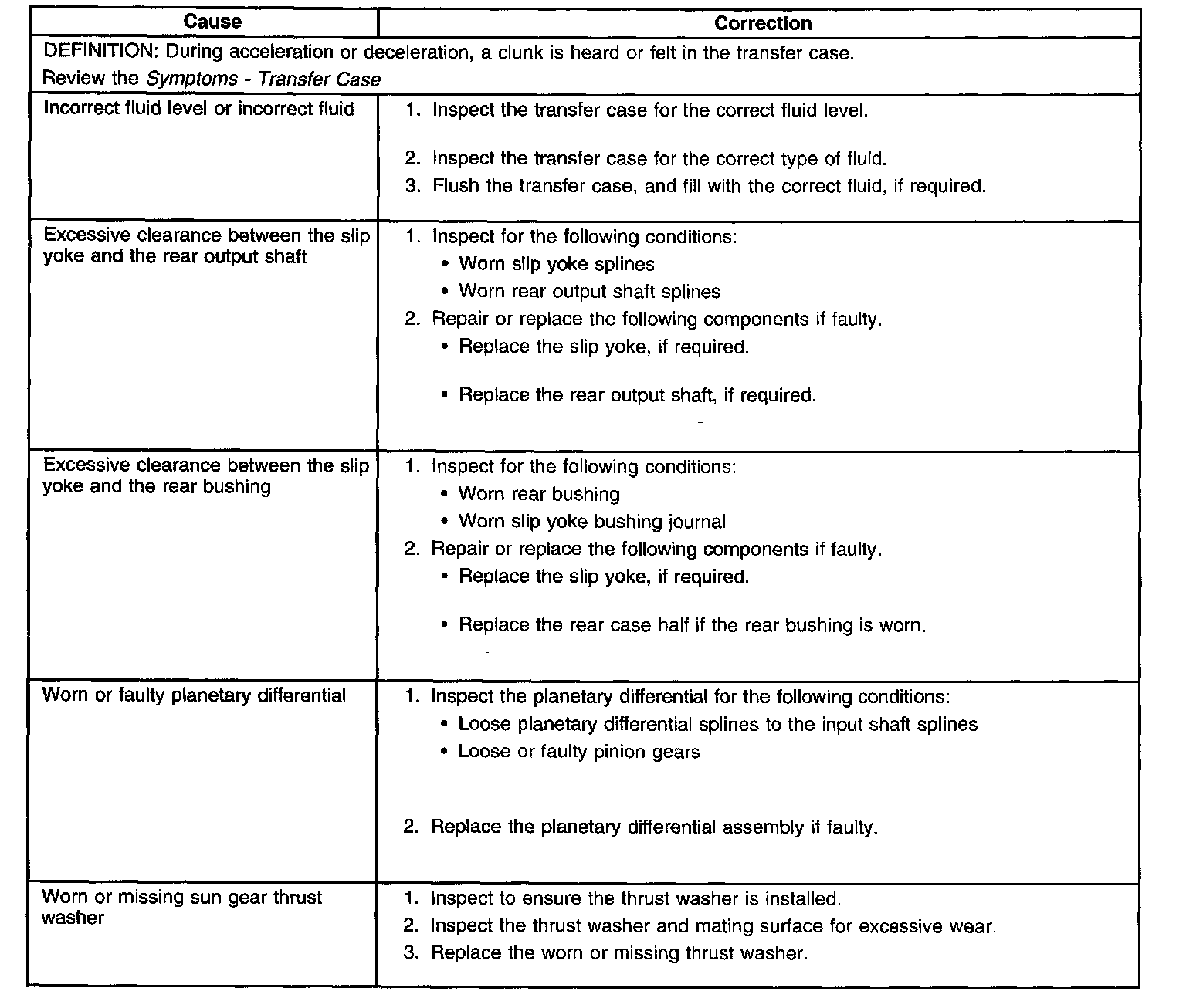

Clunk During Acceleration and Deceleration
