Steyr - Transfer Case
>>
General Specifications
General Specifications
General Specifications

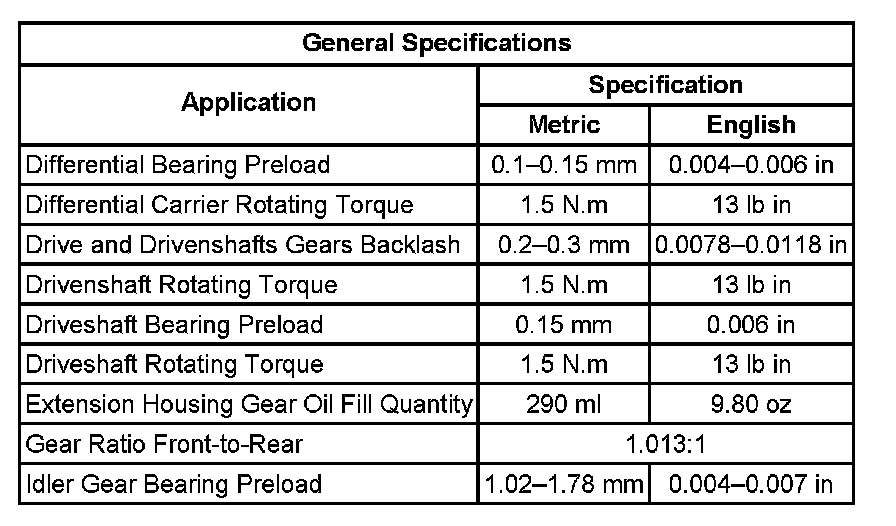

General Specifications:
Extension Housing Shim Calculation Table - Procedure A:

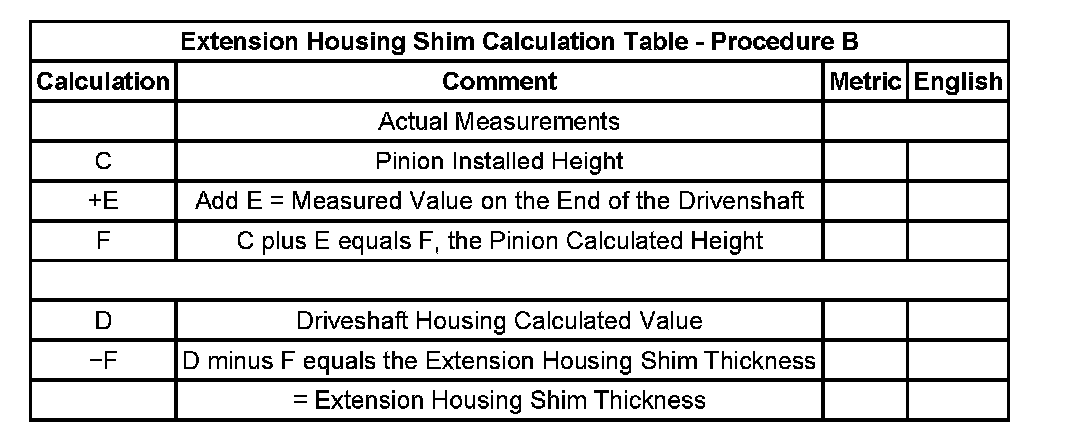

Extension Housing Shim Calculation Table - Procedure B:
