Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Service and Repair >> Removal and Replacement >> NVG 120-NR9 - Transfer Case >> 7. Front Output Shaft and Input Shaft Cleaning and Inspection

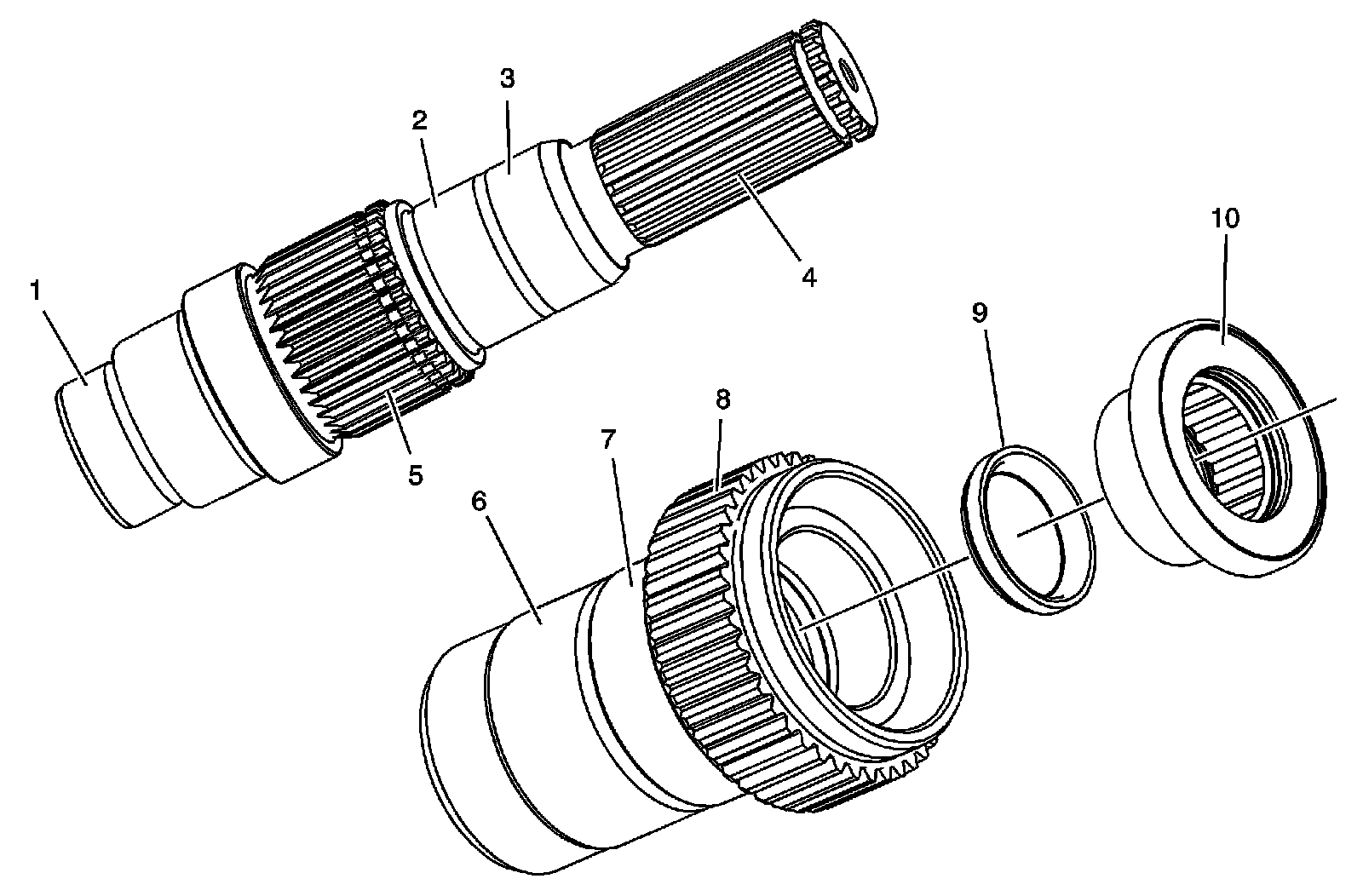

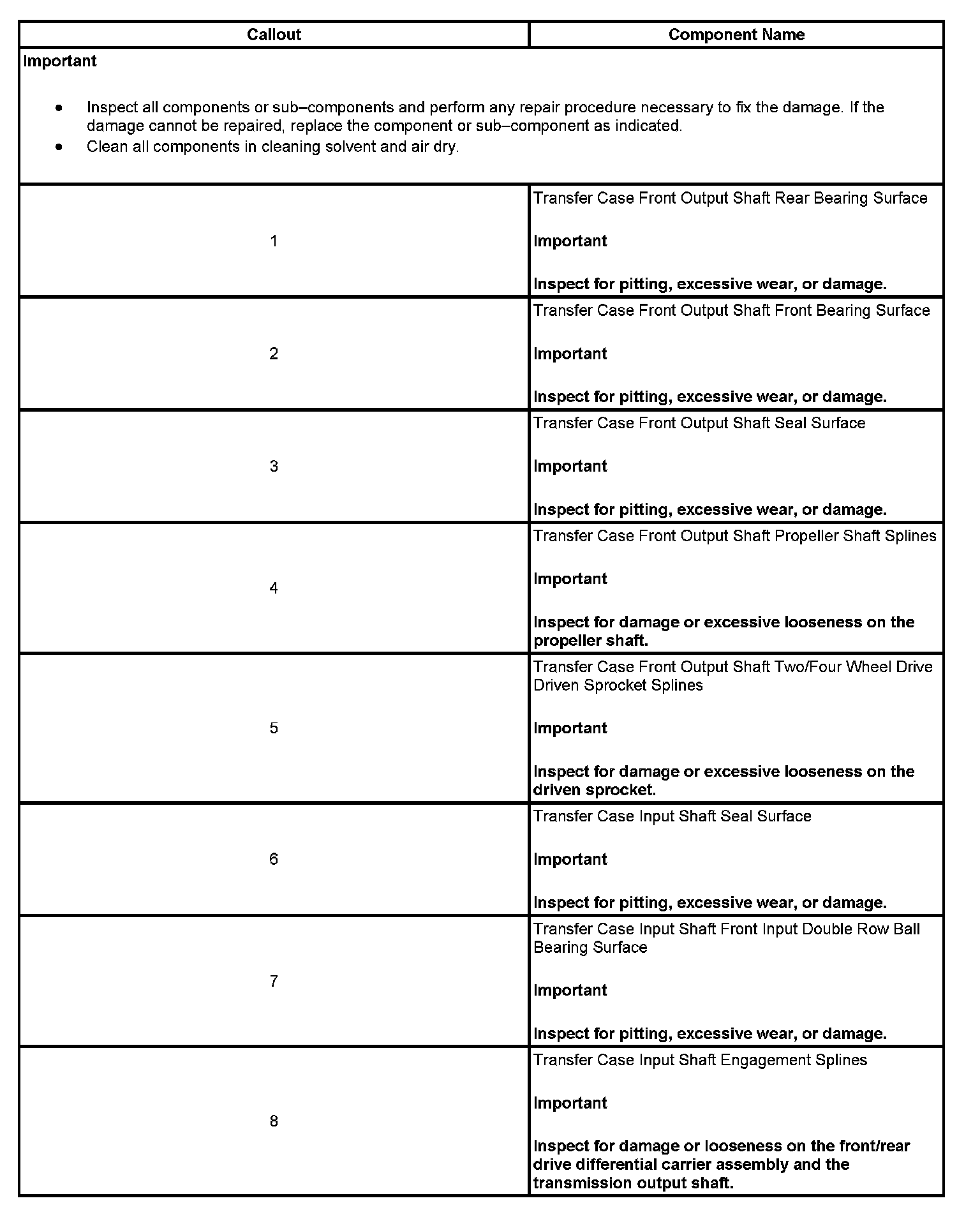

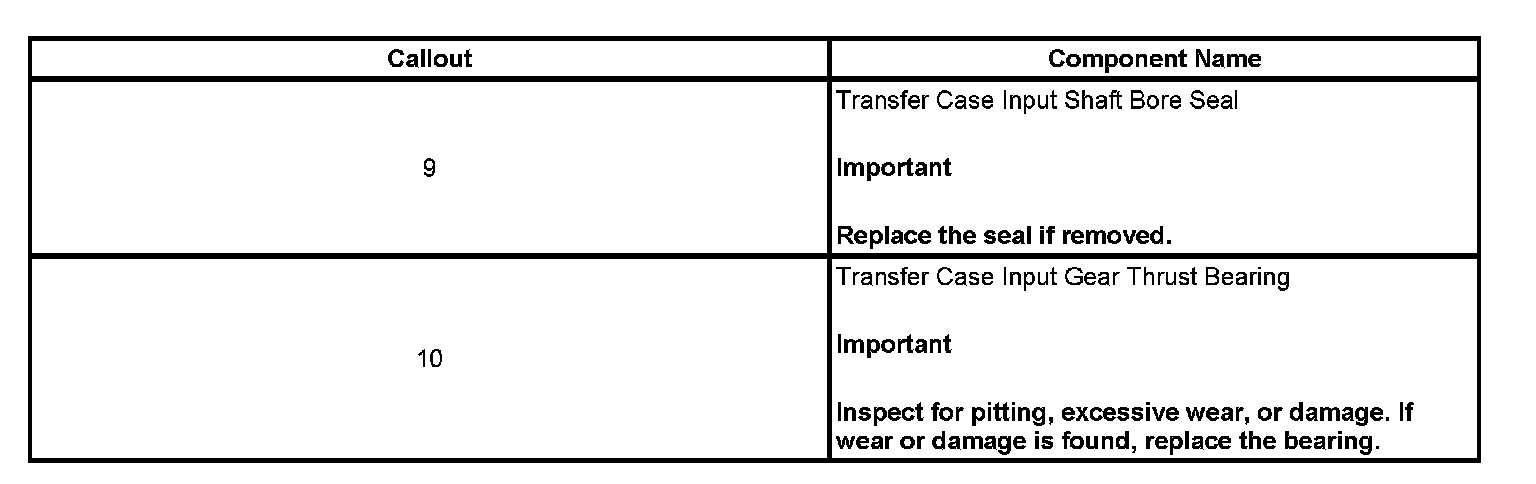

7. Front Output Shaft and Input Shaft Cleaning and Inspection



Front Output Shaft and Input Shaft Cleaning and Inspection
