2. Transfer Case Front Half Cleaning and Inspection

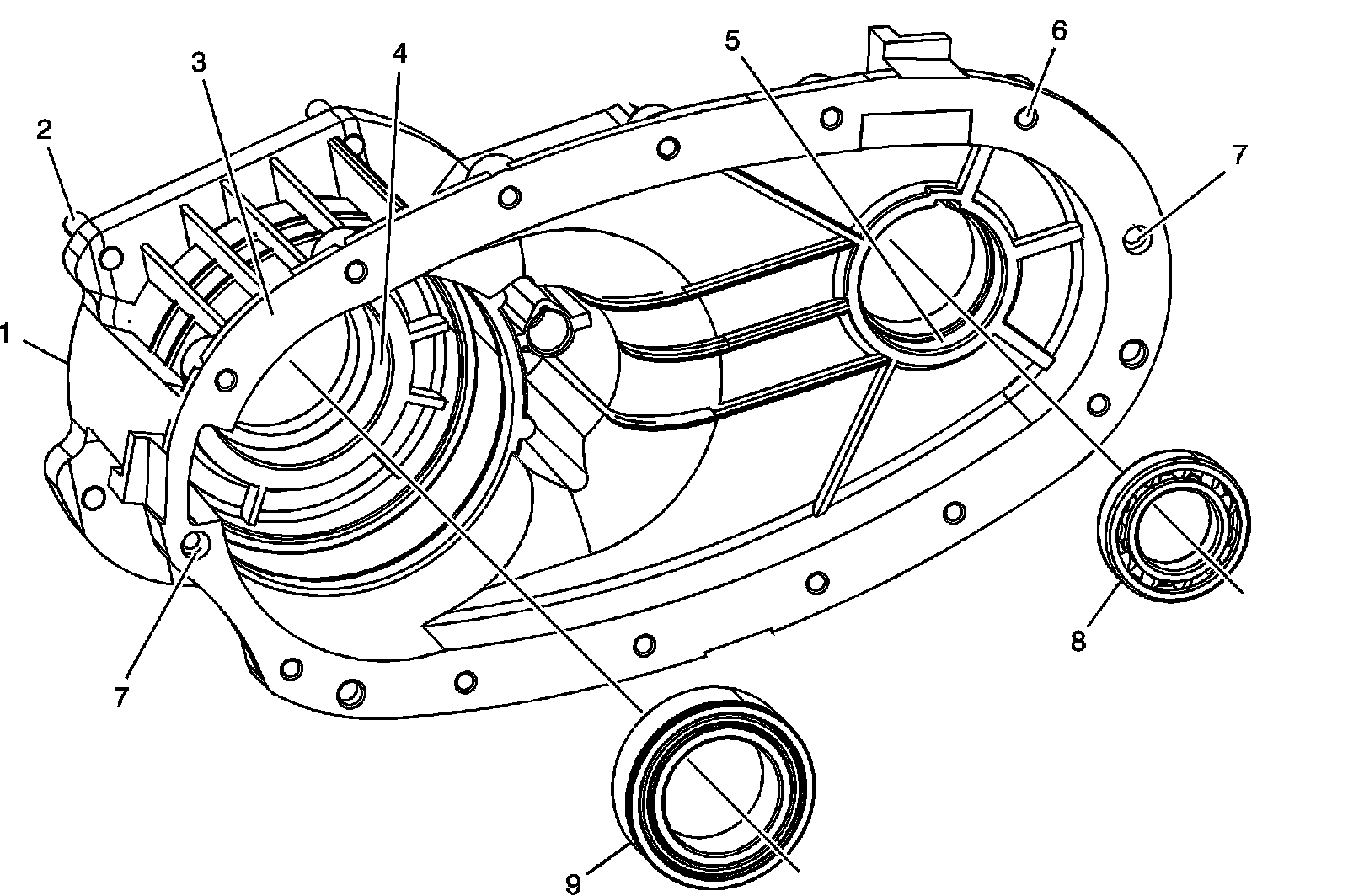

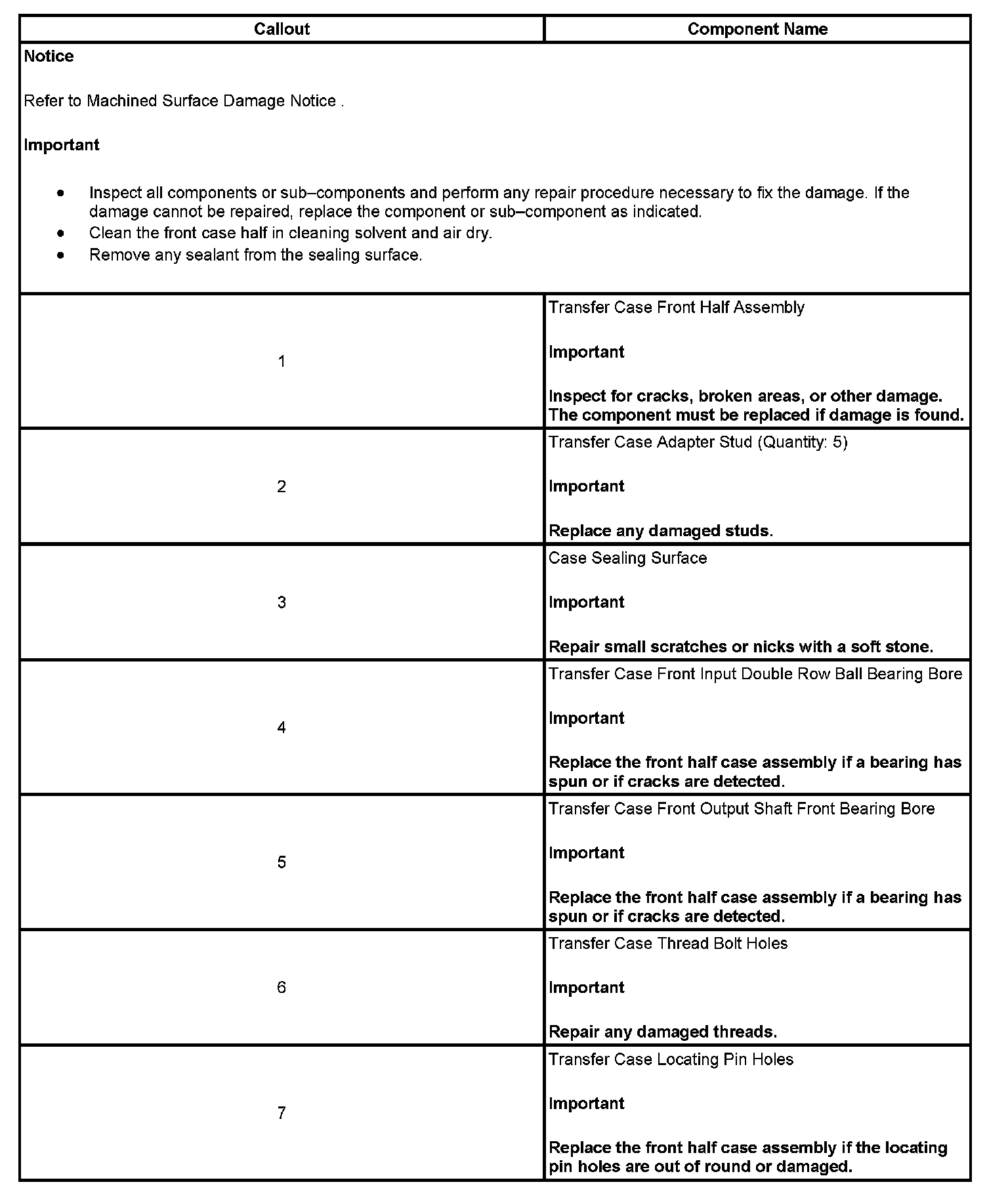

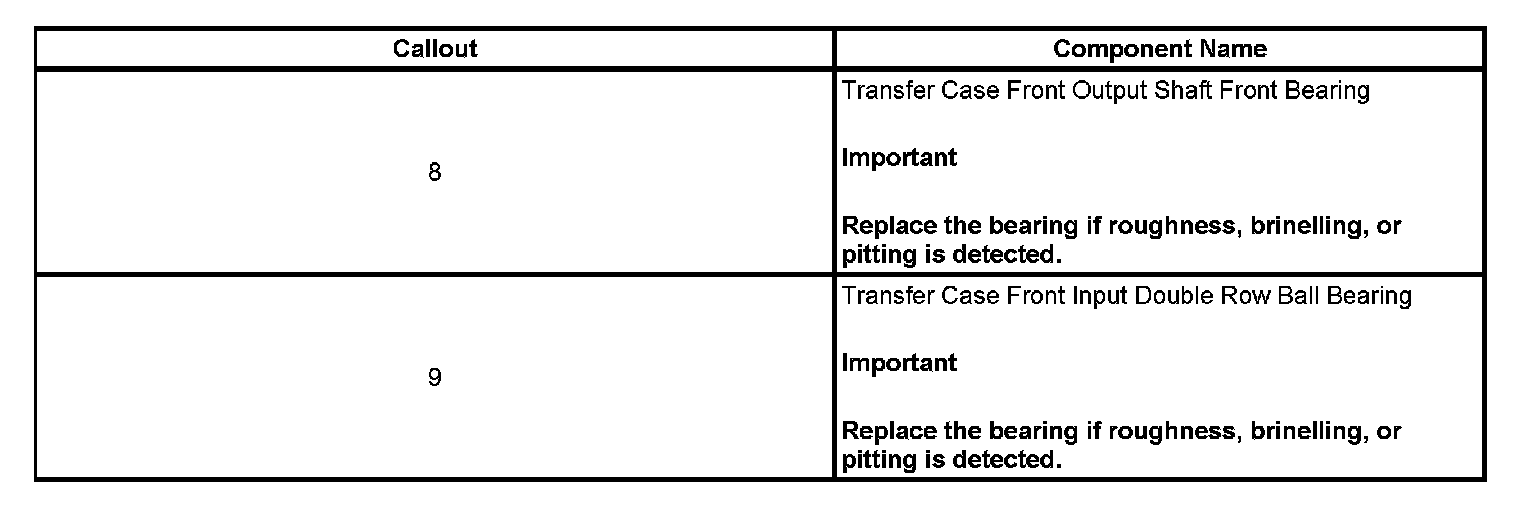

Transfer Case Front Half Cleaning and Inspection
