Transfer Case Speed Sensor Replacement - Right Rear

Transfer Case Speed Sensor Replacement - Right Rear
Removal Procedure





1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.

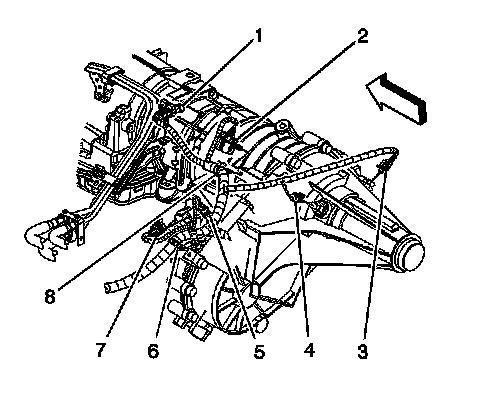

2. Disconnect the right rear speed sensor electrical connector (3).

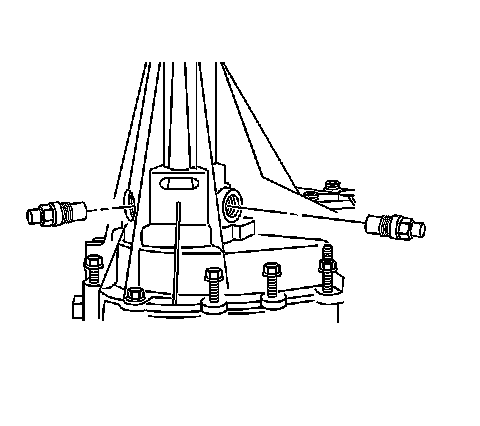

3. Remove the right rear speed sensor.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the right rear speed sensor.
^ Tighten the speed sensor to 15 Nm (11 ft. lbs.).





2. Connect the right rear speed sensor electrical connector (3).
3. Lower the vehicle.
