Locking Differential Clutch Disc Assembly - Disassemble (11.5 Inch Axle)

Locking Differential Clutch Disc Assembly - Disassemble (11.5 Inch Axle)

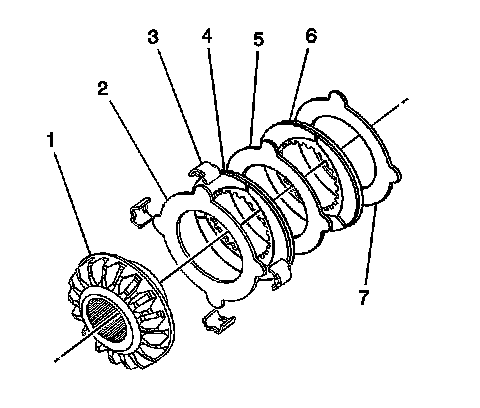

1. Remove the guide clips (3).
2. Remove the clutch discs and the splined discs (2, 4-7) from the side gear (1).
