Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Automatic Level Control >> Automatic Level Control Compressor Motor Inoperative

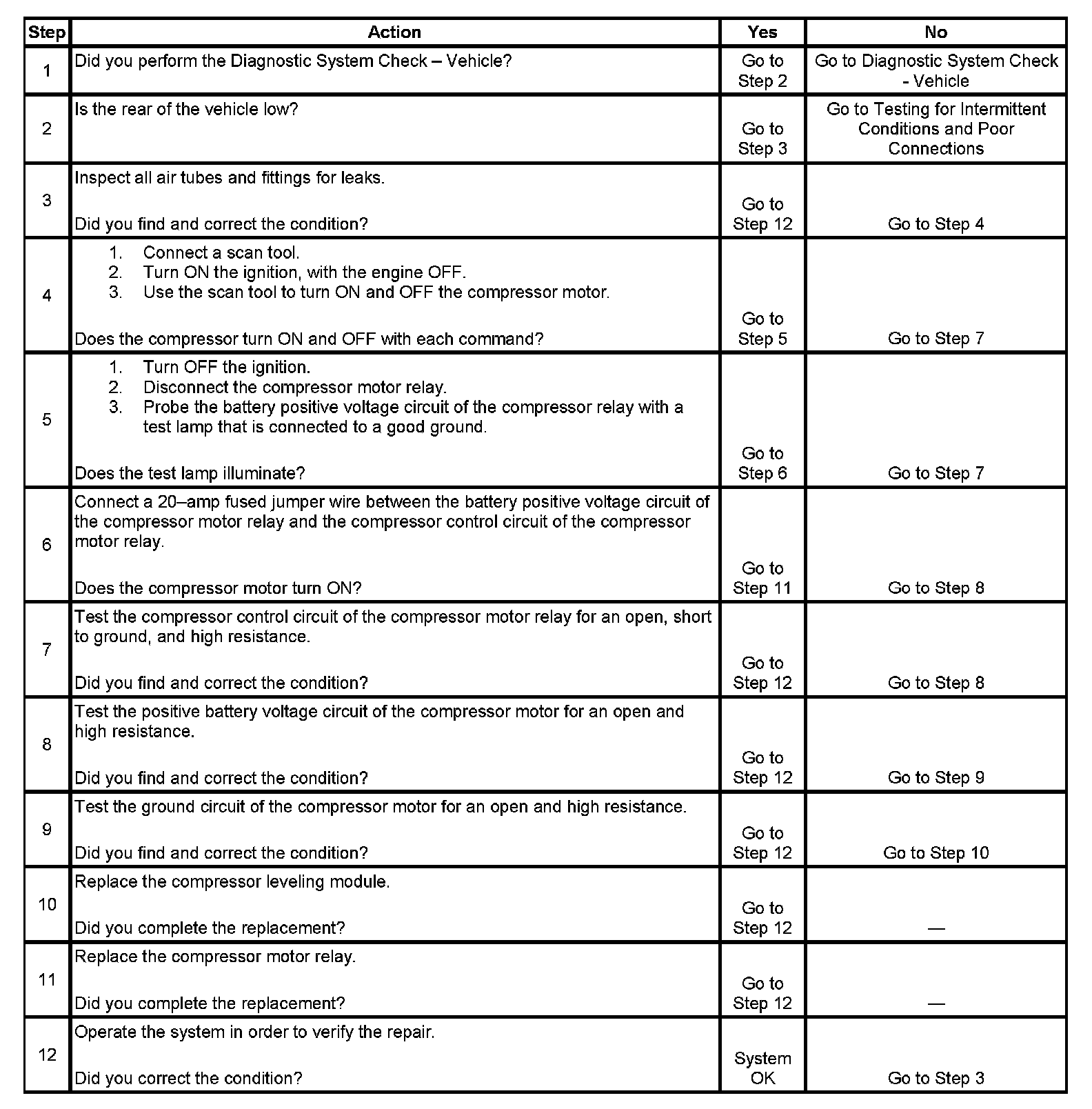

Automatic Level Control Compressor Motor Inoperative

Step 1 - Step 12:
