Damping Control Actuator: Diagrams

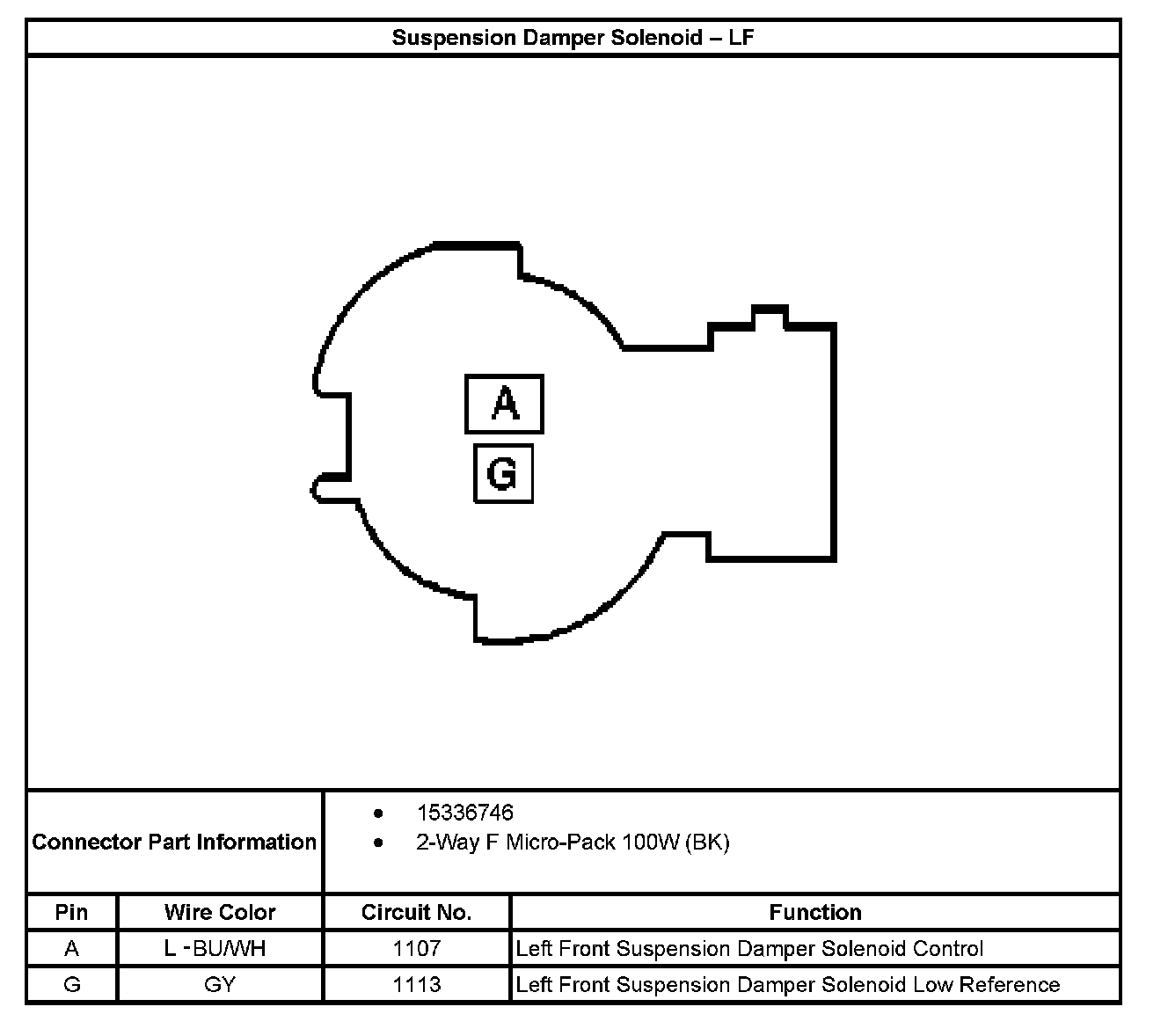

Suspension Damper Solenoid - LF:

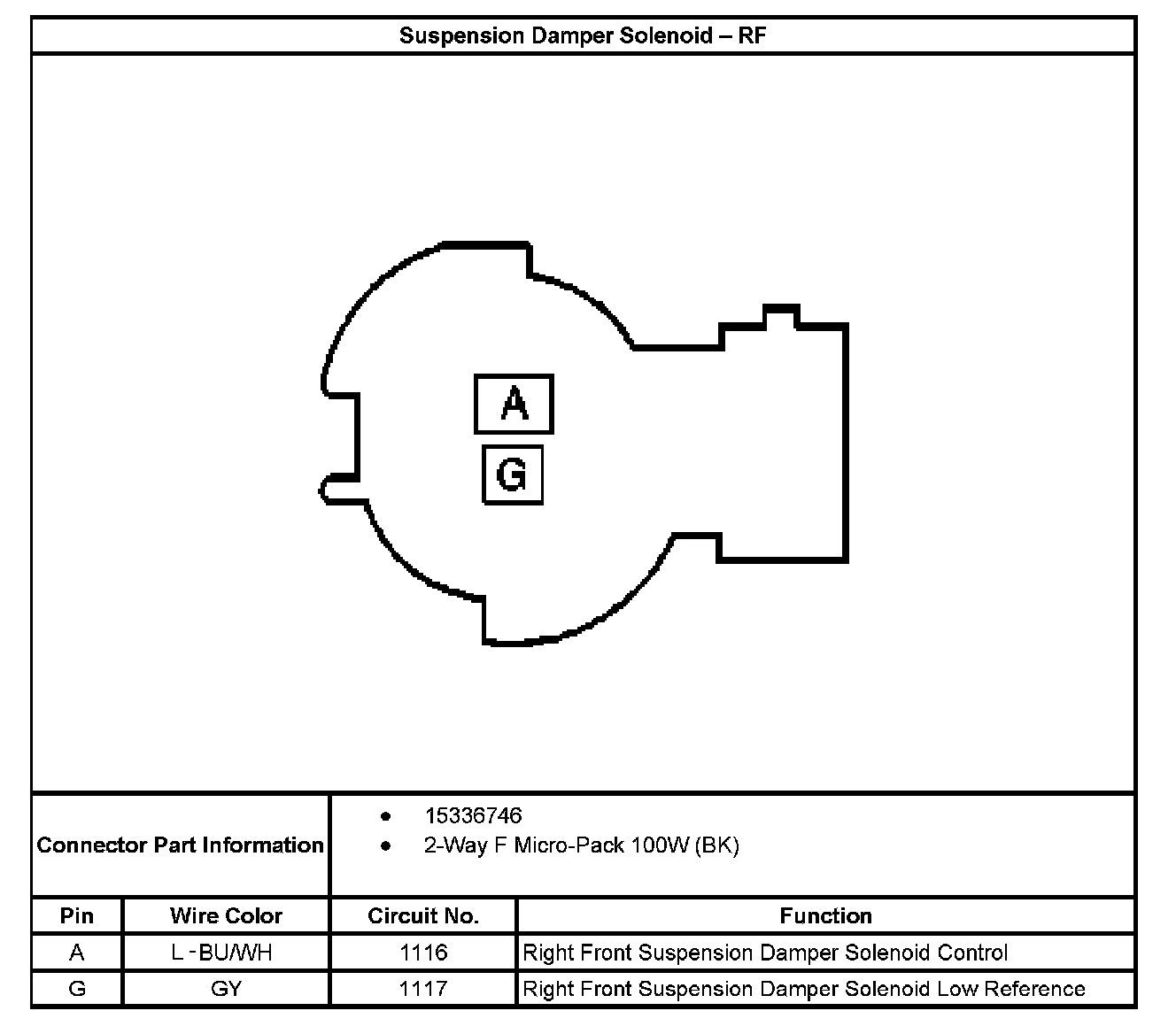

Suspension Damper Solenoid - RF:

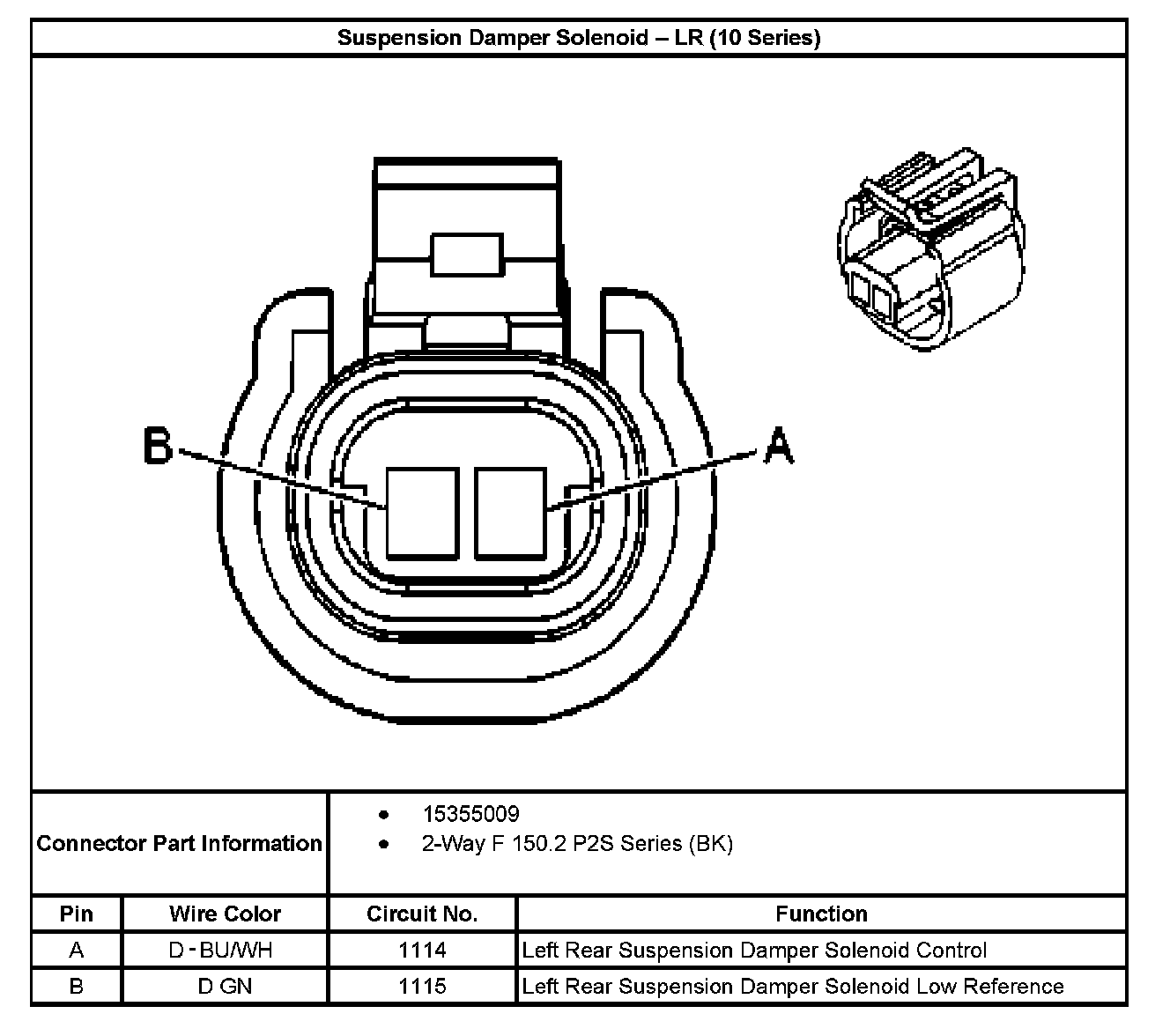

Suspension Damper Solenoid - LR (10 Series):

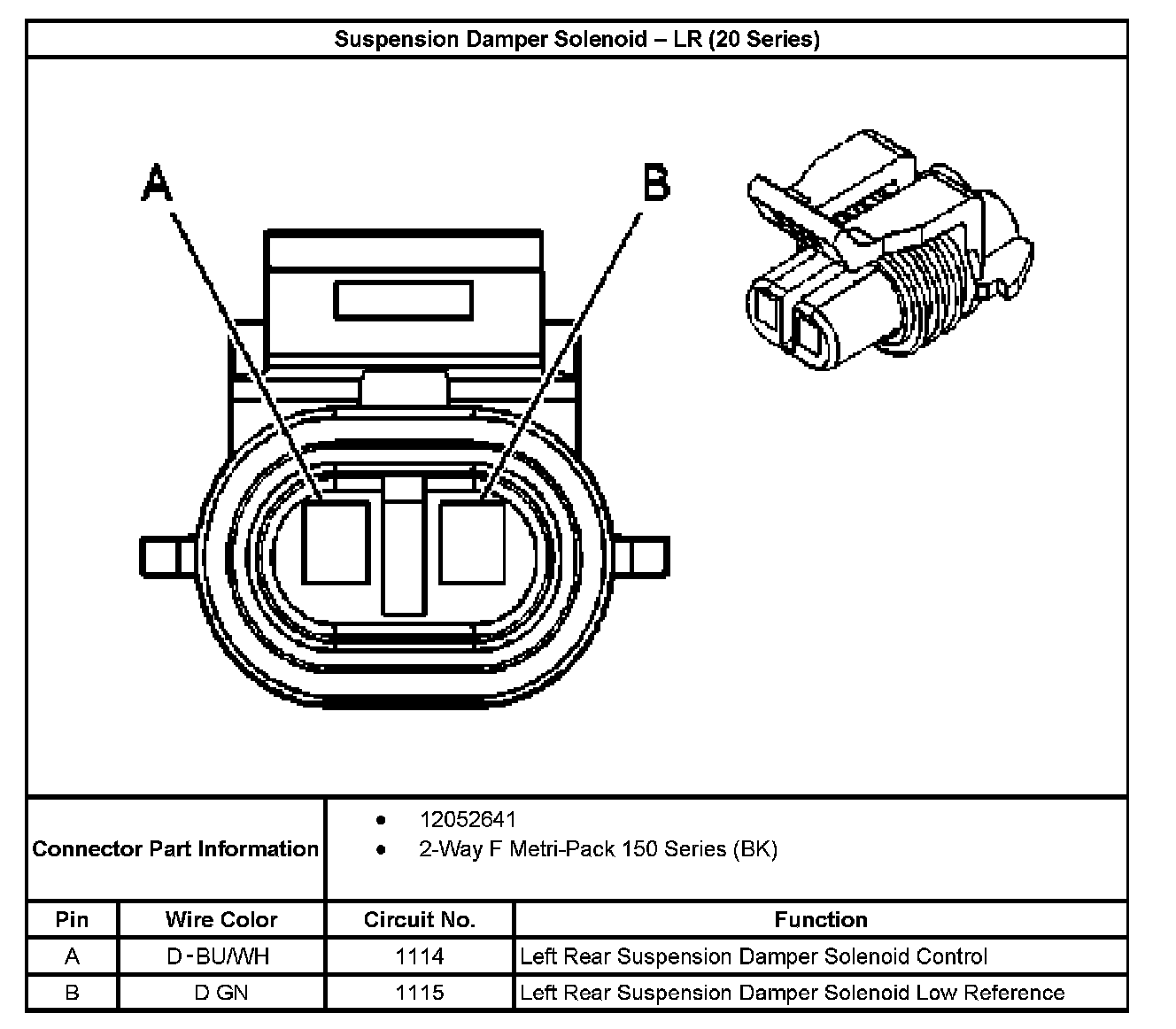

Suspension Damper Solenoid - LR (20 Series):

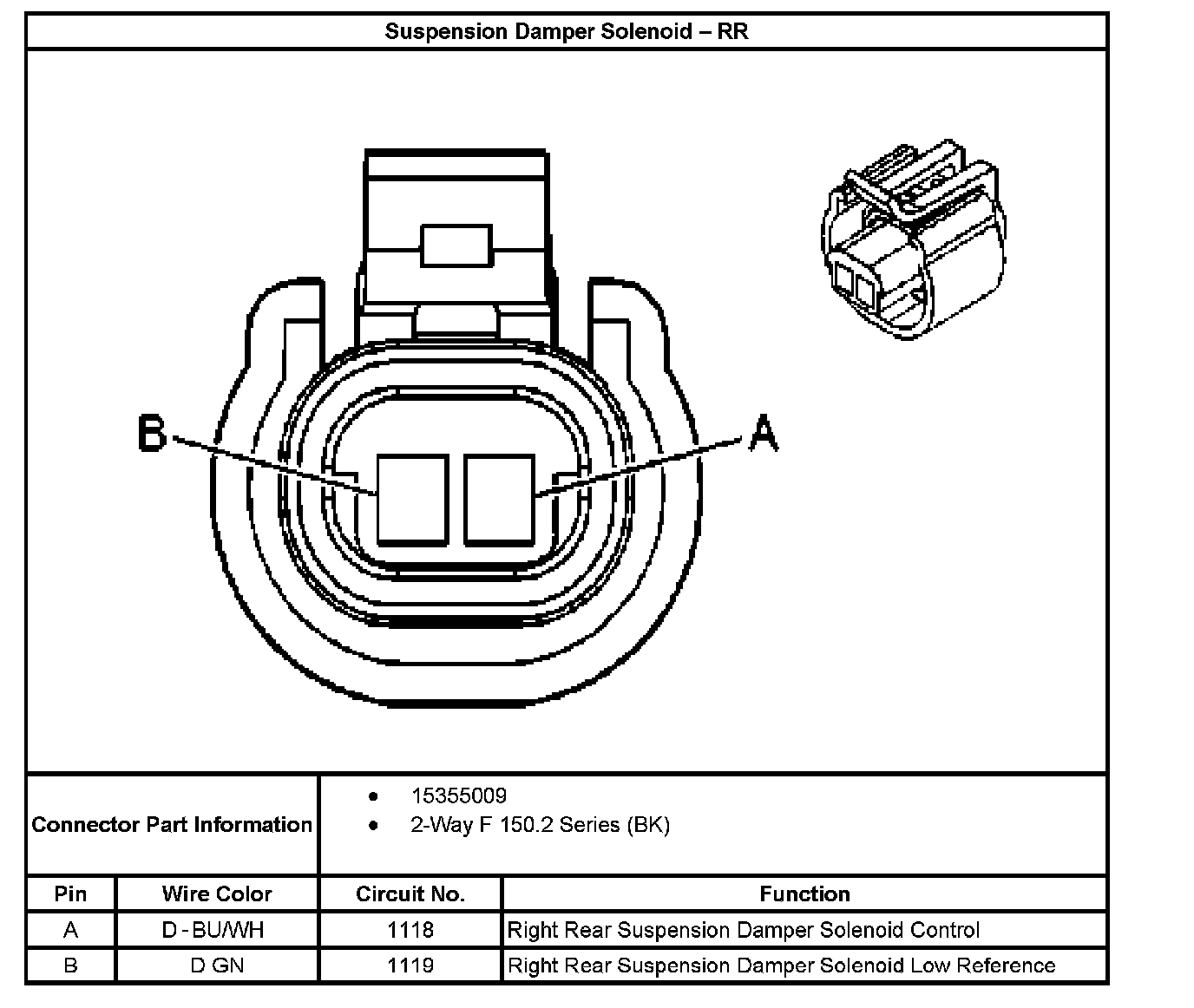

Suspension Damper Solenoid - RR:
