Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Frame View >> LR Frame - Camper Provision

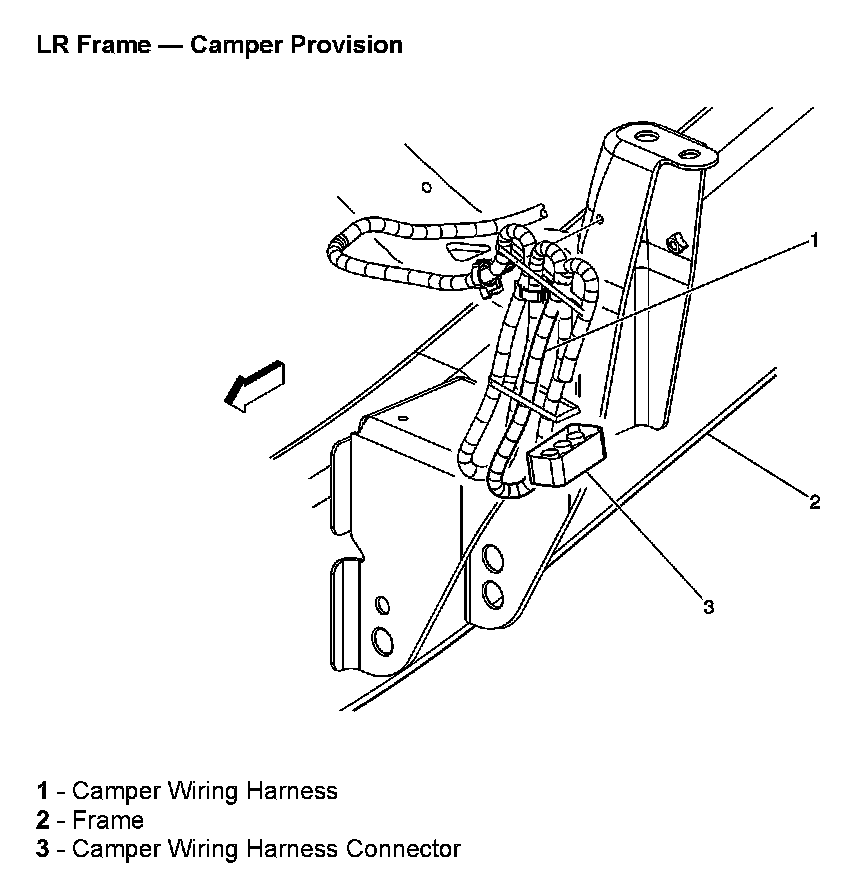

LR Frame - Camper Provision

LR Frame - Camper Provision:
