Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Engine View >> Lower Left Side of the Engine Components

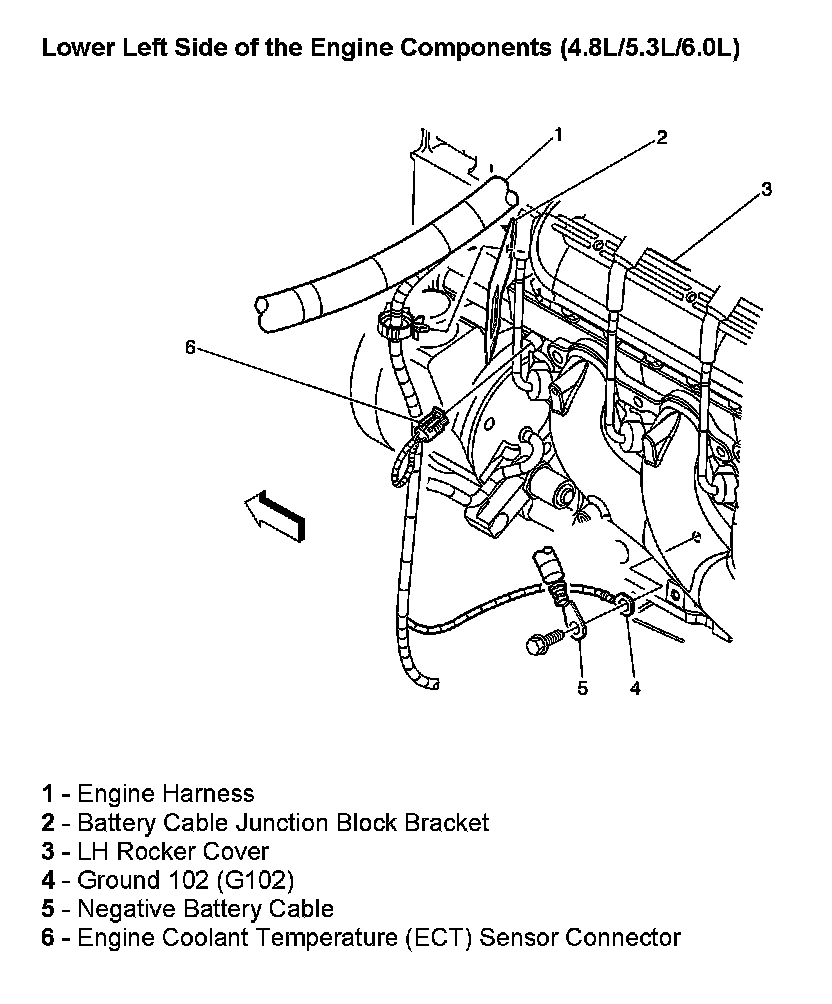

Lower Left Side of the Engine Components

Lower Left Side Of The Engine Components:
