Fuse Block - Underhood - C4

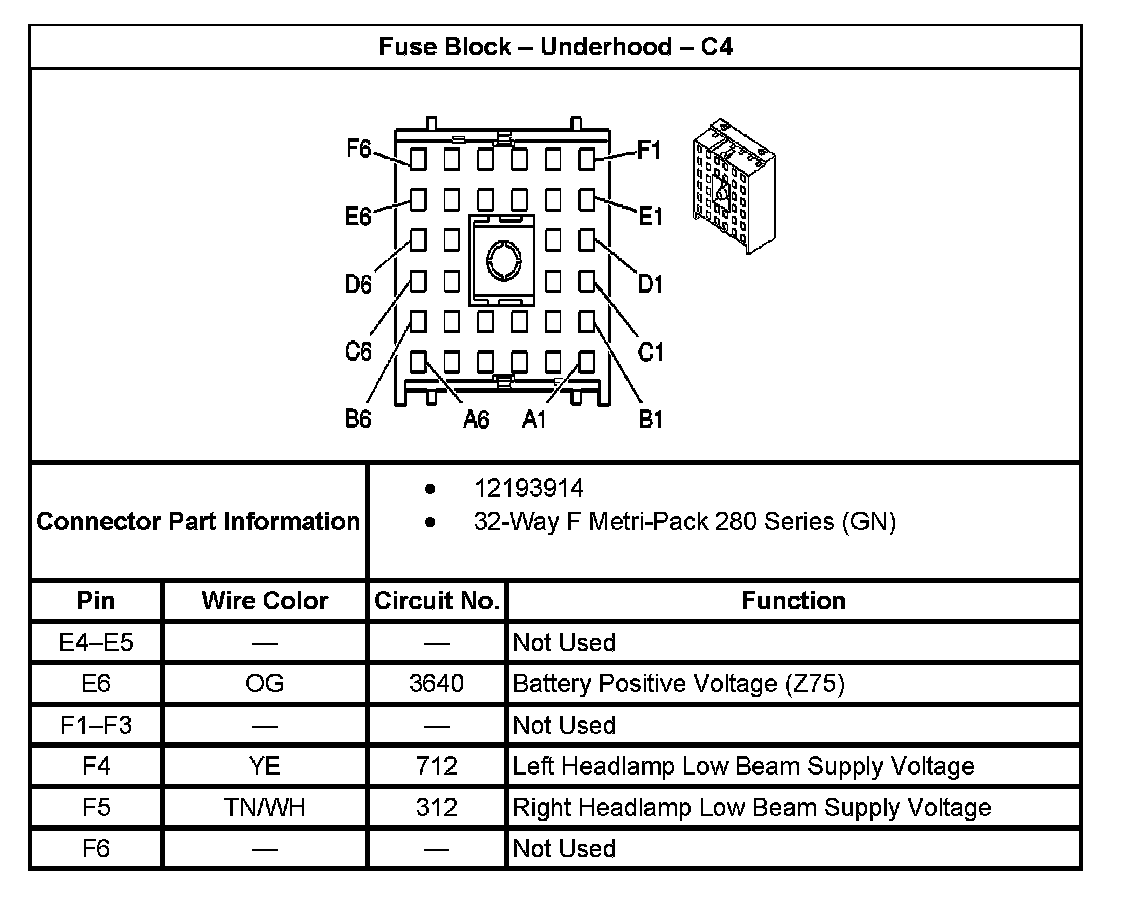

Fuse Block - Underhood - C4 (Part 1):

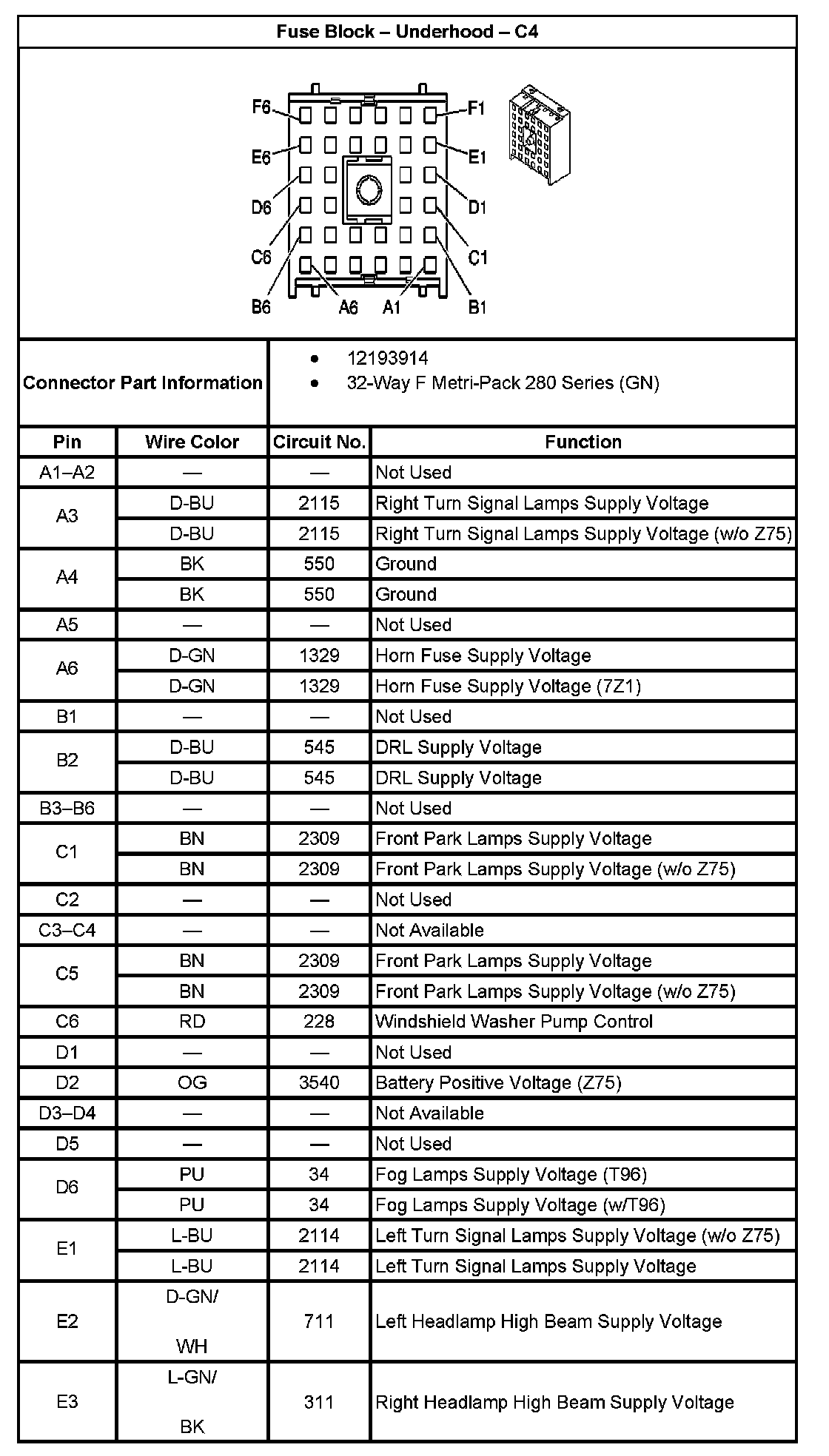

Fuse Block - Underhood - C4 (Part 2):
