Fluid Pressure Sensor/Switch
>>
Diagrams
>>
4L60-E/4L65-E/4L70-E - Automatic Transmission
4L60-E/4L65-E/4L70-E - Automatic Transmission

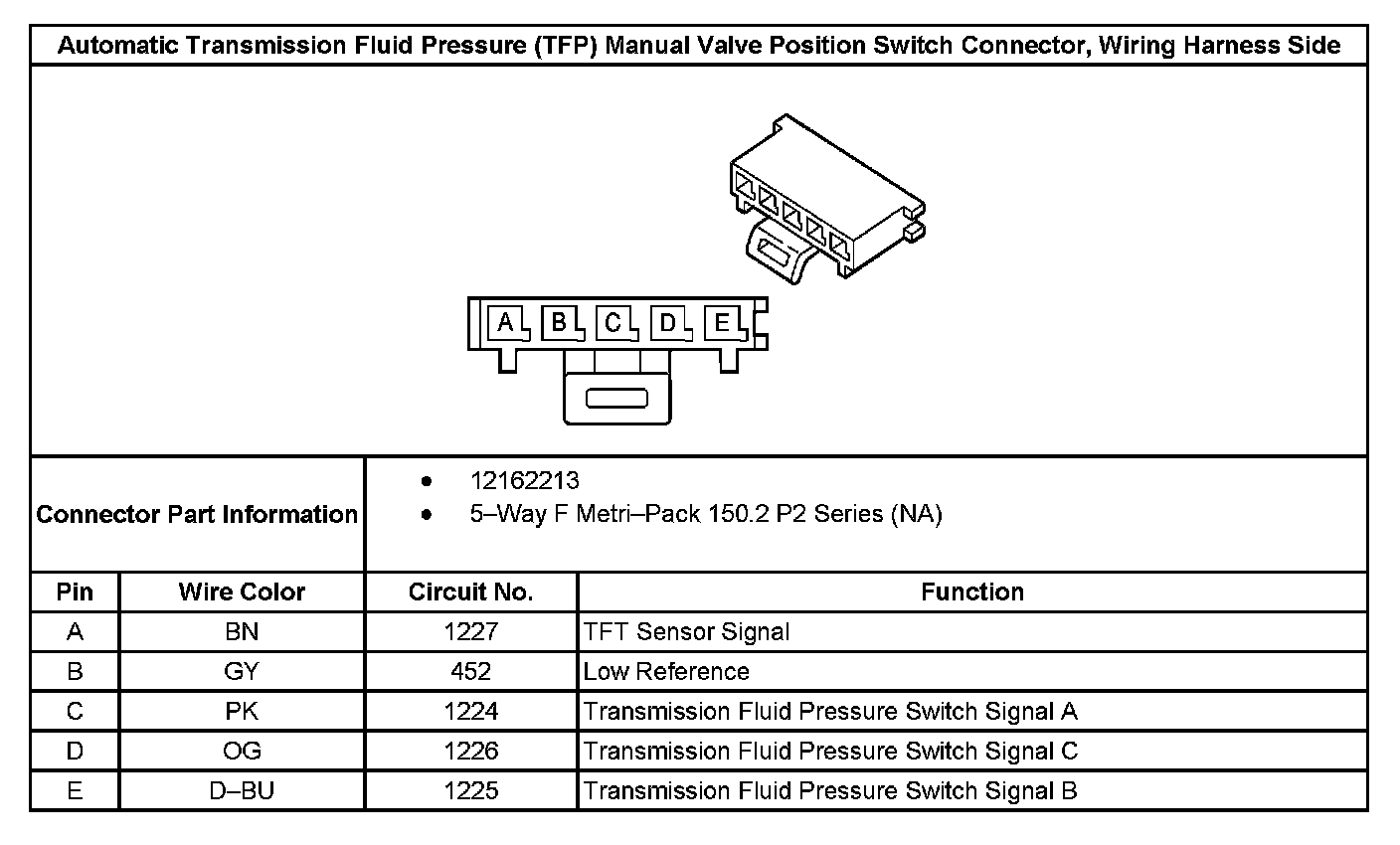

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side:
