Air Temperature Sensor - Upper Right

AIR TEMPERATURE SENSOR REPLACEMENT - UPPER RIGHT

REMOVAL PROCEDURE
1. Remove the I/P upper trim panel.

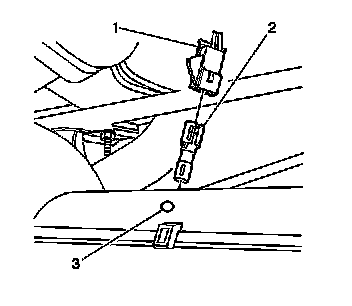

2. Disconnect the electrical connector (1) from the upper right air temperature sensor (2).
3. Remove the upper right air temperature sensor (1) from the air distributor duct (3).

INSTALLATION PROCEDURE




1. Install the upper right air temperature sensor (1) to the air distributor duct (3).
2. Connect the electrical connector (1) from the upper right air temperature sensor (2).
3. Install the I/P upper trim panel.
