Air Temperature Sensor - Lower Auxiliary

AIR TEMPERATURE SENSOR REPLACEMENT - LOWER AUXILIARY

REMOVAL PROCEDURE




1. Remove the right side C-pillar trim panel.

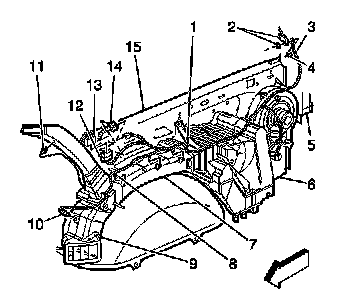

2. Disconnect the electrical connector from the auxiliary lower A/C temperature sensor (10).
3. Remove the auxiliary lower A/C temperature sensor (10) from the air distribution duct.

INSTALLATION PROCEDURE




1. Install the rear lower A/C temperature sensor (10) to the air distribution duct.
2. Connect the electrical connector to the rear lower A/C temperature sensor (10).
3. Install the right side C-pillar trim panel.
