Brake Fluid Pressure Sensor/Switch: Diagrams

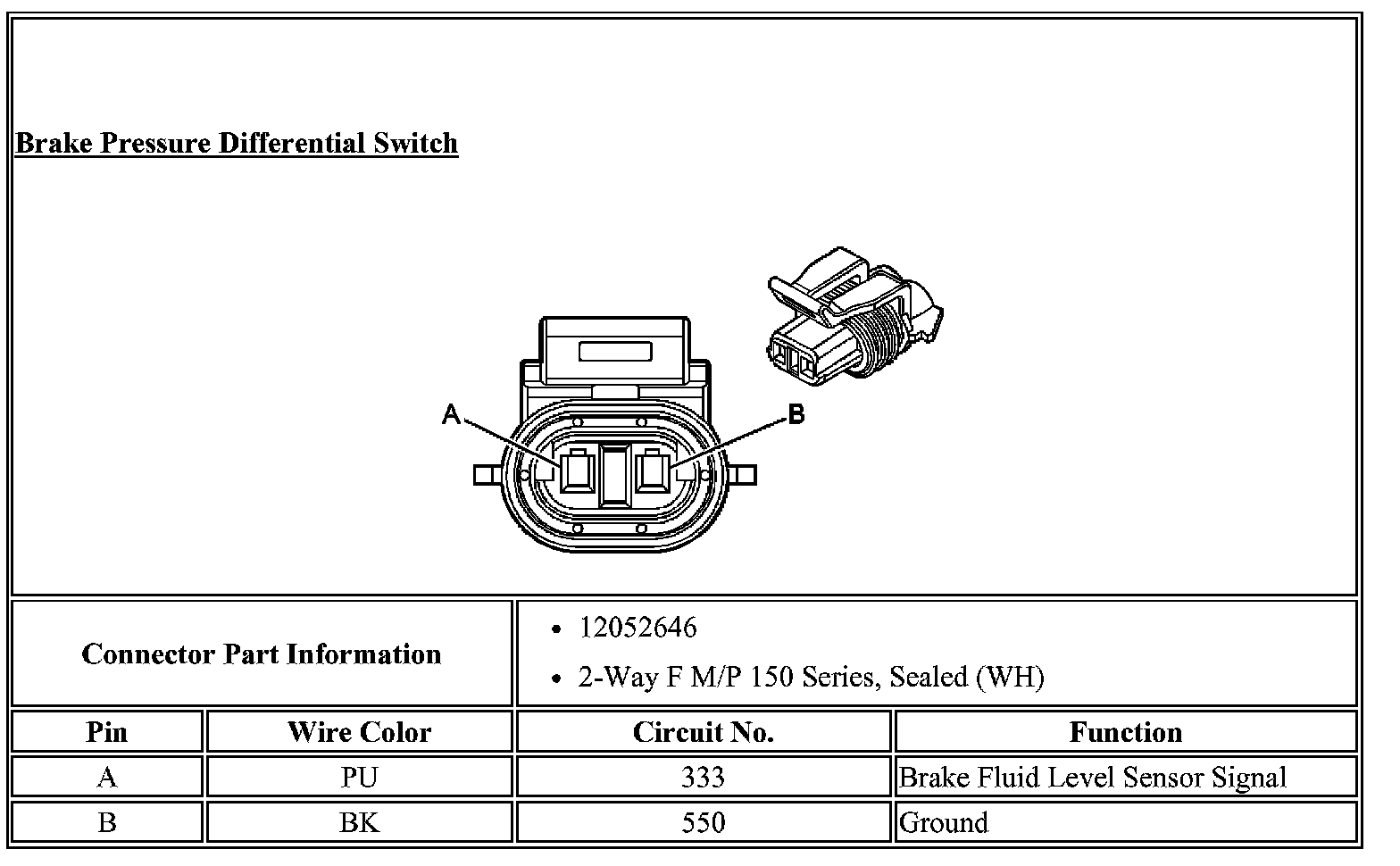

Brake Pressure Differential Switch:

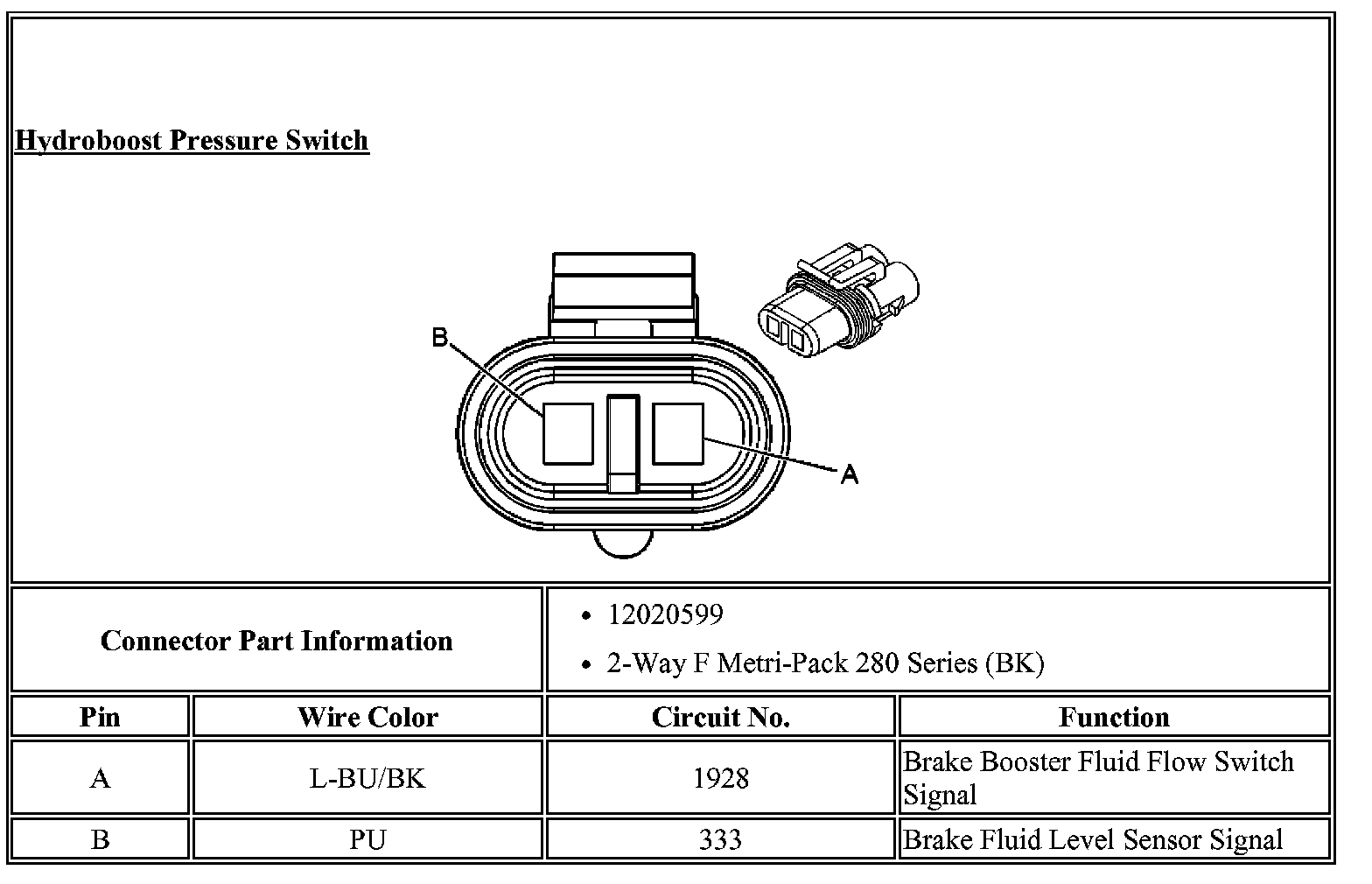

Hydroboost Pressure Switch:
