Parking Assist Control Module: Service and Repair

OBJECT ALARM MODULE SWITCH REPLACEMENT - REAR

REMOVAL PROCEDURE
1. Remove the dash trim bezel.

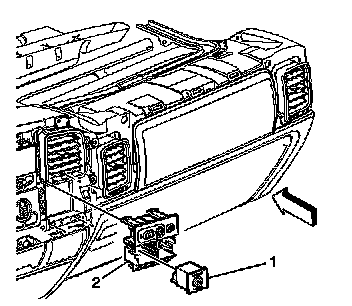

2. Grasp the buttons assembly (2) housing and pull outwards.




3. Disconnect the electrical connector from the rear object alarm module switch.
4. Remove the switch (1) from the housing (2).

INSTALLATION PROCEDURE




1. Install the rear object alarm switch into the housing (2).
2. Connect the electrical connector to the switch (1).
3. Install the switch housing into the dash.
4. Install the dash trim bezel.
