4L80-E/4L85-E Automatic Transmission

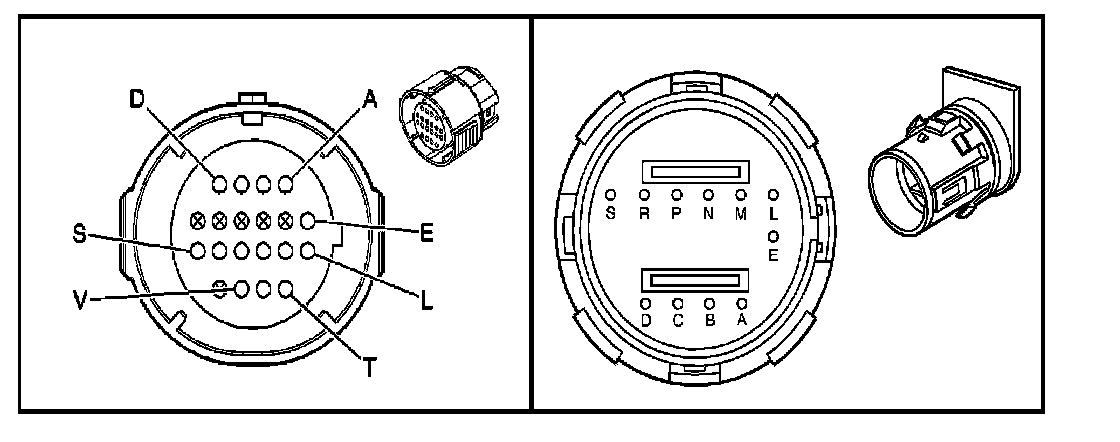

Automatic Transmission Inline 20-Way Connector End View

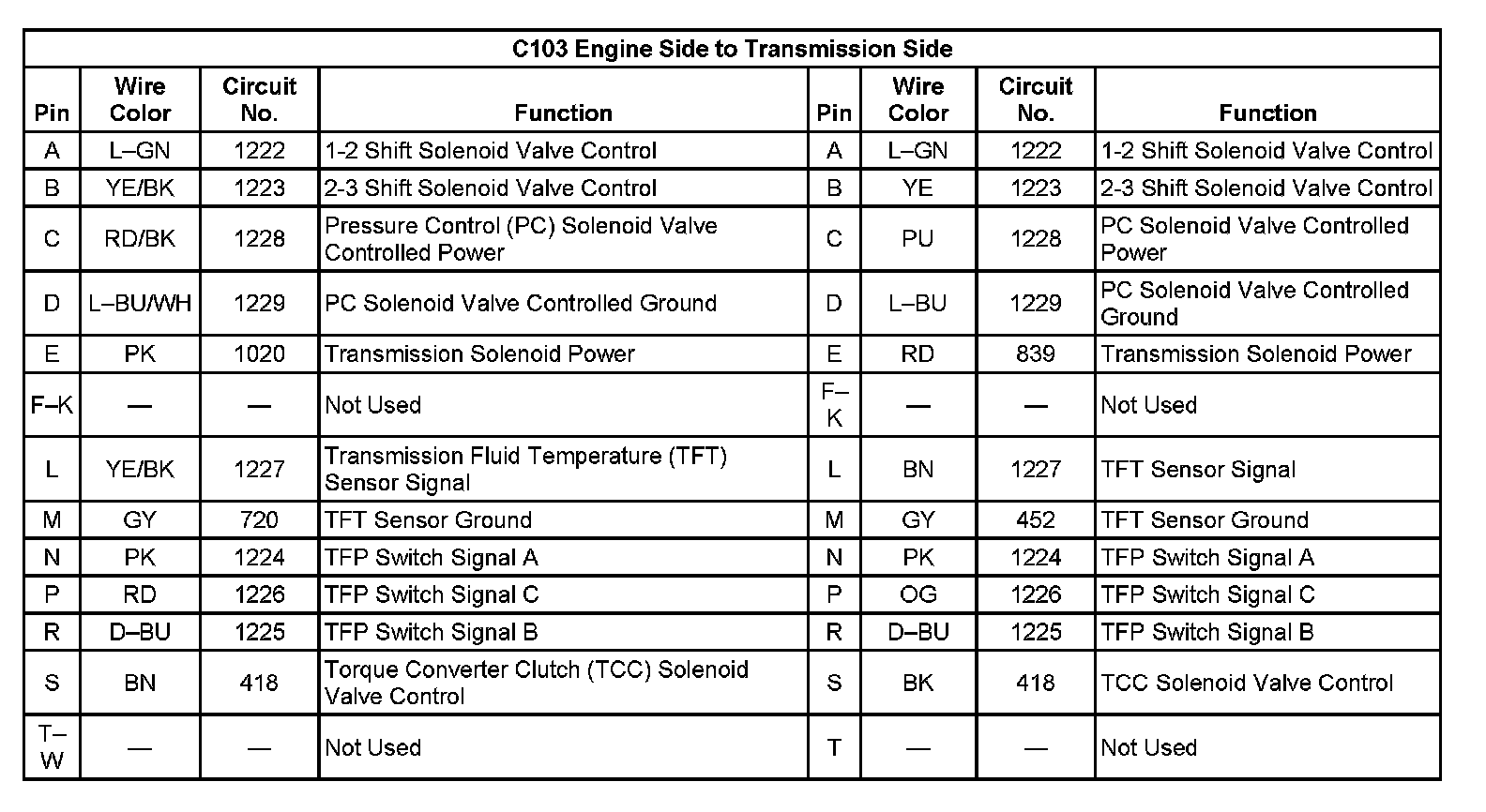

C103 Engine Side to Transmission Side







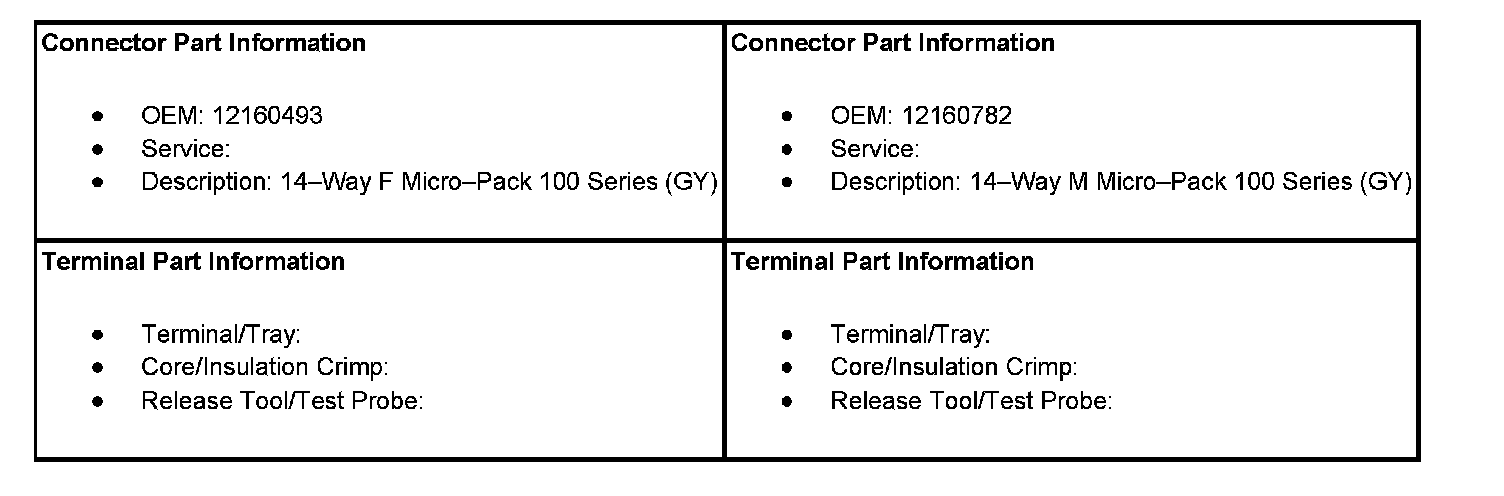

C103 Engine Side to Transmission Side:
