Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views >> 4L60-E/4L65-E/4L70-E Automatic Transmission

4L60-E/4L65-E/4L70-E Automatic Transmission

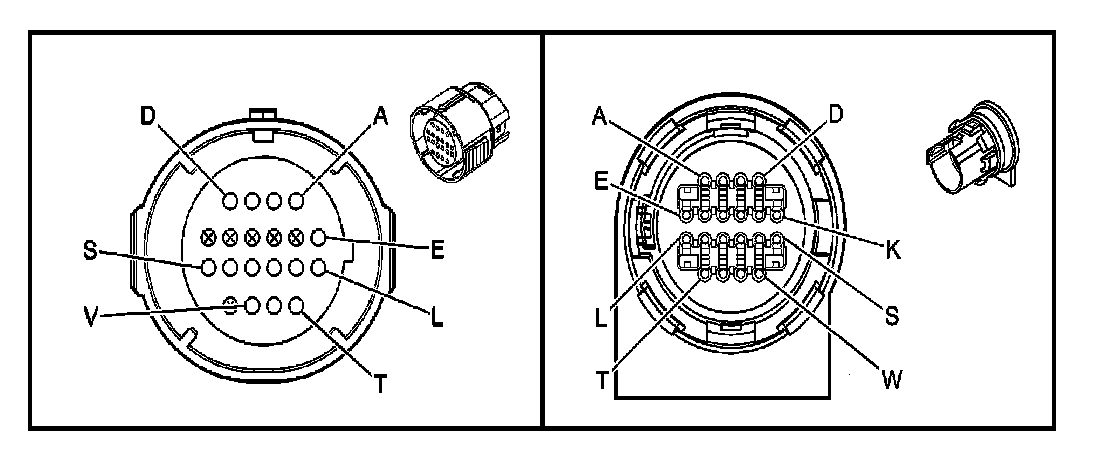

Automatic Transmission Inline 20-Way Connector End View

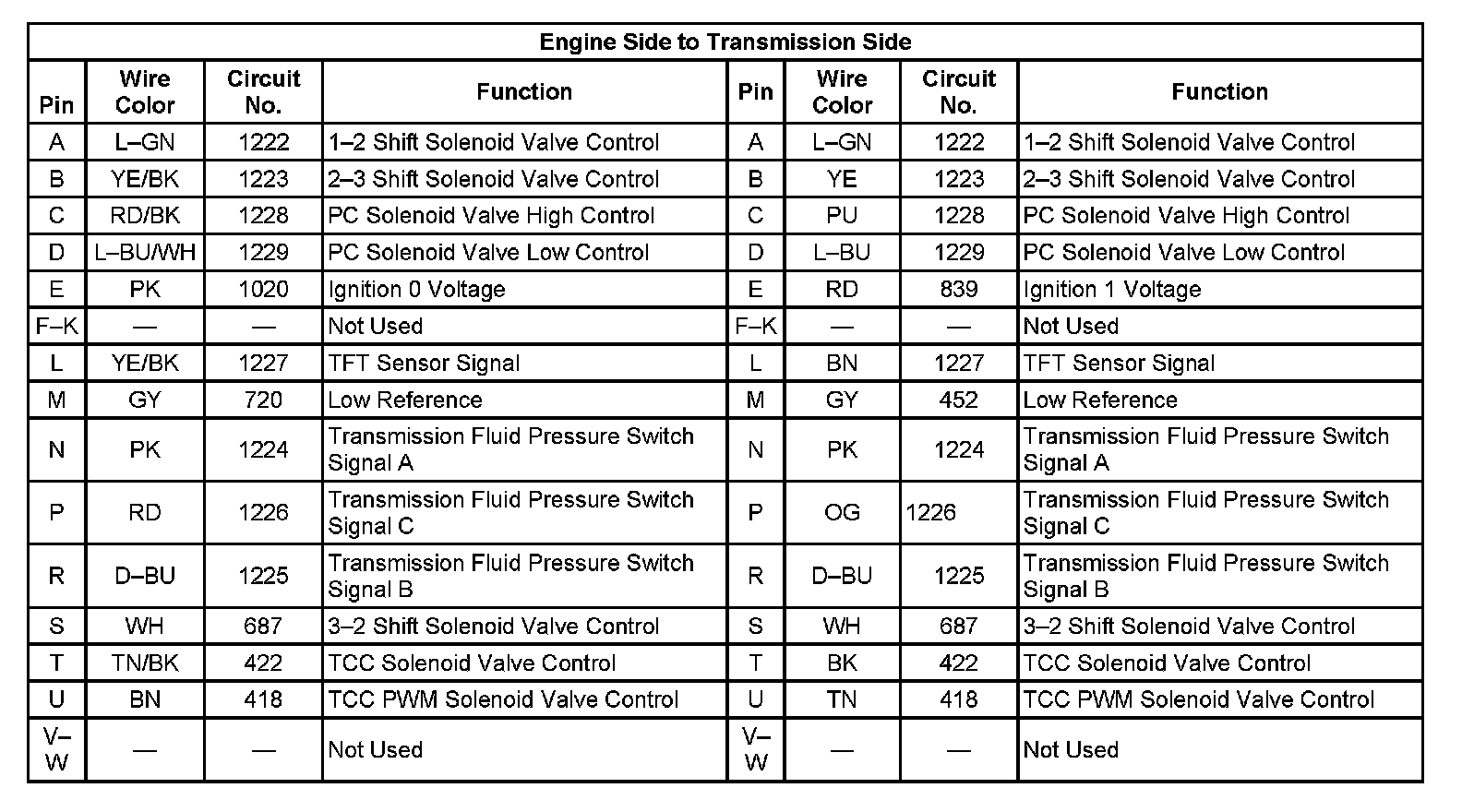

Engine Side to Transmission Side

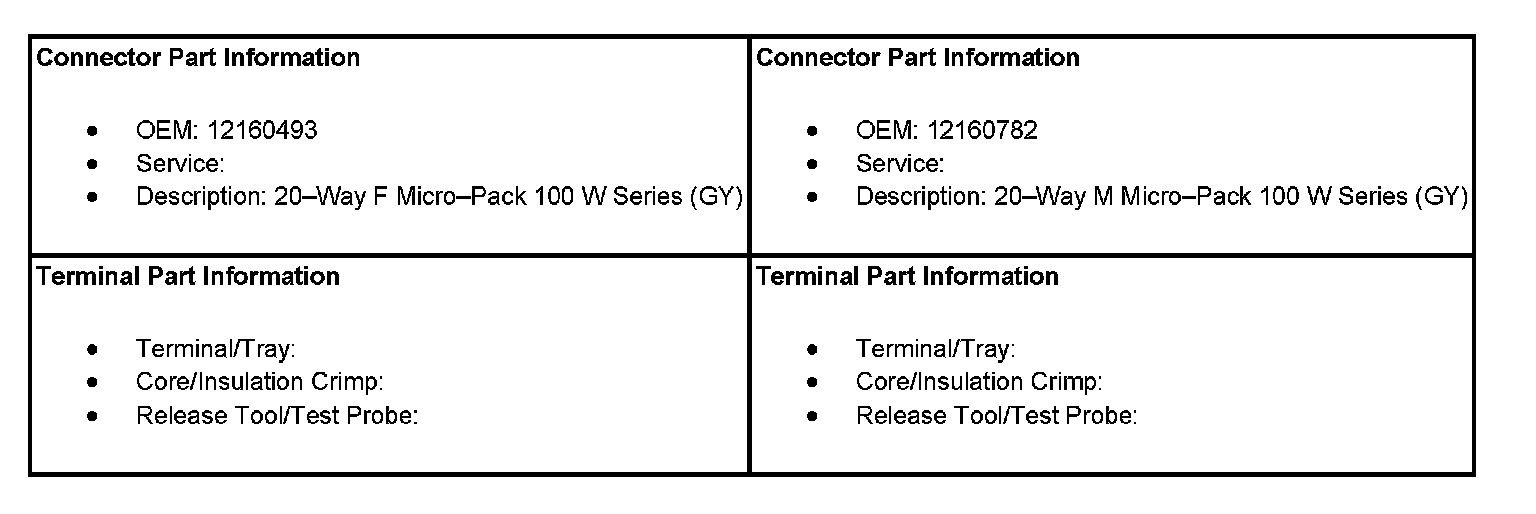

Engine Side to Transmission Side:




Engine Side to Transmission Side:




Engine Side to Transmission Side:
