Ignition Coil: Diagrams

Ignition Coil 1:




Ignition Coil 2:




Ignition Coil 3:

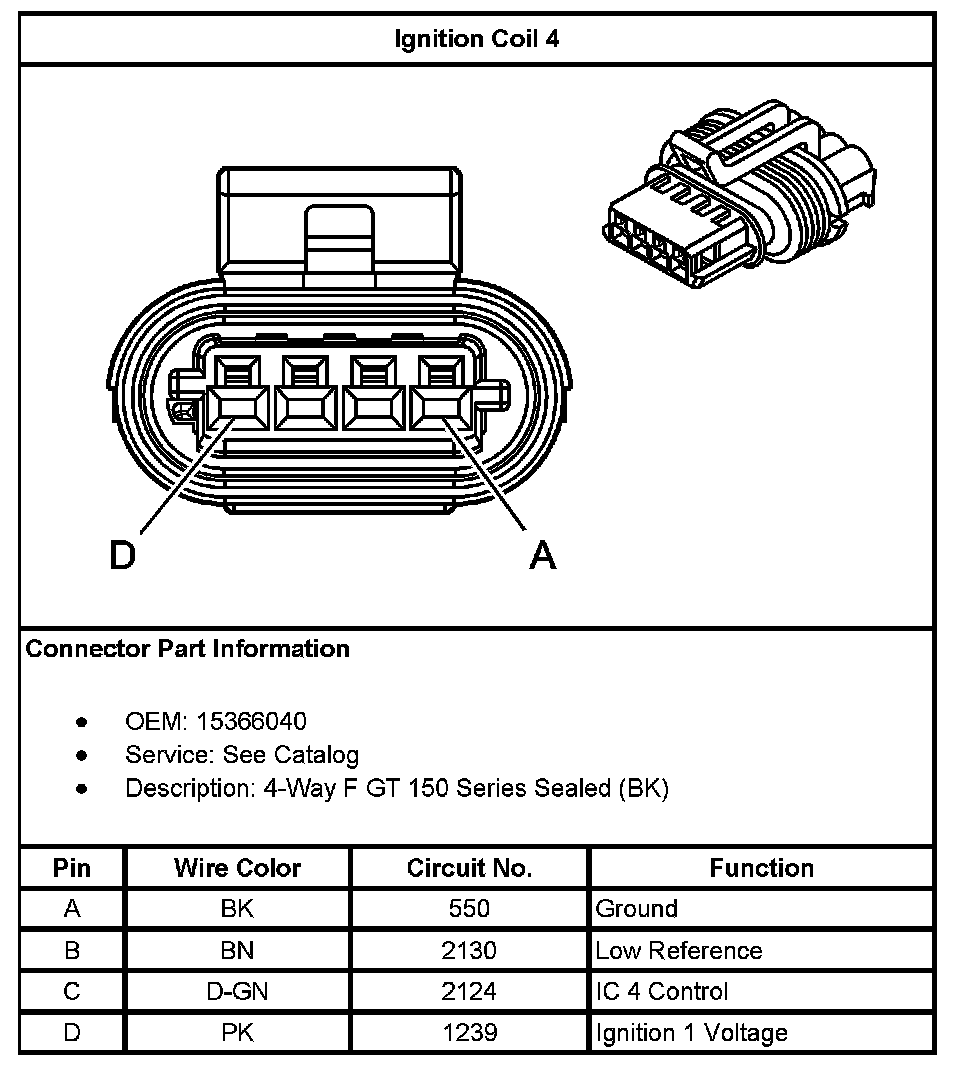

Ignition Coil 4:




Ignition Coil 5:




Ignition Coil 6:




Ignition Coil 7:

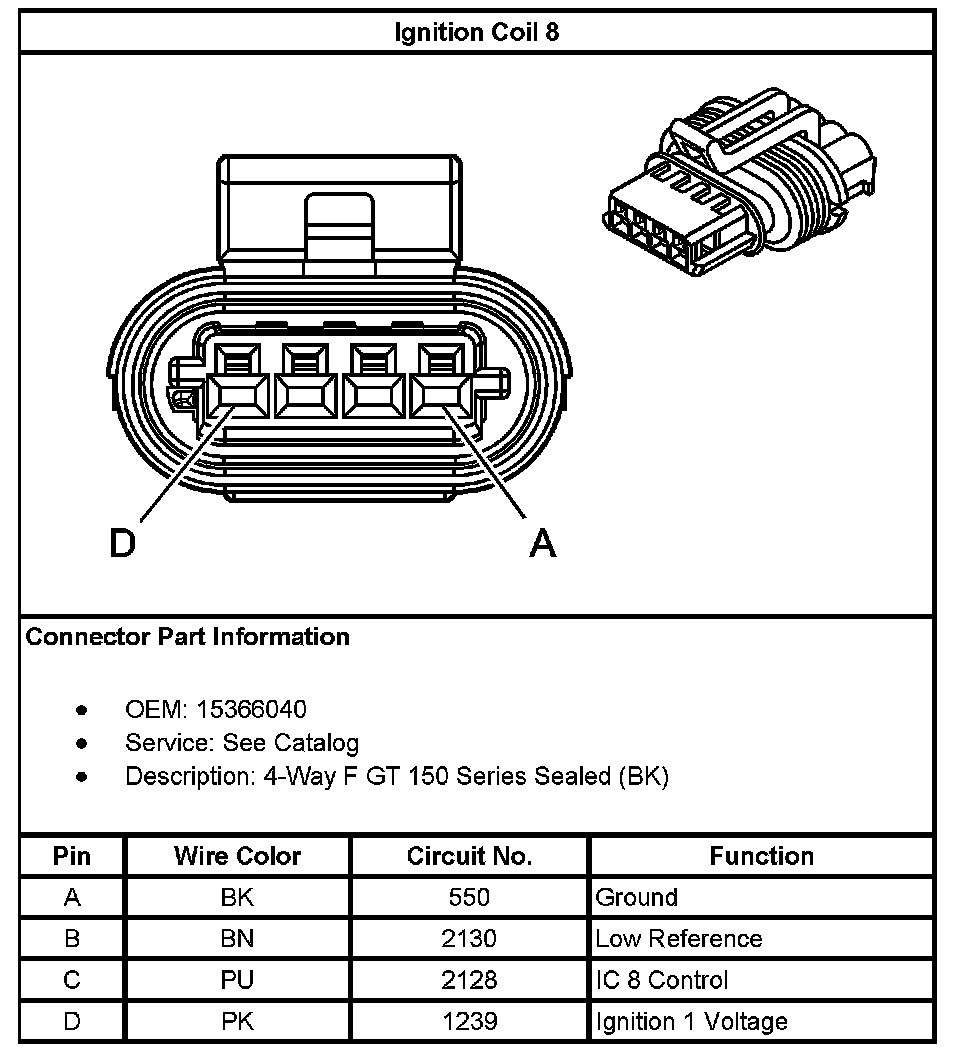

Ignition Coil 8:
