Park/Turn Signal Lamp Replacement

PARK/TURN SIGNAL LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Ensure the headlamp switch is in the OFF position.




2. Remove the headlamp.

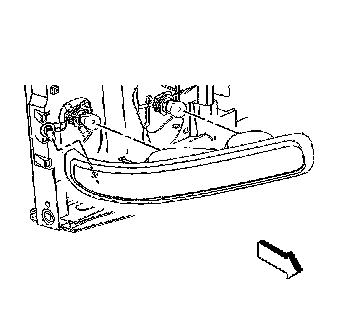

3. Remove the park/turn signal lamp assembly by pushing on the inboard retainer clip.
4. Disconnect the electrical connector from the park/turn signal lamp.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the park/turn signal lamp.
2. Install the lamp assembly.
3. Install the headlamp.
