Fog Lamp Bulb Replacement - Rear

FOG LAMP BULB REPLACEMENT - REAR

REMOVAL PROCEDURE

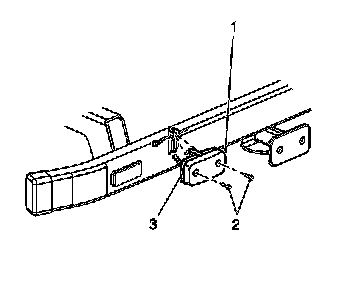

1. Remove the rear fog lamp lens (1) retaining screws (2).
2. Remove the bulb from the rear fog lamp assembly by twisting the bulb counterclockwise and pulling the bulb out.

CAUTION: Refer to Halogen Bulb Caution in Service Precautions.

INSTALLATION PROCEDURE




1. Install the bulb to the rear fog lamp assembly by inserting the bulb and twisting the bulb clockwise.
2. Install the rear fog lamp lens (1) retaining screws (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws (2) to 2 N.m (18 lb in).

3. Inspect the operation of the rear fog lamp.
