11. Coolant Air Bleed Pipe Removal

Coolant Air Bleed Pipe Removal





1. Remove the engine coolant air bleed pipe bolts (309).
2. Remove the pipe (307) with hose and seals (308).

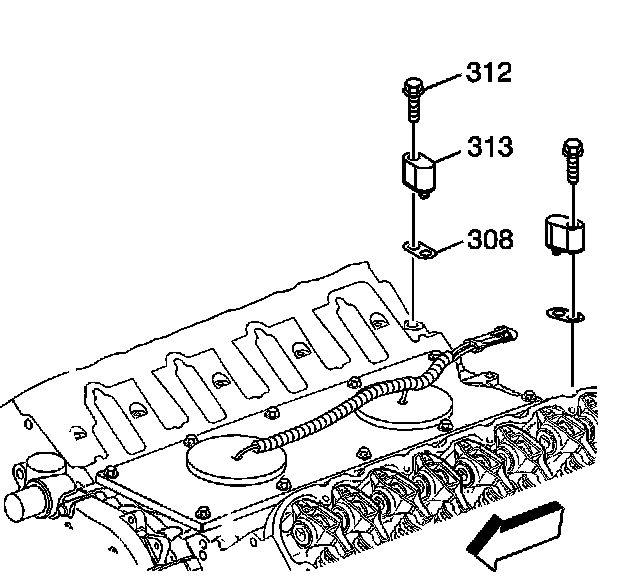

3. Remove the engine coolant air bleed cover bolts (312), covers (313), and seals (308).





4. Remove the seals (308) from the pipe and covers.
5. Discard the seals.

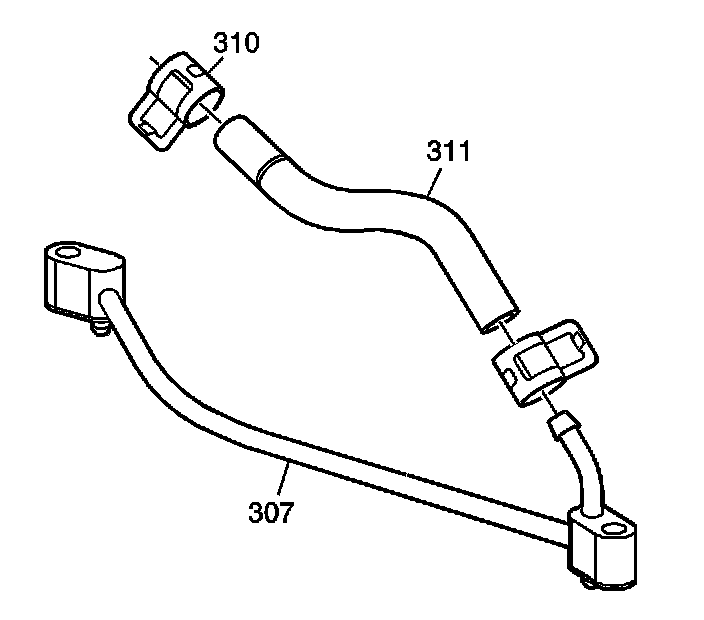

6. Remove the hose (311) and clamps (310) from the pipe (307).
