G410

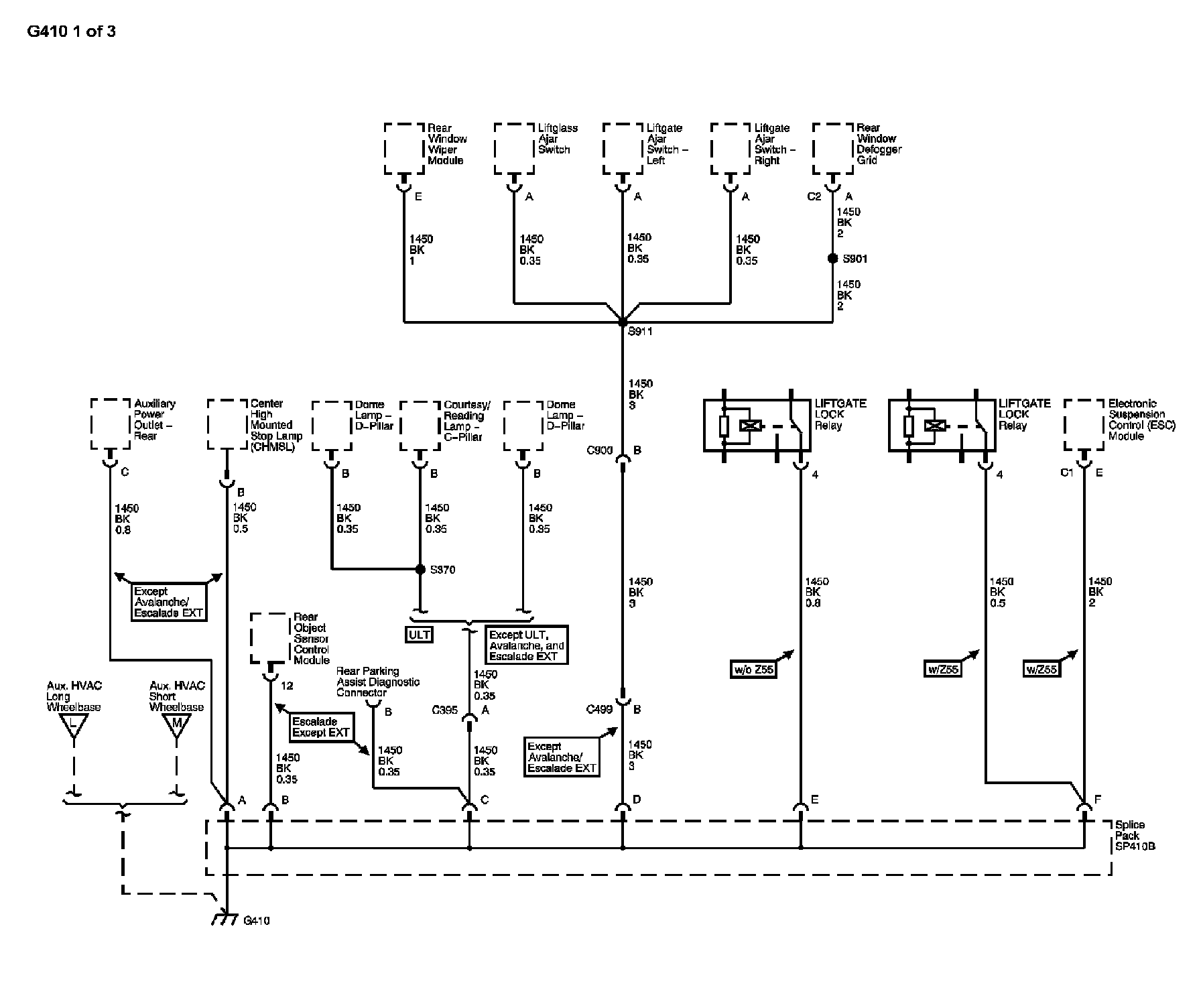

Ground Distribution Diagram 10 (1 Of 3):

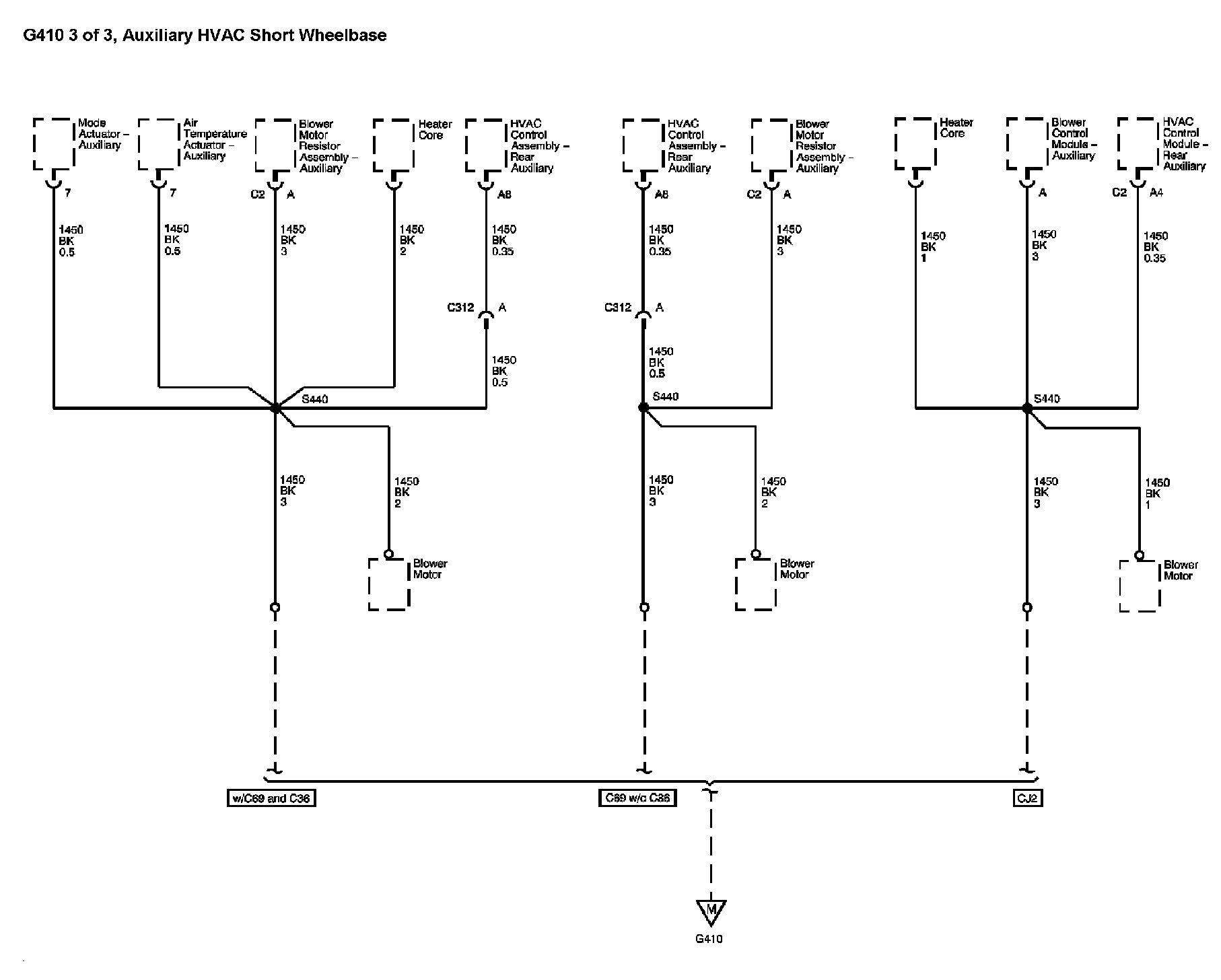

Ground Distribution Diagram 10 (3 Of 3):
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
