System Diagram



Engine Cooling Schematics

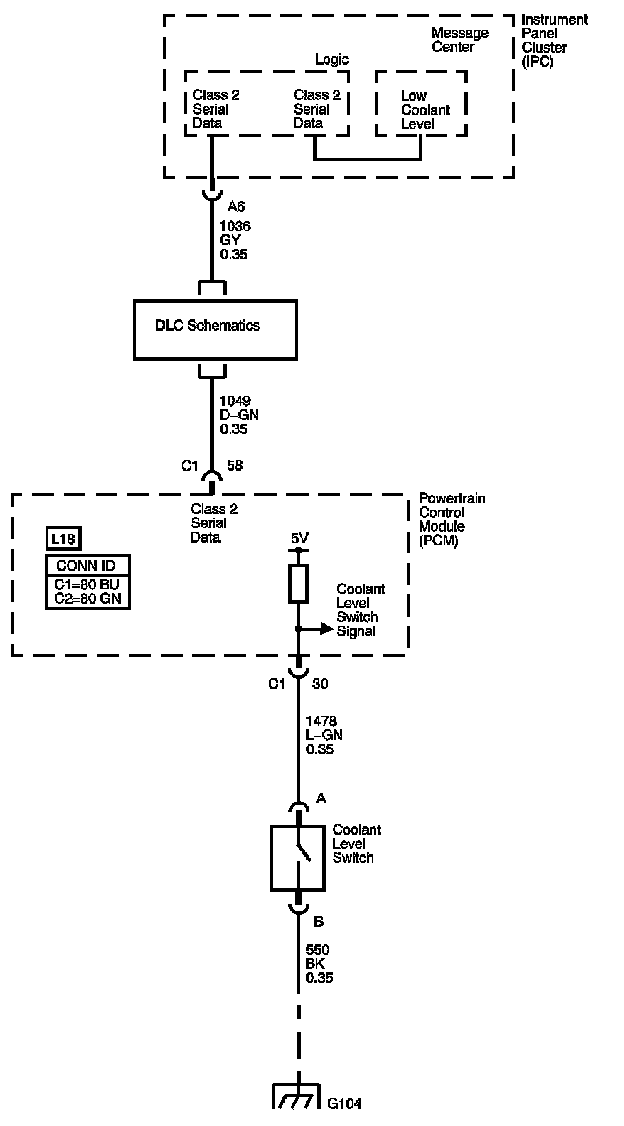

Engine Coolant Level Switch - 2500 Series

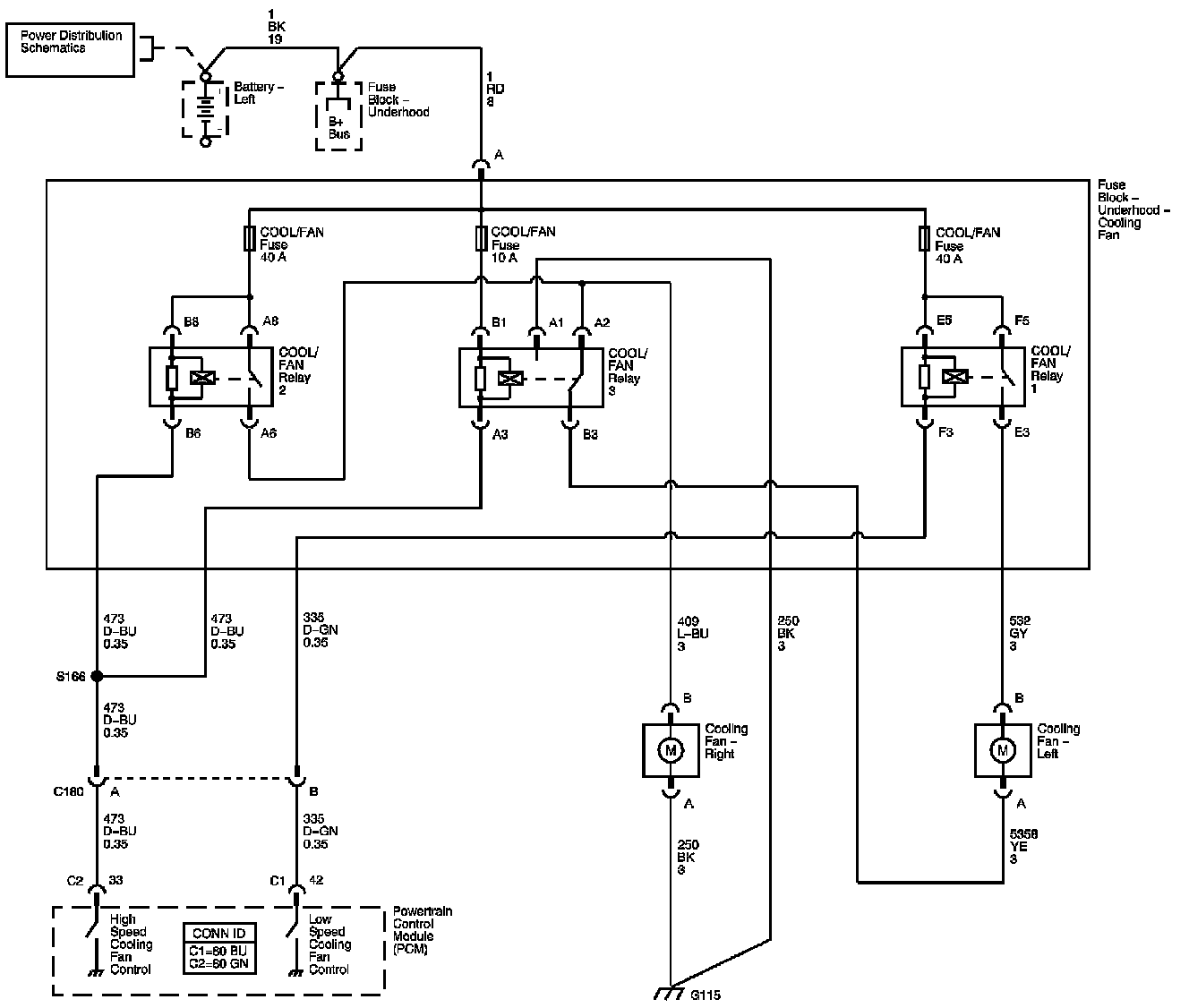

Fan Controls - 1500 Series
