Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Park/Turn Signal Lamp - LR

Park/Turn Signal Lamp - LR

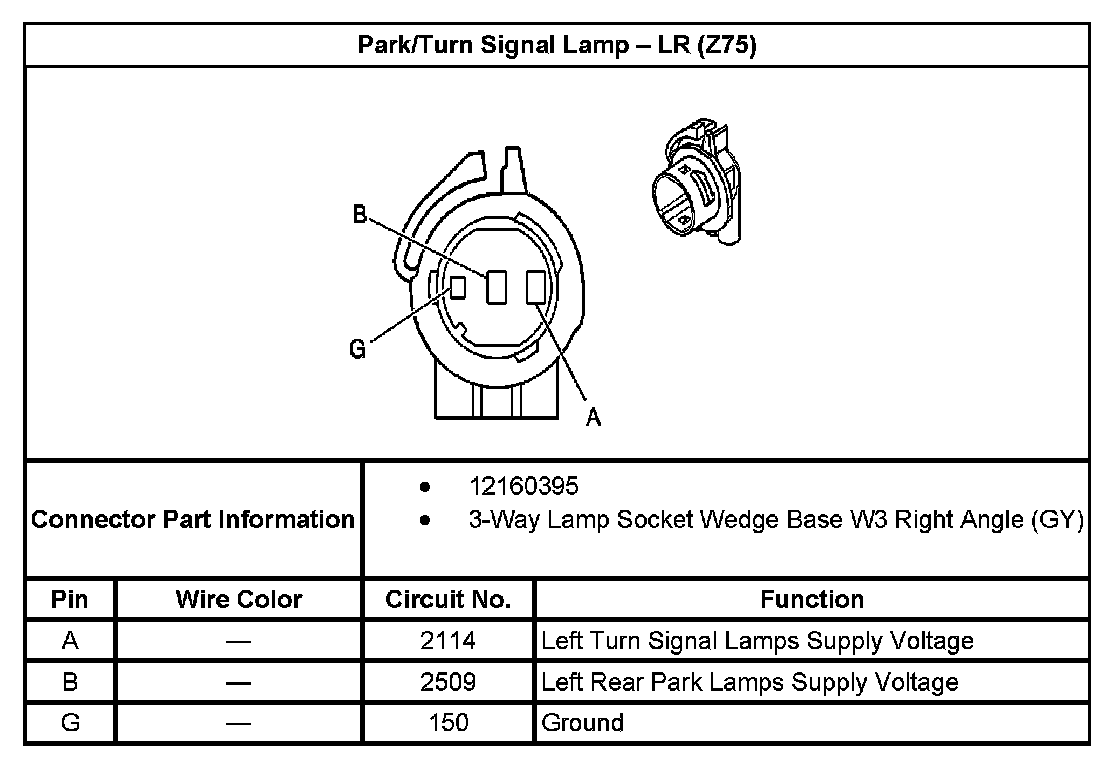

Park/Turn Signal Lamp - LR (With RPO Code Z75):
