Home
>>
Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 4WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Turn Signals
>>
Turn Signal Lamp
>>
Park/Turn Signal Lamp - LF
Park/Turn Signal Lamp - LF

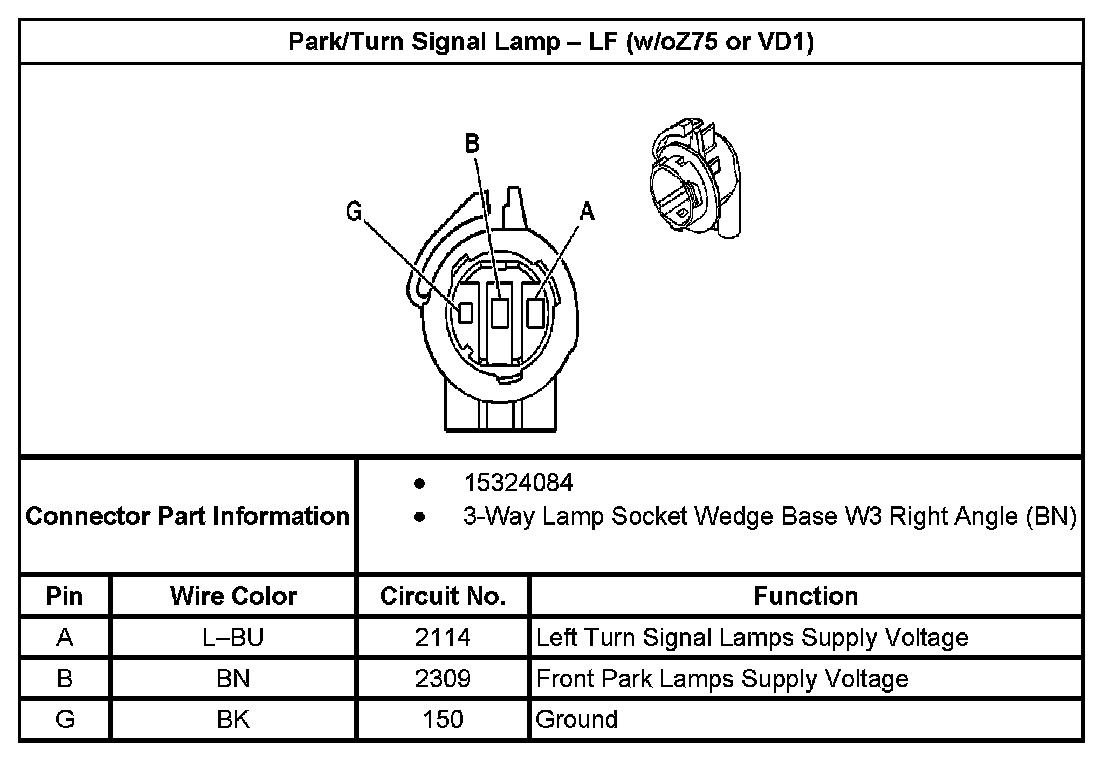

Park/Turn Signal Lamp - LF (without RPO Code Z75 Or VD1):

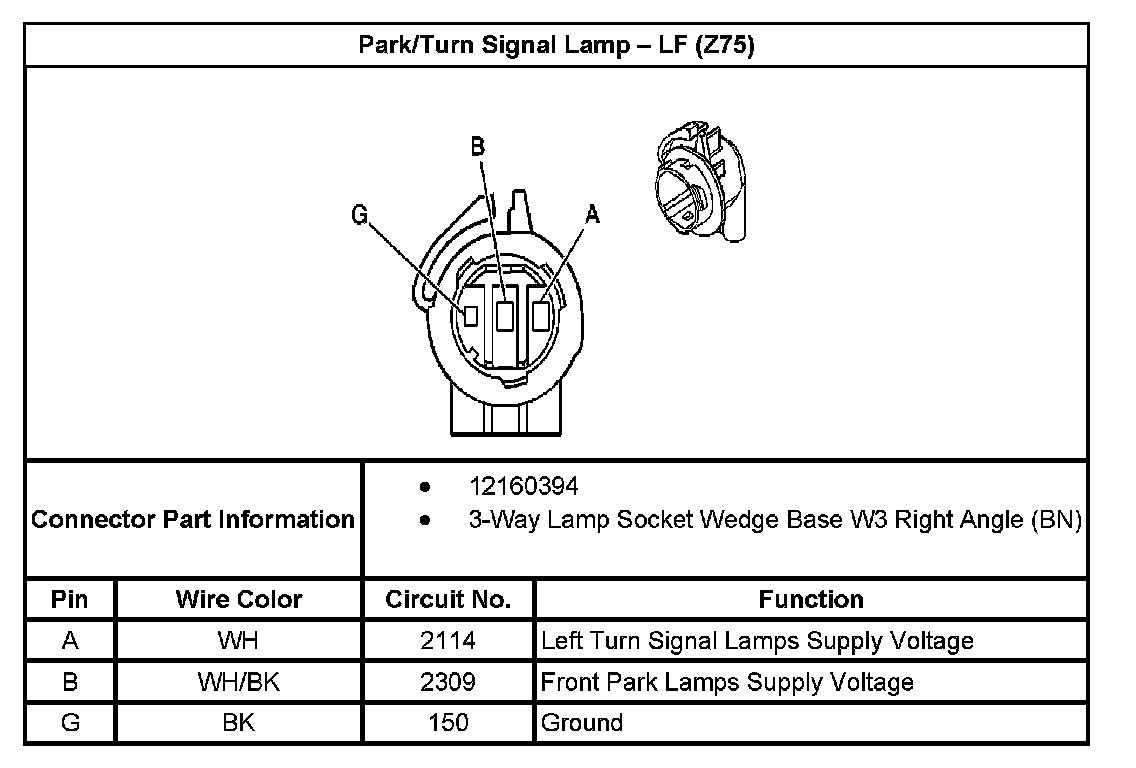

Park/Turn Signal Lamp - LF (With RPO Code Z75):
