Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Turn Signals >> System Diagram >> Turn Signal - LR

Turn Signal - LR

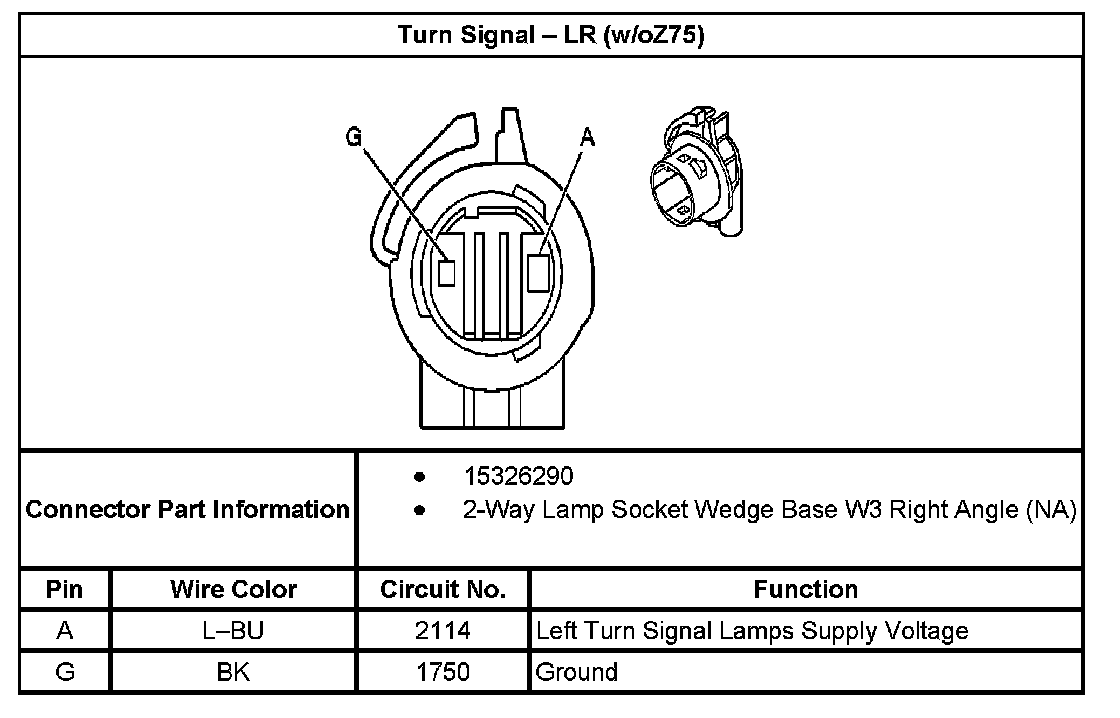

Turn Signal - LR (without RPO Code Z75):
