Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> System Diagram >> Roof Beacon Switch

Roof Beacon Switch

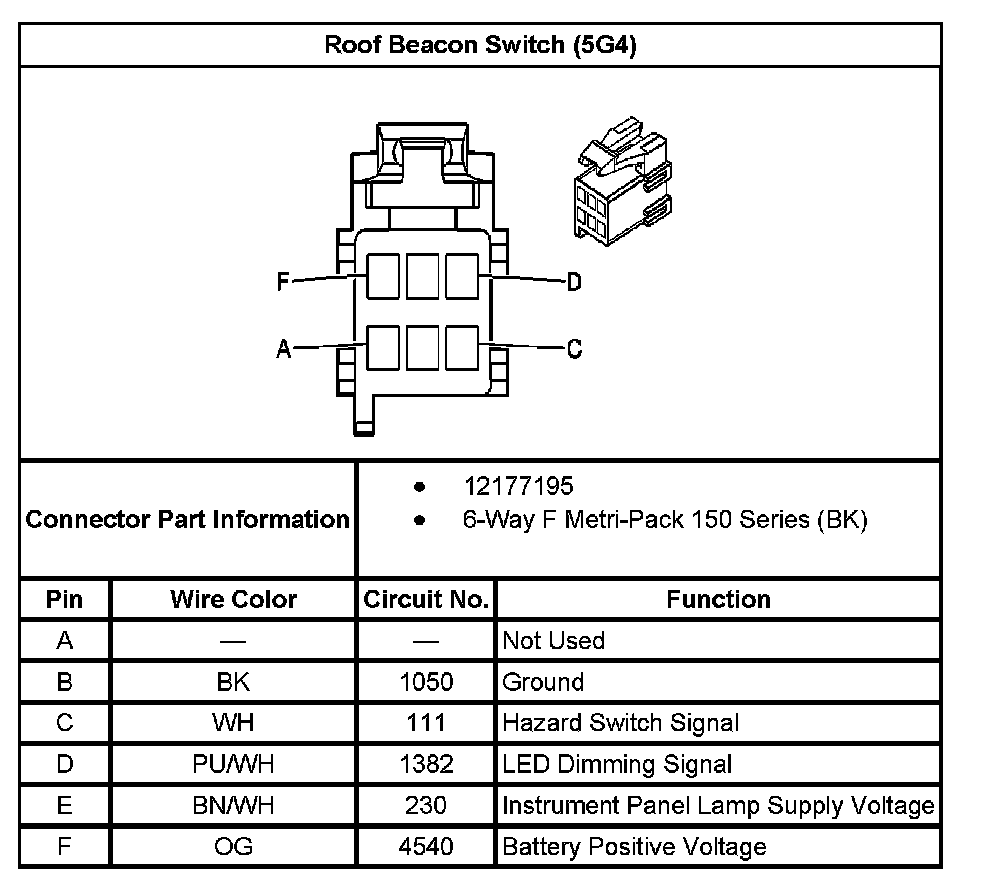

Roof Beacon Switch (With RPO Code 5G4):
