Headlamp - Low Beam

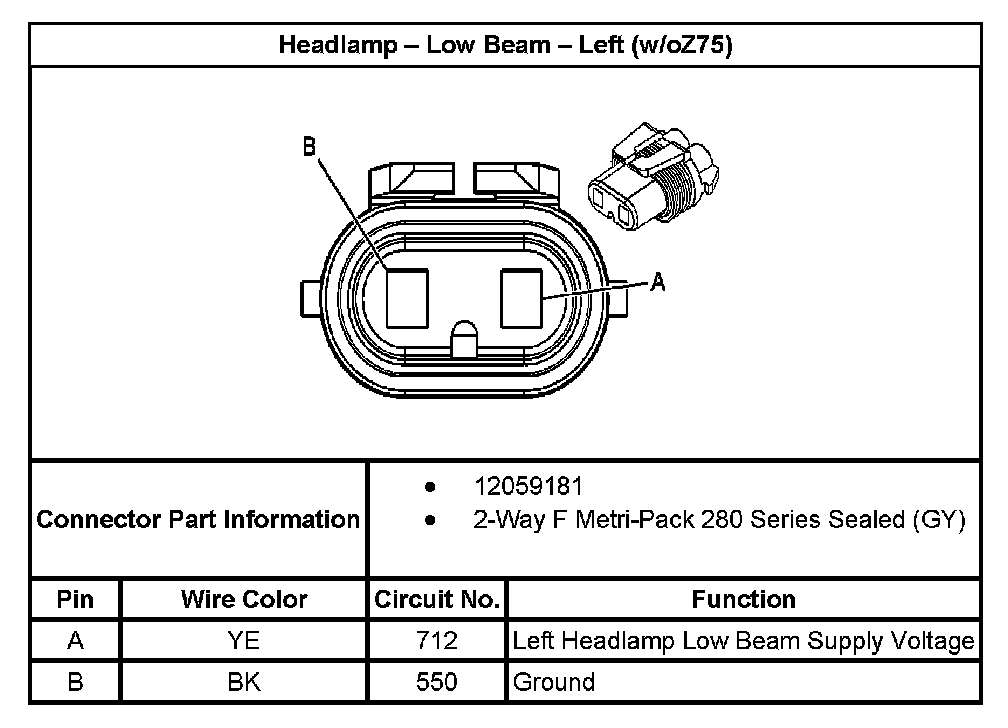

Headlamp - Low Beam - Left (without RPO Code Z75):

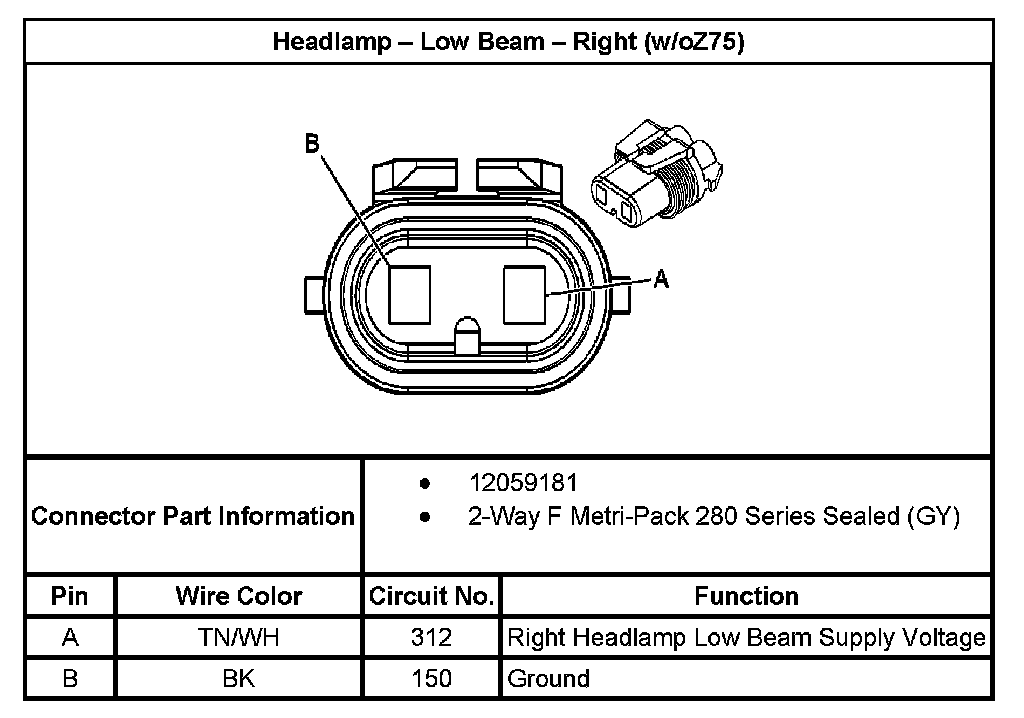

Headlamp - Low Beam - Right (without RPO Code Z75):
