Headlamp - High Beam

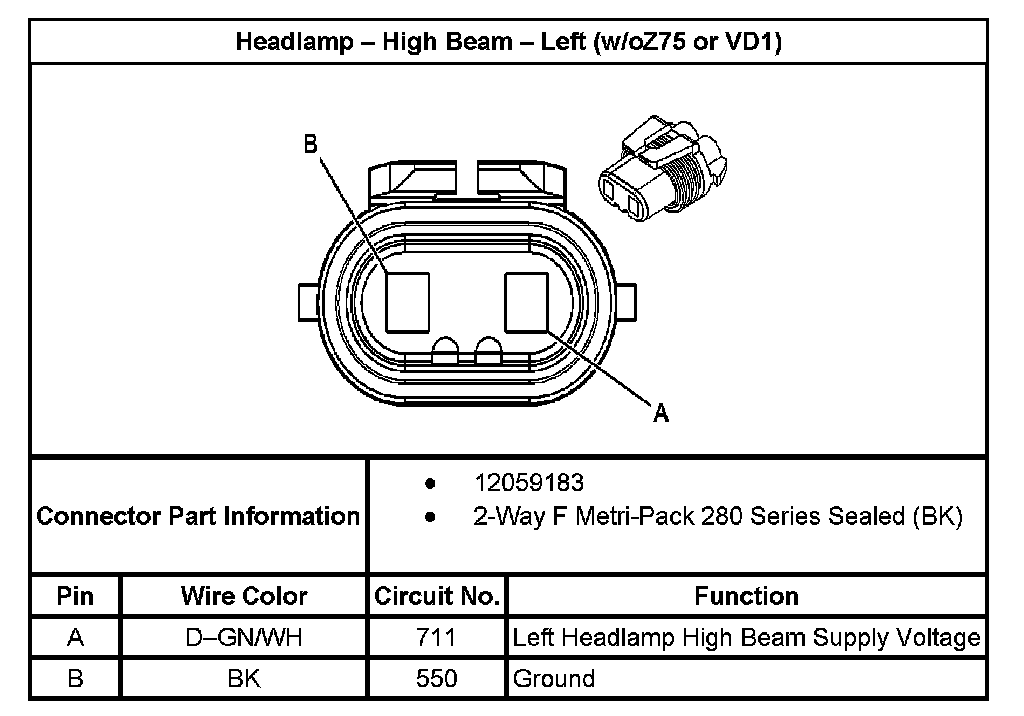

Headlamp - High Beam - Left (without RPO Code Z75 Or VD1):



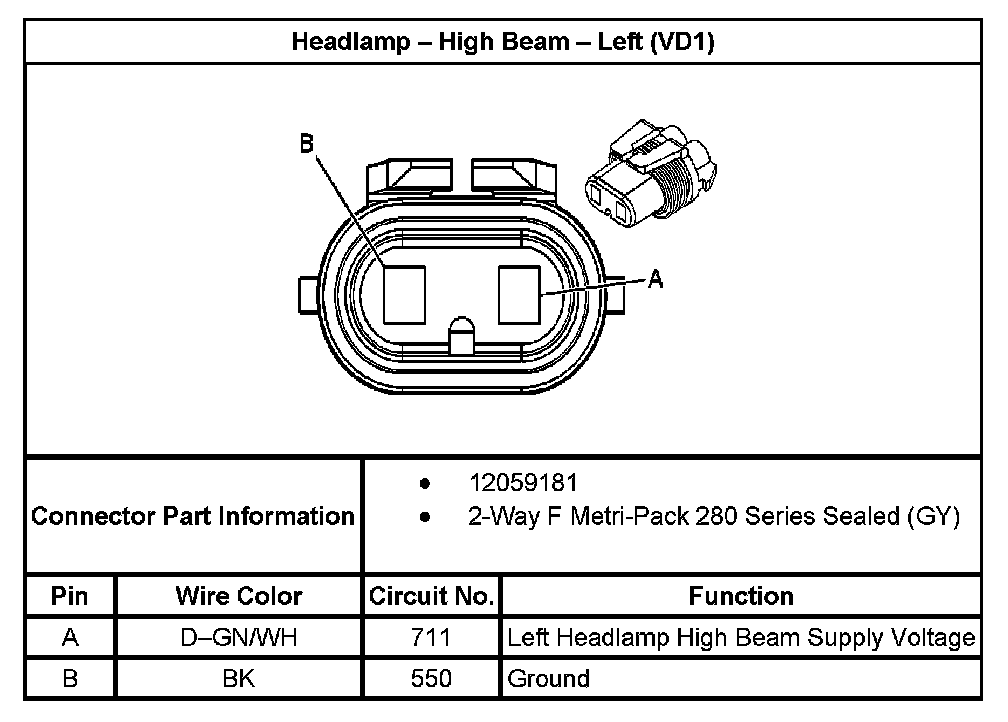

Headlamp - High Beam - Left (Without RPO Code VD1):

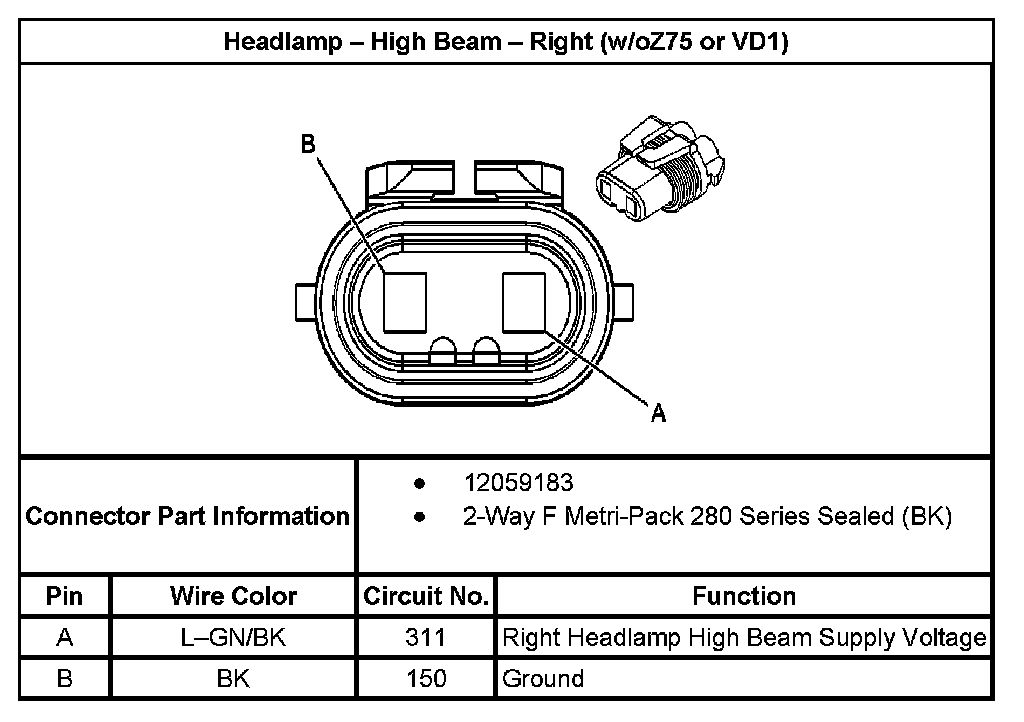

Headlamp - High Beam - Right (without RPO Code Z75 Or VD1):



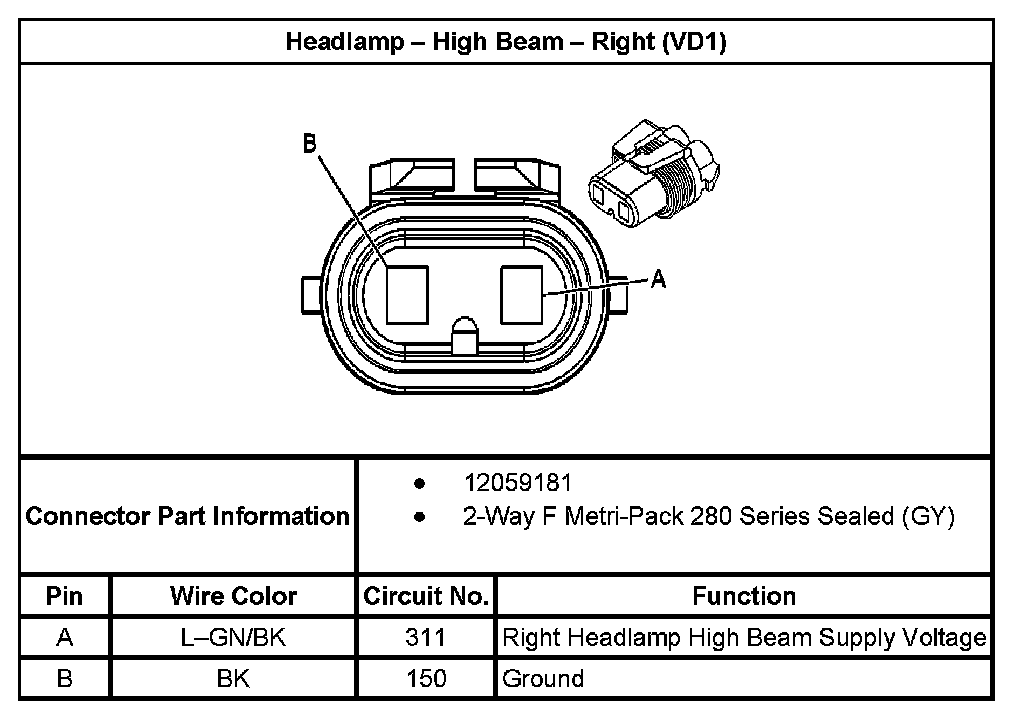

Headlamp - High Beam - Right (Without RPO Code VD1):
