HVAC Control Assembly - Front Auxiliary - With Heat and A/C
HVAC Control Assembly - Front Auxiliary - With Heat and A/C

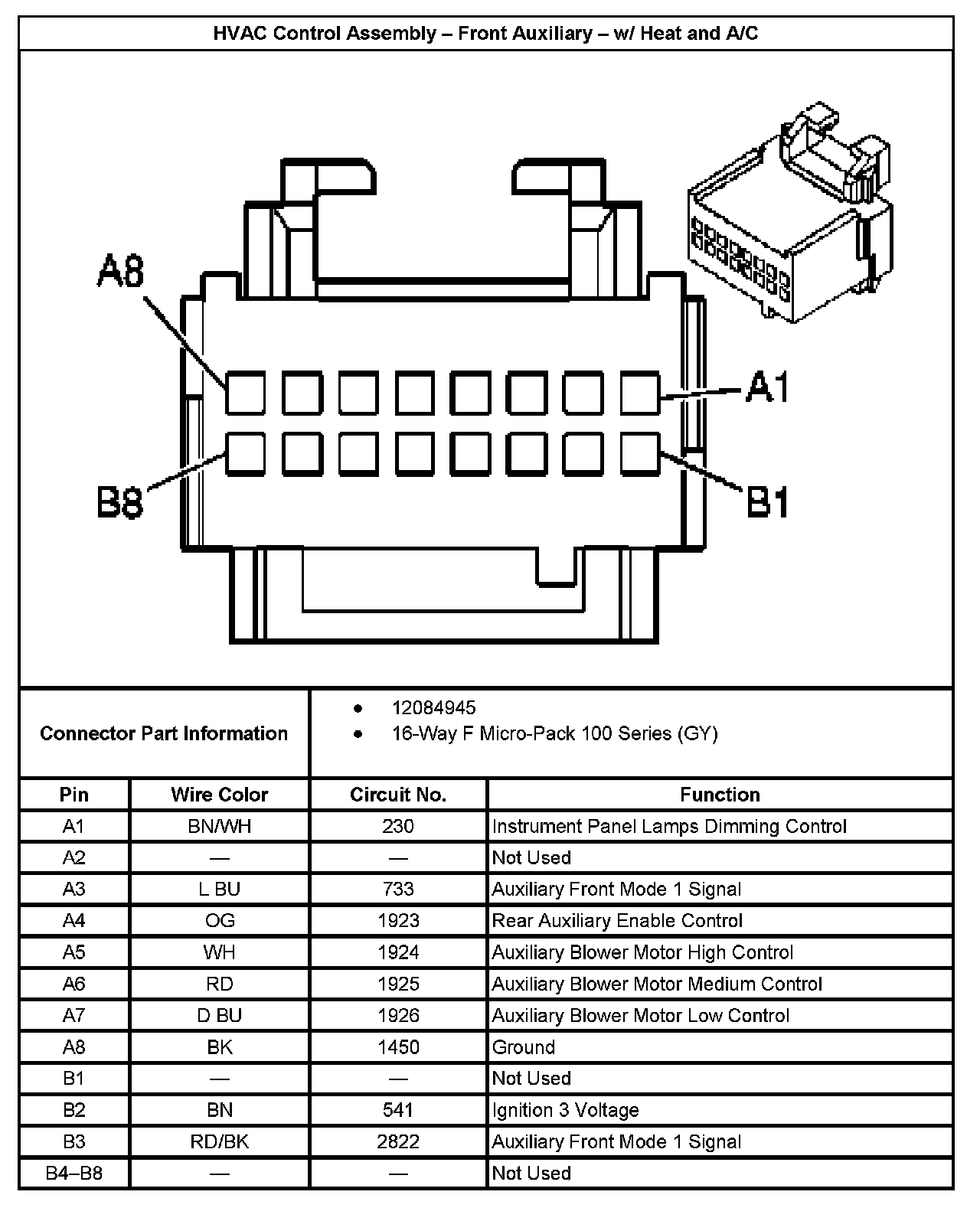

HVAC Control Assembly - Front Auxiliary - With Heat And A/C:
