Front Door Latch
>>
Door Latch Assembly - Front Passenger
Door Latch Assembly - Front Passenger
Door Latch Assembly - Front Passenger C1:

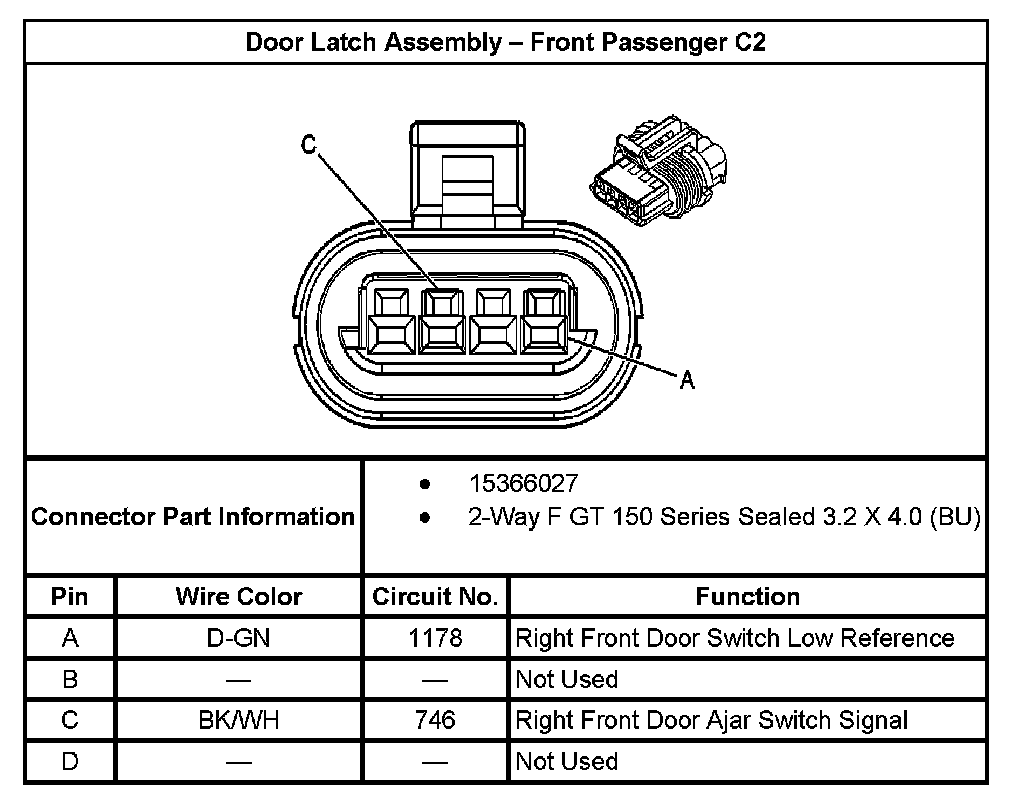

Door Latch Assembly - Front Passenger C2:
Door Latch Assembly - Passenger - C3:
