Auxiliary, Short Wheelbase

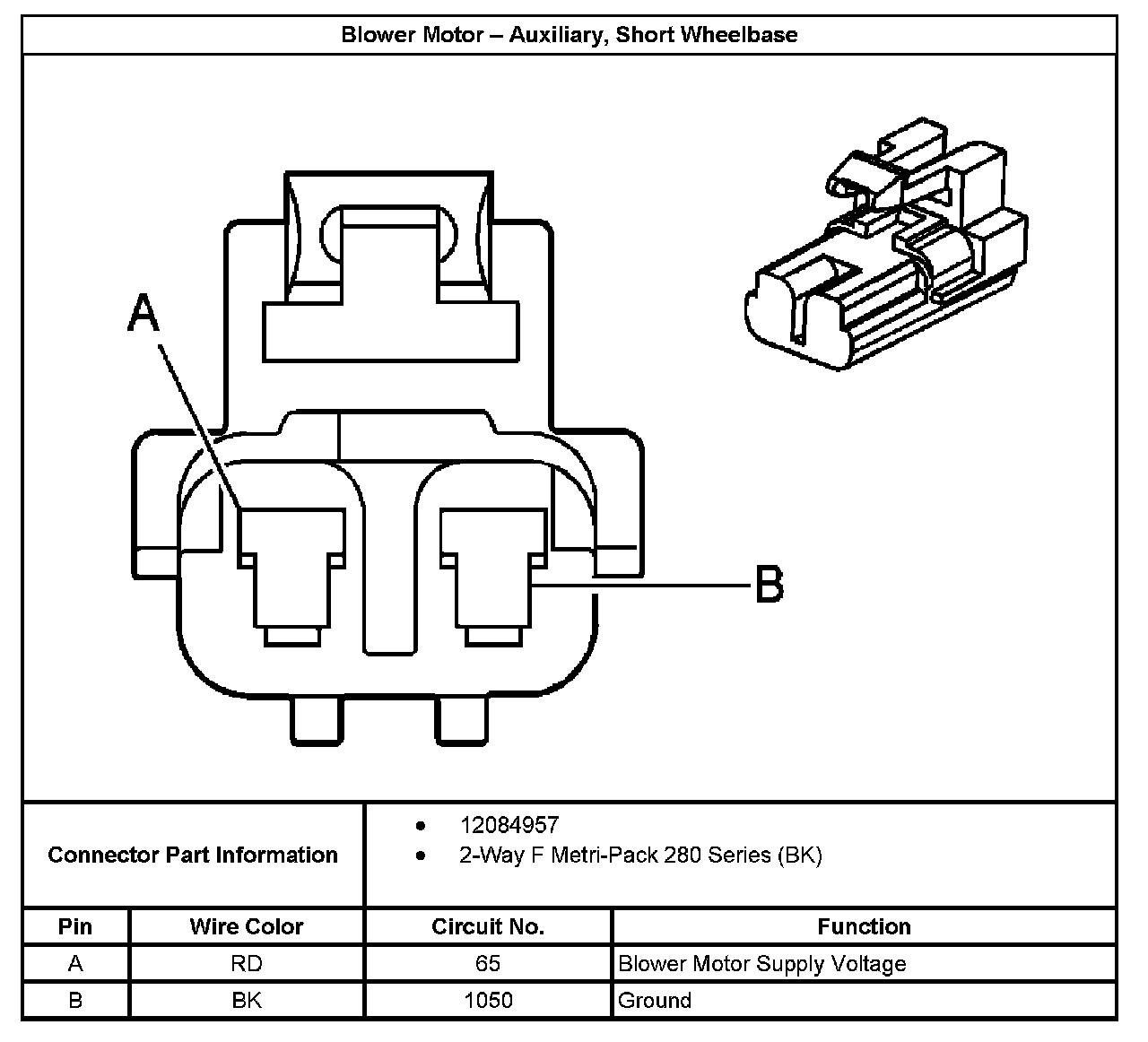

Blower Motor - Auxiliary, Short Wheelbase:

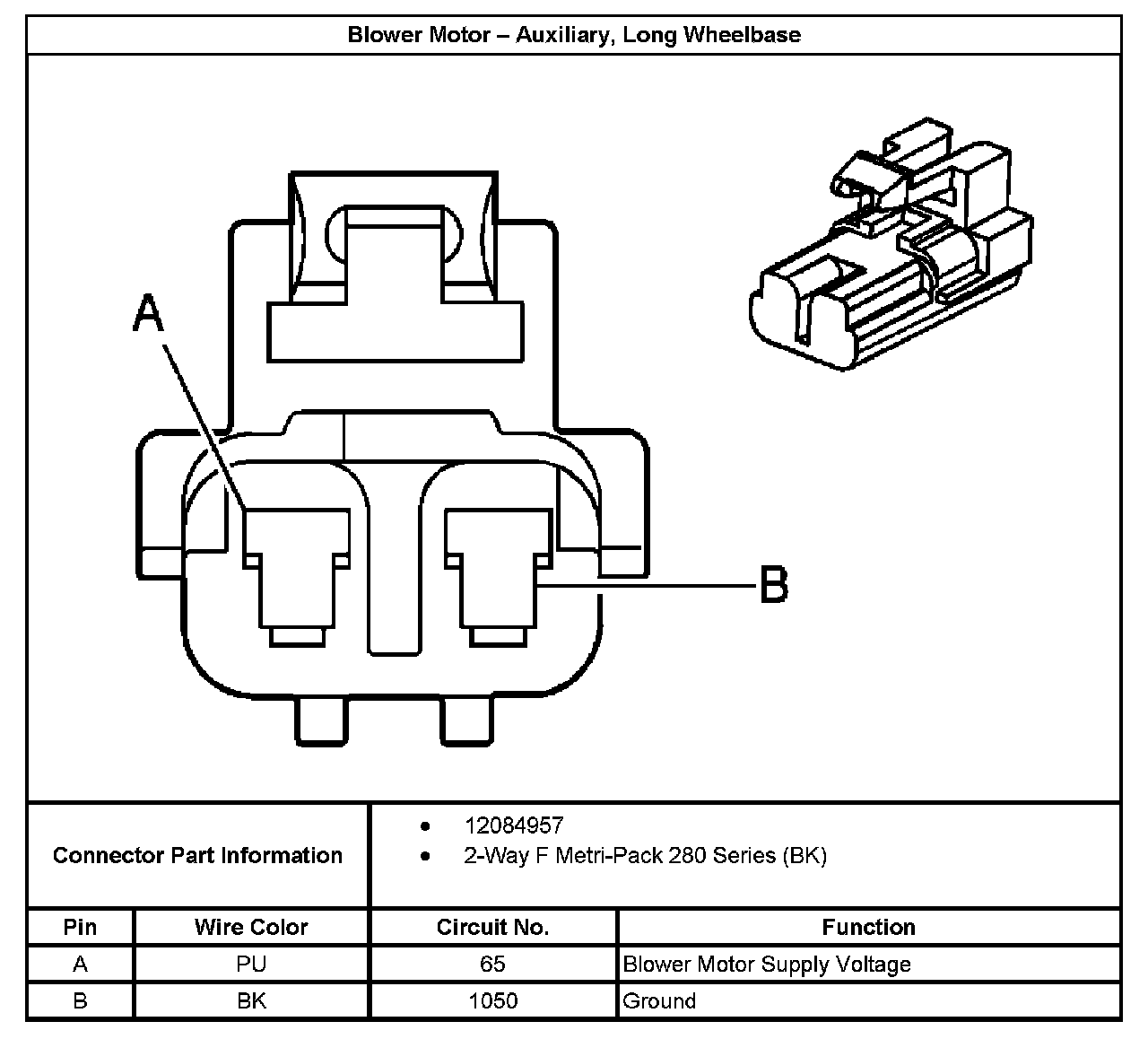

Blower Motor - Auxiliary, Long Wheelbase:
