4L80-E/4L85-E - Automatic Transmission
>>
2-3 Shift Solenoid (SS), Wiring Harness Side
2-3 Shift Solenoid (SS), Wiring Harness Side
2-3 Shift Solenoid (SS), Wiring Harness Side

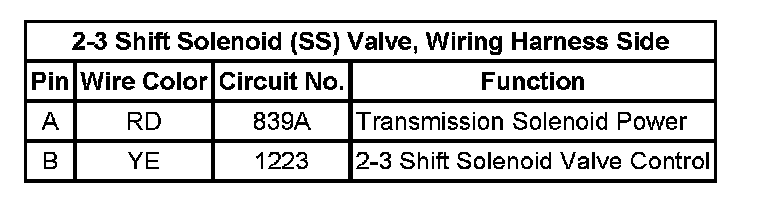

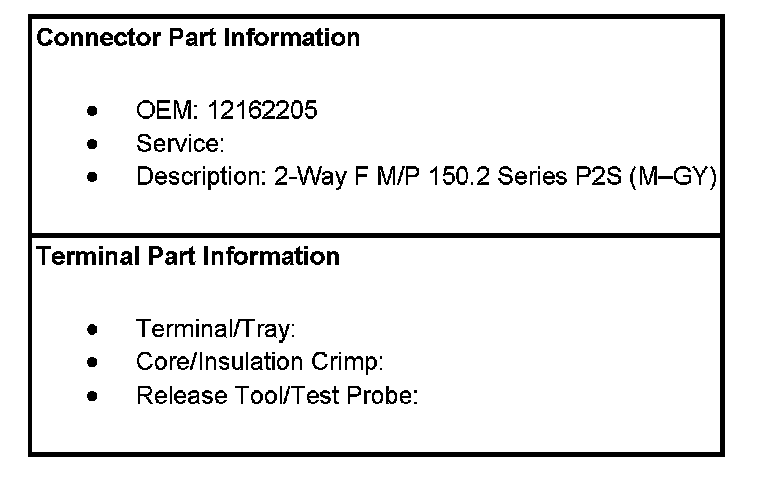

2-3 Shift Solenoid (SS), Wiring Harness Side:
