Disc Brake Backing Plate Replacement - Rear (15 Series W/NYS)

Caution: Refer to Brake Dust Caution.

Removal Procedure
1. Release the park brake.
2. Raise and support the vehicle.
3. Remove the tire and wheel assembly.

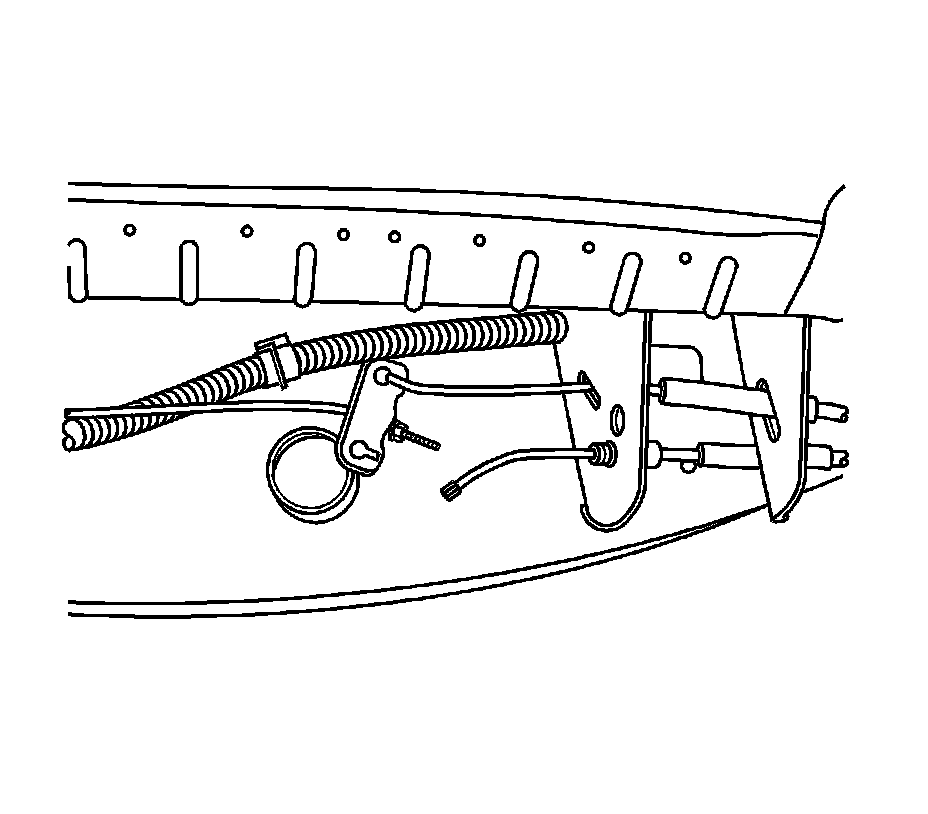

4. Relieve the tension from the park brake cable by pulling down on the intermediate cable, then release the cable from the equalizer bar.





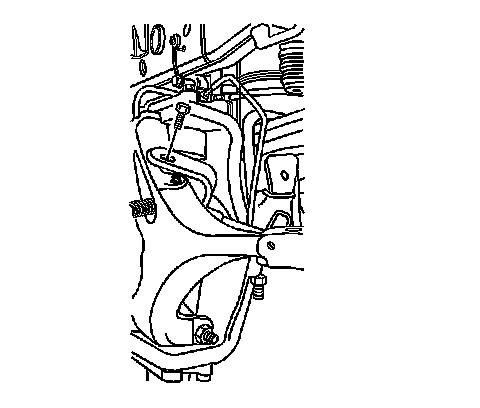

5. Remove the rear park brake bracket bolt.





6. Remove the park brake cable from the park brake actuator lever.
7. Remove the park brake shoe.
8. Remove the park brake actuator lever housing from the backing plate.
9. Remove the backing plate.

Installation Procedure
1. Install the park brake actuator lever housing to the backing plate.
2. Install the park brake shoe.
3. Adjust the park brake shoe.





4. Install the park brake cable to the park brake actuator lever.





5. Install the rear park brake bracket bolt.
^ Tighten the bolt to 61 N.m (45 lb ft).

Notice: Refer to Fastener Notice.





6. Install the park brake cable to the equalizer bar.
7. Install the tire and wheel assembly.
8. Lower the vehicle.
