Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls >> (W/O JL4 or NW7)

(W/O JL4 or NW7)

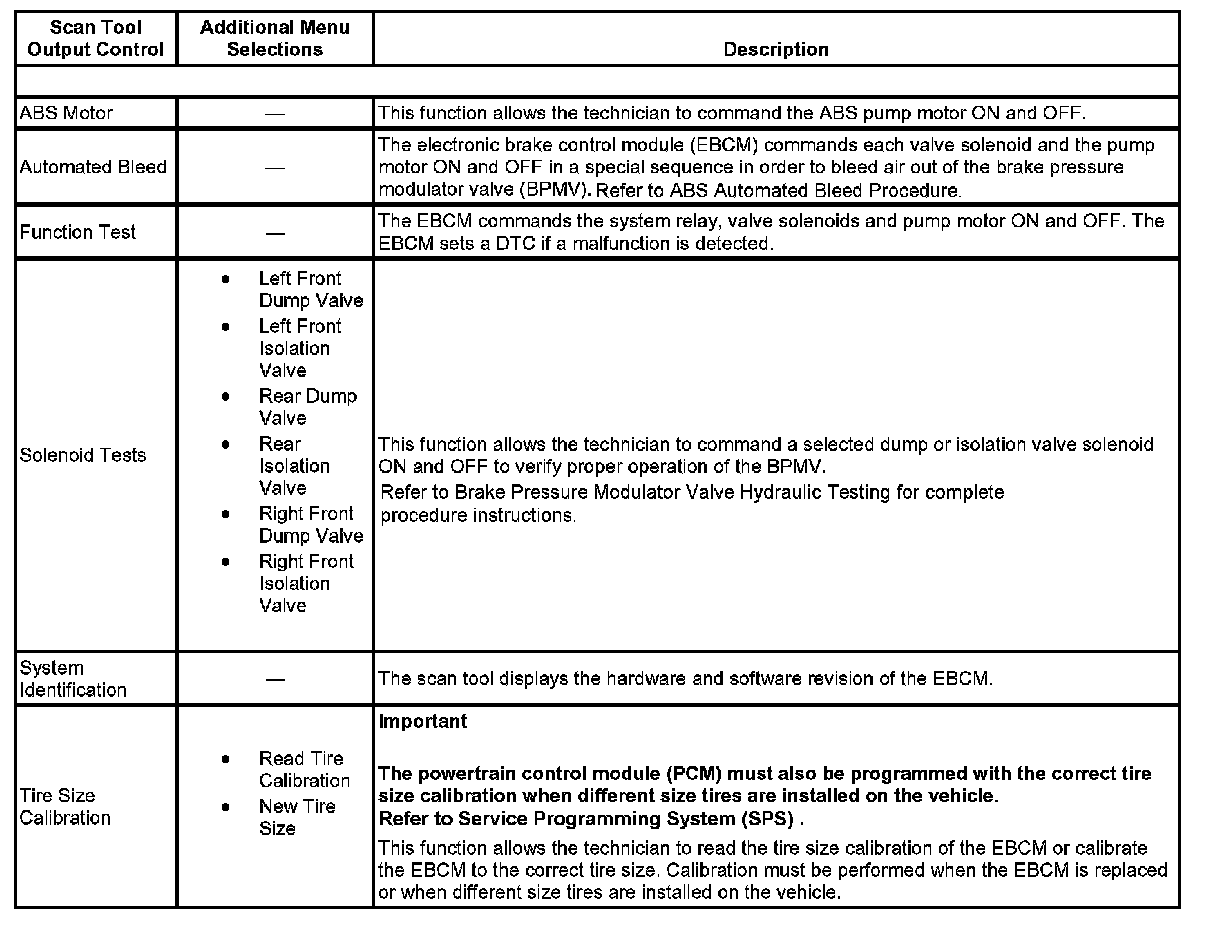

Scan Tool Output Controls (W/O JL4 or NW7):
