Heated and Cooled Seat Switch Replacement (Front-Platinum Models)

HEATED AND COOLED SEAT SWITCH REPLACEMENT (FRONT-PLATINUM MODELS)

REMOVAL PROCEDURE
1. Remove the floor console bezel.

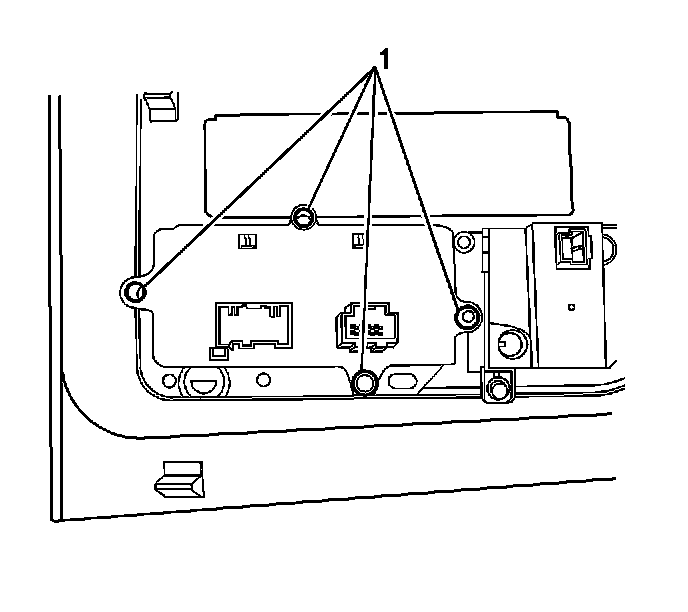

2. Remove the 4 retaining screws (1).
3. Remove the switch assembly from the console bezel.

INSTALLATION PROCEDURE




1. Install the switch assembly to the bezel.
2. Install the 4 retaining screws (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).

3. Install the floor console bezel.
