Seat Cushion Frame Replacement - Rear (60/40 Split - 50/50 Split)

Seat Cushion Frame Replacement - Rear (60/40 Split - 50/50 Split)

Removal Procedure

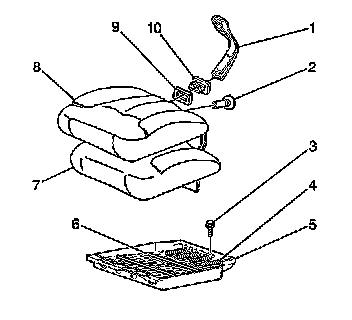

1. Remove the seat cushion trim cover (8) and the pad (7).




2. Remove the bolts from the hinge assembly, if equipped with folding seats.
3. Remove the seat cushion frame (5).

Installation Procedure




1. Install the seat cushion frame (5).






Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts to the hinge assembly, if removed.

Tighten to 7 N.m (61 lb in).

3. Install the seat cushion trim cover (8) and the pad (7).
