Blower Replacement - Cupholder - Front Floor Console

Blower Replacement - Cupholder - Front Floor Console

Removal Procedure

1. Remove the console cup holder assembly.

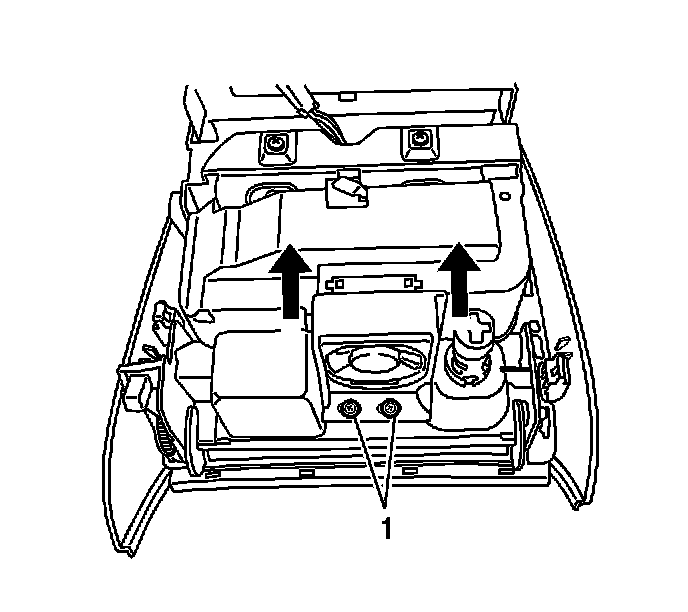

2. Remove the 2 retaining screws.
3. Slide the blower assembly upwards.

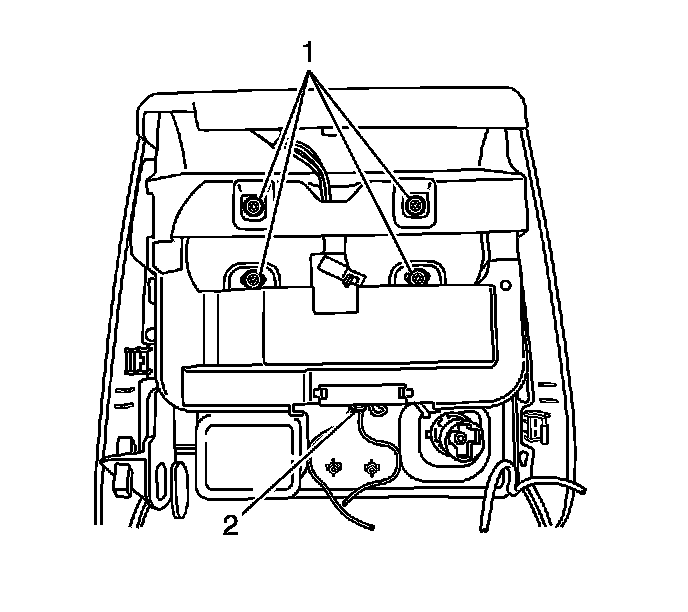

4. Insert a small flat-bladed tool to release the tab (2) that secures the connector in place.
5. Remove the blower from the cupholder assembly.

Installation Procedure




1. Install the connector (2).
2. Slide the blower assembly down.
3. Install the blower assembly.

Notice: Refer to Fastener Notice in Service Precautions.




4. Install the 2 retaining screws.

Tighten the screws to 7 N.m (62 lb in).

5. Install the console cup holder assembly.
