Carpet Replacement - Rear



Carpet Replacement - Rear

Removal Procedure

1. Remove the rear seat.
2. Remove the rear door sill trim plates.
3. Remove the endgate or the liftgate door sill trim plate.
4. Remove the trim panels for the rear quarter.

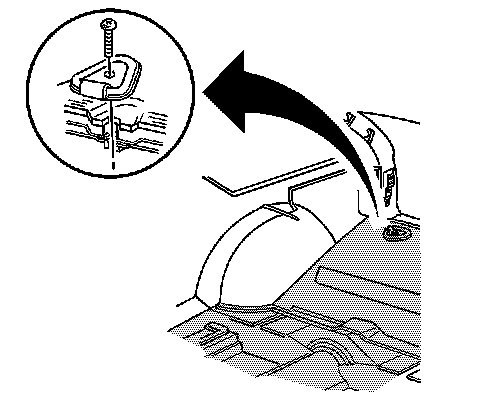

5. Remove the bolts that retain the cargo tie down hooks to the floor.
6. Remove the cargo tie down hooks.

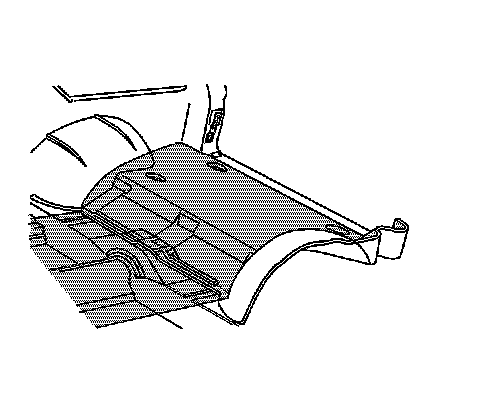

7. Remove the rear carpet from the vehicle.

Installation Procedure






Caution: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

1. Install the rear carpet to the vehicle.




2. Install the cargo tie down hooks.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolts that retain the cargo tie down hooks to the floor.

Tighten the bolts to 35 N.m (26 lb ft).

4. Install the endgate or the liftgate door sill trim plate.
5. Install the trim panels for the rear quarter.
6. Install the door sill trim plates.
7. Install the rear seat.
