Arm Rest: Service and Repair



Armrest Replacement

Removal Procedure




1. Remove the door trim panel.
2. Remove the armrest retaining screws.

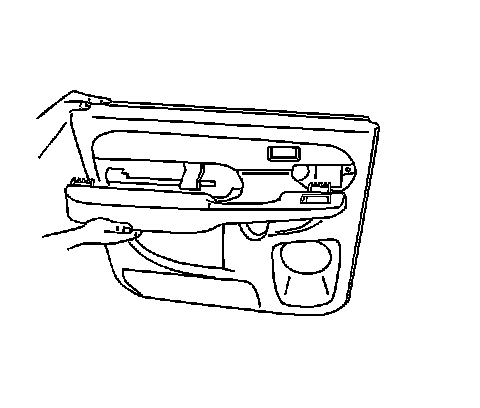

3. Remove the armrest from the panel.

Installation Procedure




1. Install the armrest from the panel.
2. Install the armrest retaining screws.
3. Install the door trim panel.
