Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Cargo Door Ajar Indicator Inoperative

Cargo Door Ajar Indicator Inoperative

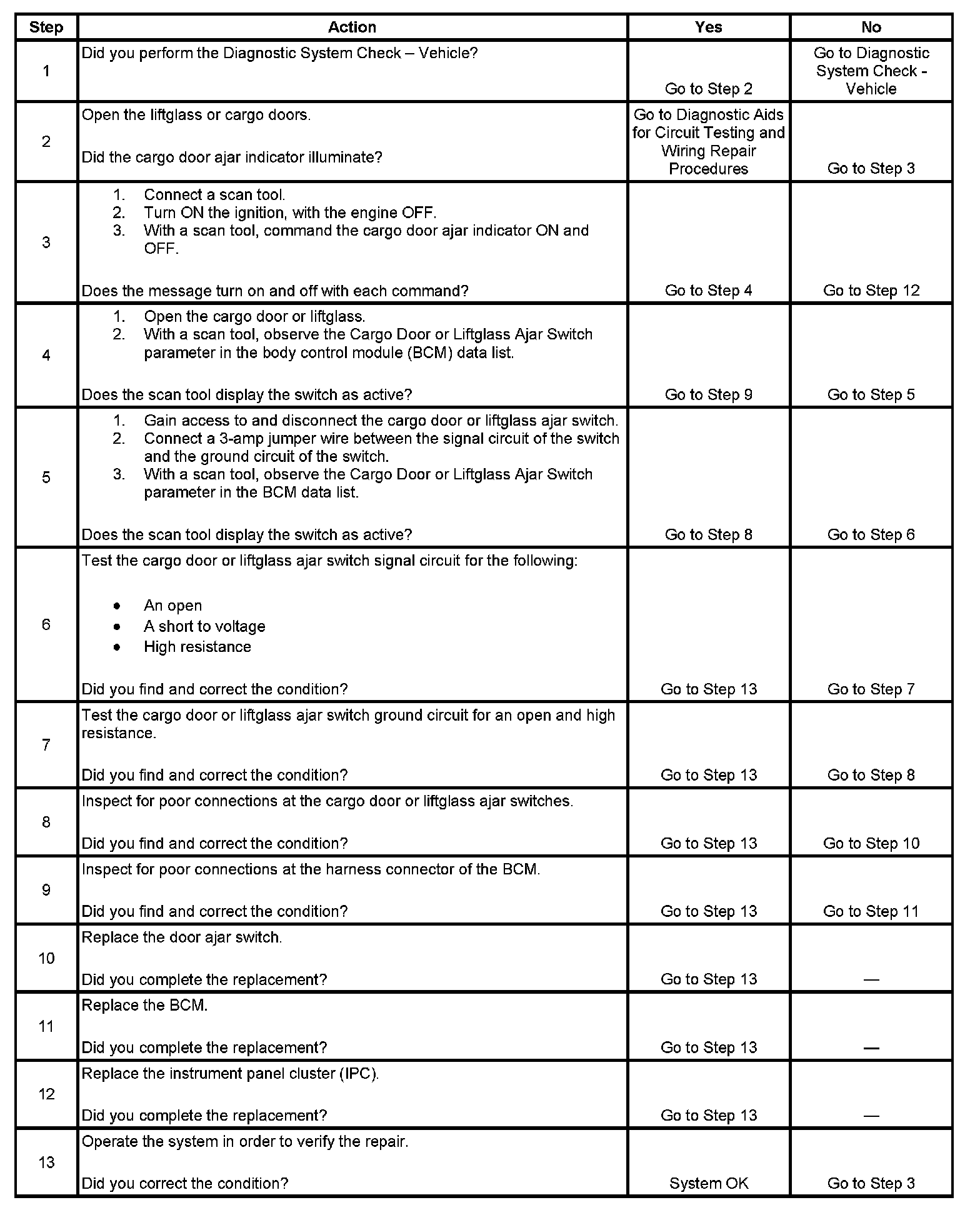

Step 1 - Step 13:
