Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Locations >> Liftgate (With RPO Code E52)

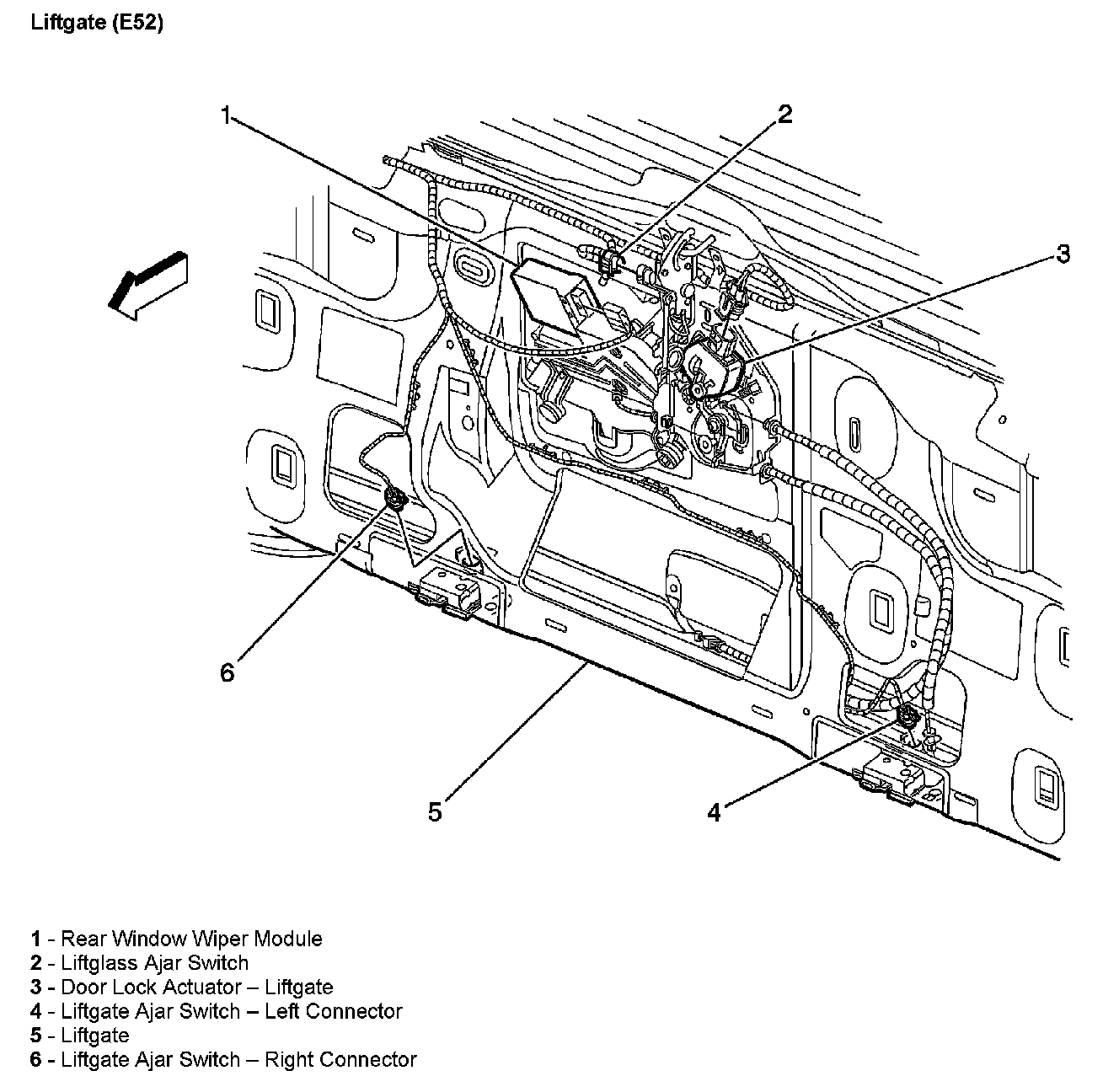

Liftgate (With RPO Code E52)

Liftgate (With RPO Code E52):
